quick start proceDure

Connect DC1718 to a DC590 USB Serial Controller using
the supplied 14 conductor ribbon cable. Connect DC590
to host PC with a standard USB A/B cable. Run the evalu-
ation software supplied with DC590 or downloaded from
http://www.linear.com/software. The correct program will
be loaded automatically. Click the COLLECT button to start
2
reading the input voltage. Details on software features are
documented in the control panel's help menu.
Tools are available for logging data, changing reference
voltage, changing the number of points in the strip chart
and histogram, and changing the number of points aver-
aged for the DVM display.

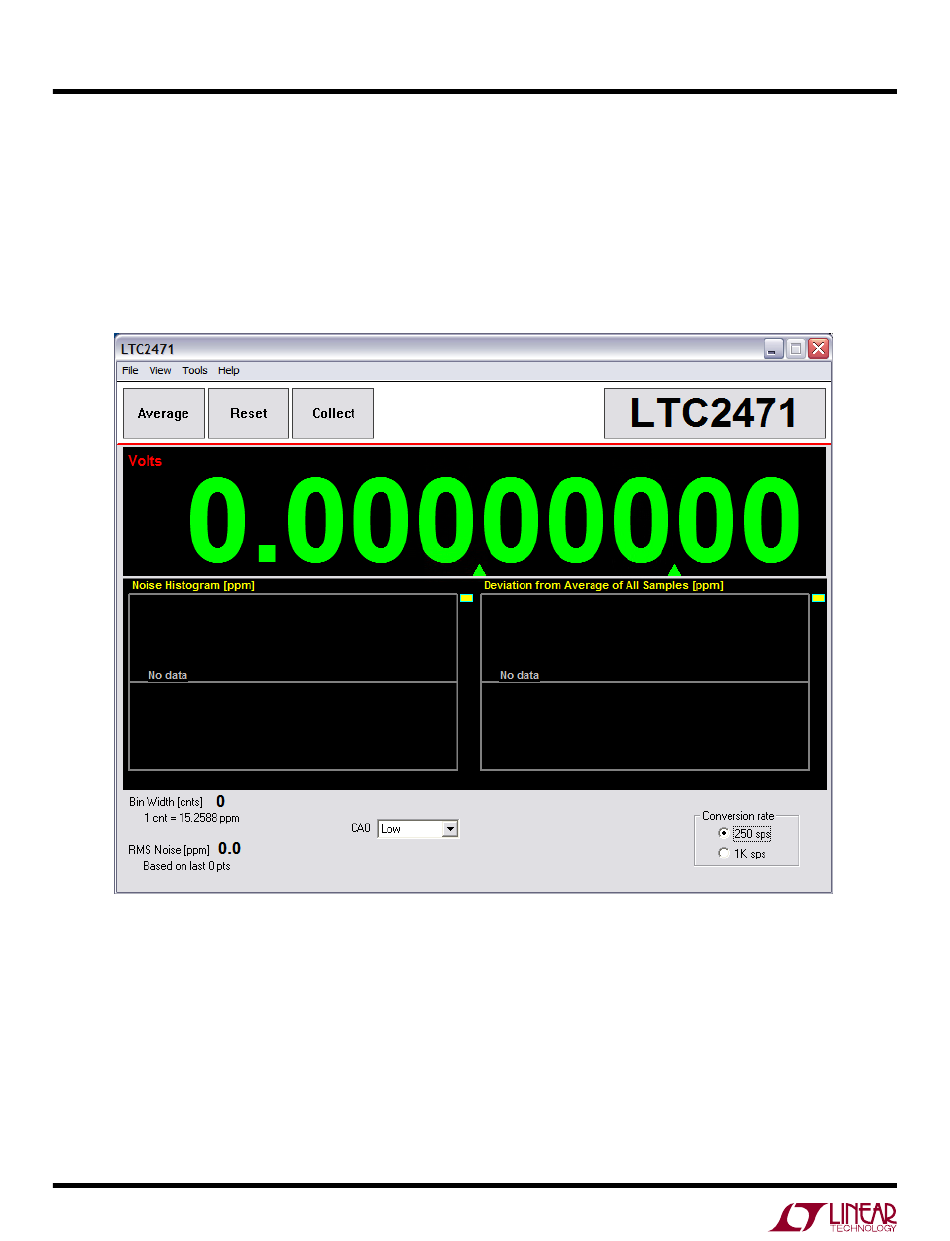

Figure 2. Software Screenshot
