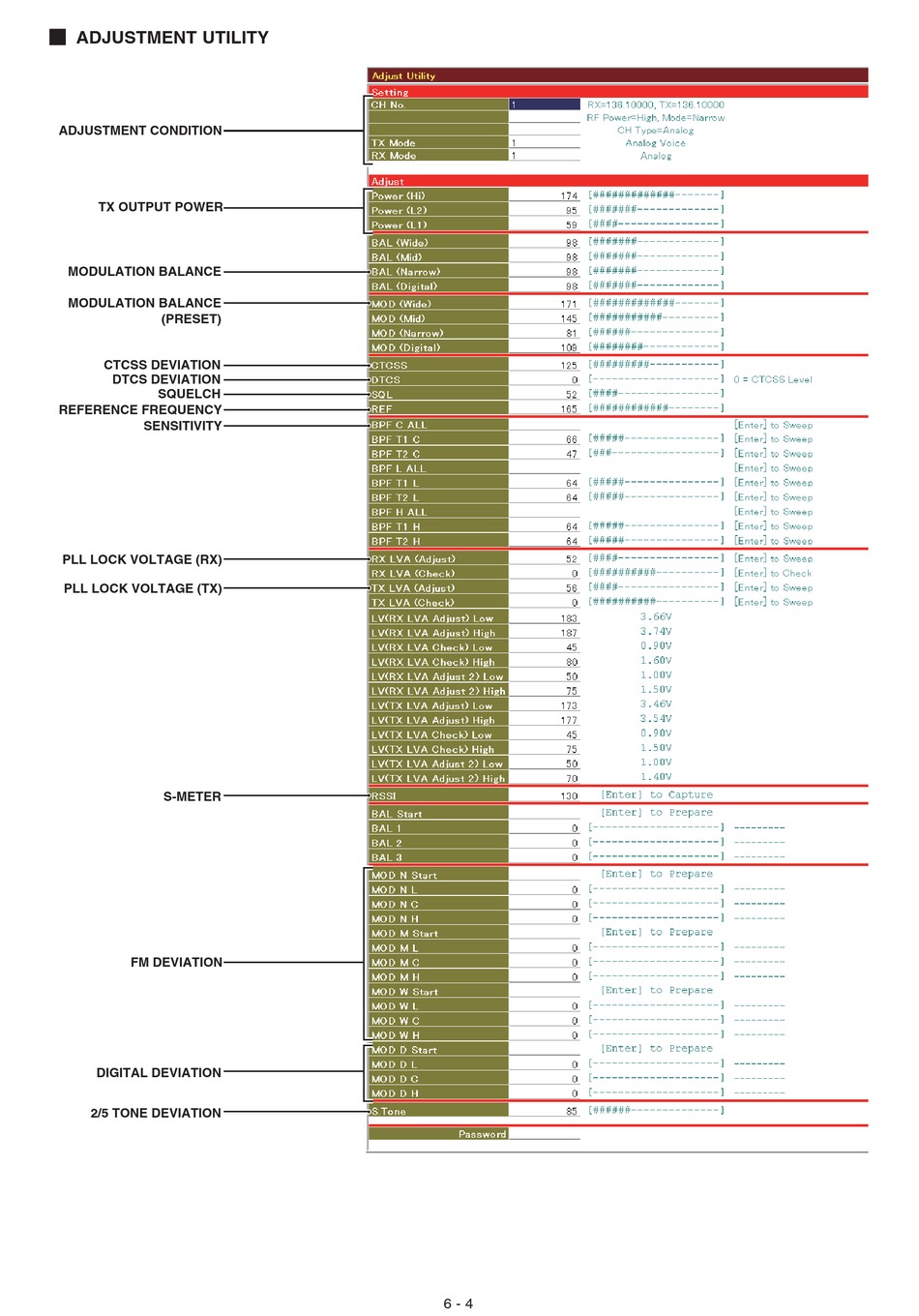

M ADJUSTMENT UTILITY

ADJUSTMENT CONDITION

TX OUTPUT POWER

MODULATION BALANCE

MODULATION BALANCE

(PRESET)

CTCSS DEVIATION

DTCS DEVIATION

SQUELCH

REFERENCE FREQUENCY

SENSITIVITY

PLL LOCK VOLTAGE (RX)

PLL LOCK VOLTAGE (TX)

S-METER

FM DEVIATION

DIGITAL DEVIATION

2/5 TONE DEVIATION

6 - 4
