Summary of Contents for Atlas fan company Patricia-5

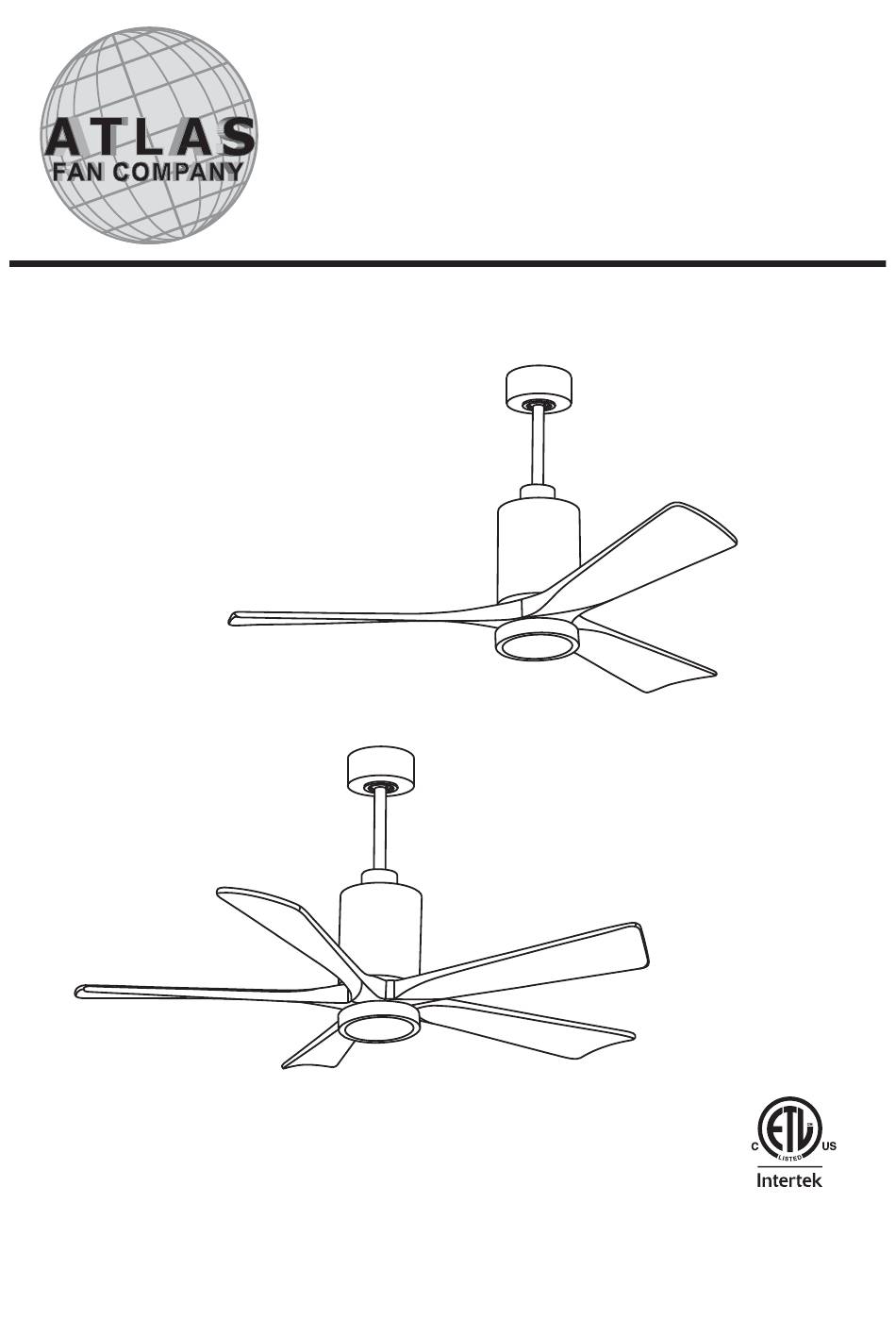

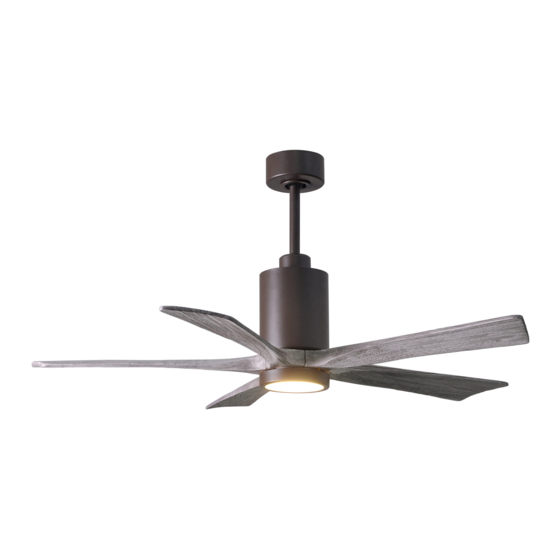

- Page 1 60", 52" or 42" CEILING FAN READ AND SAVE THESE INSTRUCTIONS Patricia-3 Patricia-5 FAN RATING AC 120V. 60Hz FOR DAMP LOCATION Please do not use any electric or battery powered tools in the assembly and installation of this or any Matthews Fan Company product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required..................Package Contents ......................Safety Rules........................Mounting Options......................Hanging the Fan ......................Make the Electric Connections..................Finishing the Installation....................Attaching the Fan Blades....................Attaching the Mounting Plate..................Installing the Light Kit..................... Programming Your Fan and Operating the Remote Control and Wall Control.... Operating Your Fan...................... -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a-1. Blade set (3) (for PA3-CR) a-2. Blade set (5) (for PA5-CR) Hanger bracket assembly Ball / down rod assembly Coupling cover... -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 6: Hanging The Fan
5. HANGING THE FAN Ceiling hanger REMEMBER to turn off the power. Follow the bracket steps below to hang your fan properly. Ceiling canopy 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover 2. -
Page 7: Make The Electric Connections
6. MAKE THE ELECTRIC CONNECTIONS Outlet box White ("AC IN N") NOTE: Your fan has included as standard equipment two types of controls: a hand held Green or bare Black ("AC IN L") copper (ground) remote control and a wall mounted wall control. You may use both as long as the dip switches Ground (green) Black (motor) - Page 8 B. Wall mount remote control SUPPLY CIRCUIT a. Wall control wire connection Ground Conductor 1. Connect the wall control supply (black) wire to the black household supply wire as shown in BLACK BLACK Ceiling Figure 10. Outlet Box Green Ground BLACK BLACK 2.
-
Page 9: Finishing The Installation
7. FINISHING THE INSTALLATION Outlet box Hanger STANDARD CEILING INSTALLATION bracket Screws 1. Tuck connections neatly into ceiling outlet box. Canopy 2. Slide the canopy up to hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 10: Attaching The Fan Blades
8. ATTACHING THE FAN BLADES 1. Fasten blade to motor using the flat washers, lock washers and screws supplied. (Fig. 14) 2. Repeat process with other blades. Tighten each screw and make sure the blade is straight. NOTE: This fan is supplied with two types of blades for installation. -
Page 11: Attaching The Mounting Plate
9. ATTACHING THE MOUNTING PLATE Step 1. Remove 1 of the 3 screws from the mounting ring and keep it for future use. Loosen the other 2 screws. (Do not remove) Step 2. Place the key holes on the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 12: Programming Your Fan And Operating The Remote Control And Wall Control
11. PROGRAMMING YOUR FAN AND OPERATING THE REMOTE CONTROL AND WALL CONTROL Before programming takes place, fan must be fully assembled and mounted to the ceiling with blades attached. You must also choose which control you will be using for programming the fan, the remote ON ECE or the wall control. -
Page 13: Operating Your Fan
NOTE: If the self calibration test failed, turn the AC power off; restore power and process the self calibration test again. NOTE: During self calibration test, the remote and the wall control are non-functional. NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when the AC power is shut off. -
Page 14: Care Of Your Fan
13 CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. - Page 15 LIMITED LIFETIME WARRANTY MATTHEWS-GERBAR, LTD. DBA MATTHEWS FAN COMPANY LIFETIME LIMITED WARRANTY. Ceiling fans are warranted by Matthews-Gerbar, Ltd. to the original user against defects in workmanship or materials under normal use and inside installation for: Motors: Lifetime of original purchaser: Labor & Component parts: (lights, finish, blades, etc…): one year after date of purchase, Light Bulbs: no warranty.
