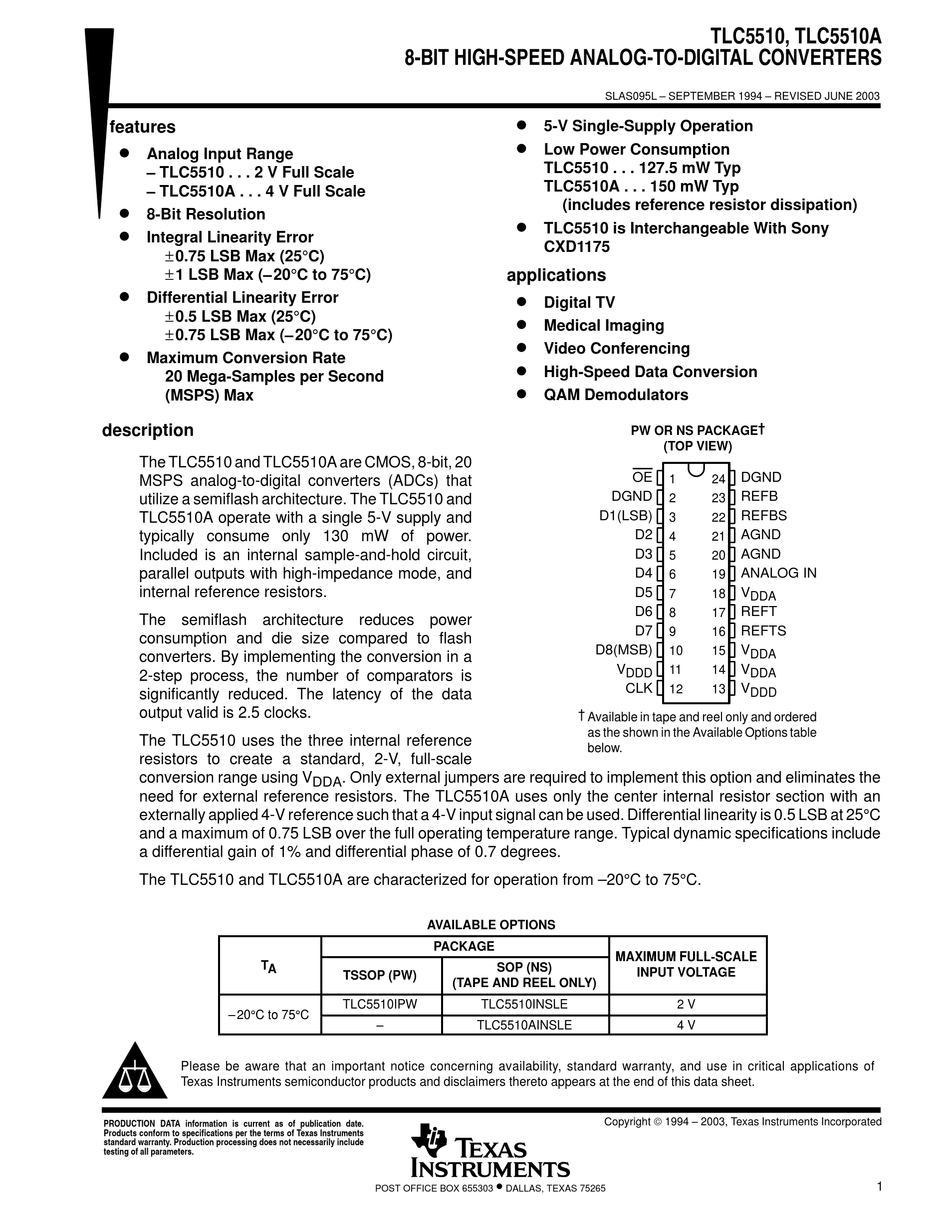

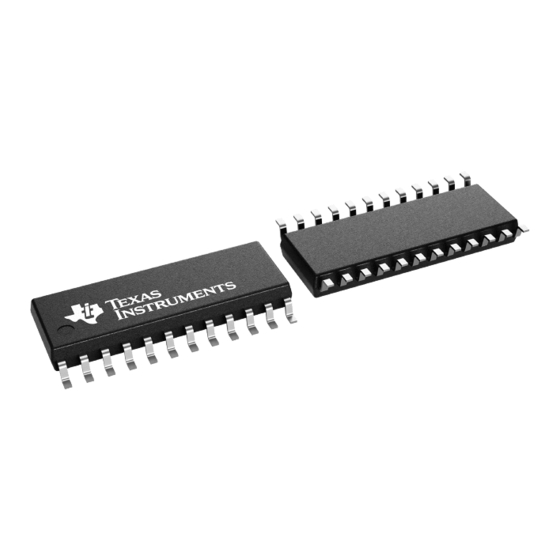

Texas Instruments TLC5510 Manual

features
Analog Input Range
– TLC5510 . . . 2 V Full Scale
– TLC5510A . . . 4 V Full Scale
8-Bit Resolution
Integral Linearity Error
± 0.75 LSB Max (25°C)
± 1 LSB Max (– 20°C to 75°C)
Differential Linearity Error
± 0.5 LSB Max (25°C)
± 0.75 LSB Max (– 20°C to 75°C)
Maximum Conversion Rate
20 Mega-Samples per Second
(MSPS) Max
description
The TLC5510 and TLC5510A are CMOS, 8-bit, 20
MSPS analog-to-digital converters (ADCs) that
utilize a semiflash architecture. The TLC5510 and
TLC5510A operate with a single 5-V supply and
typically consume only 130 mW of power.
Included is an internal sample-and-hold circuit,
parallel outputs with high-impedance mode, and
internal reference resistors.
The semiflash architecture reduces power
consumption and die size compared to flash
converters. By implementing the conversion in a
2-step process, the number of comparators is
significantly reduced. The latency of the data
output valid is 2.5 clocks.
The TLC5510 uses the three internal reference
resistors to create a standard, 2-V, full-scale
conversion range using V
need for external reference resistors. The TLC5510A uses only the center internal resistor section with an
externally applied 4-V reference such that a 4-V input signal can be used. Differential linearity is 0.5 LSB at 25°C
and a maximum of 0.75 LSB over the full operating temperature range. Typical dynamic specifications include
a differential gain of 1% and differential phase of 0.7 degrees.
The TLC5510 and TLC5510A are characterized for operation from –20°C to 75°C.
T A
– 20°C to 75°C 20°C to 75°C
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
8-BIT HIGH-SPEED ANALOG-TO-DIGITAL CONVERTERS
. Only external jumpers are required to implement this option and eliminates the
DDA
AVAILABLE OPTIONS
PACKAGE
TSSOP (PW)
(TAPE AND REEL ONLY)
TLC5510IPW TLC5510INSLE
– TLC5510AINSLE
POST OFFICE BOX 655303
SLAS095L – SEPTEMBER 1994 – REVISED JUNE 2003
5-V Single-Supply Operation
Low Power Consumption
TLC5510 . . . 127.5 mW Typ
TLC5510A . . . 150 mW Typ
(includes reference resistor dissipation)
TLC5510 is Interchangeable With Sony
CXD1175
applications
Digital TV
Medical Imaging
Video Conferencing
High-Speed Data Conversion
QAM Demodulators
PW OR NS PACKAGE †
(TOP VIEW)
OE
1
DGND
2
D1(LSB)
3
D2
4
D3
5
D4
6
D5
7
D6
8
D7
9
D8(MSB)
10
V
11
DDD
CLK
12
† Available in tape and reel only and ordered
as the shown in the Available Options table
below.
MAXIMUM FULL SCALE MAXIMUM FULL-SCALE
SOP (NS)
INPUT VOLTAGE
Copyright  1994 – 2003, Texas Instruments Incorporated
•
DALLAS, TEXAS 75265
TLC5510, TLC5510A
DGND
24
REFB
23
REFBS
22
AGND
21
AGND
20
ANALOG IN
19
V
18
DDA
REFT
17
REFTS
16
V
15
DDA
V
14
DDA
V
13
DDD
2 V
4 V
1
