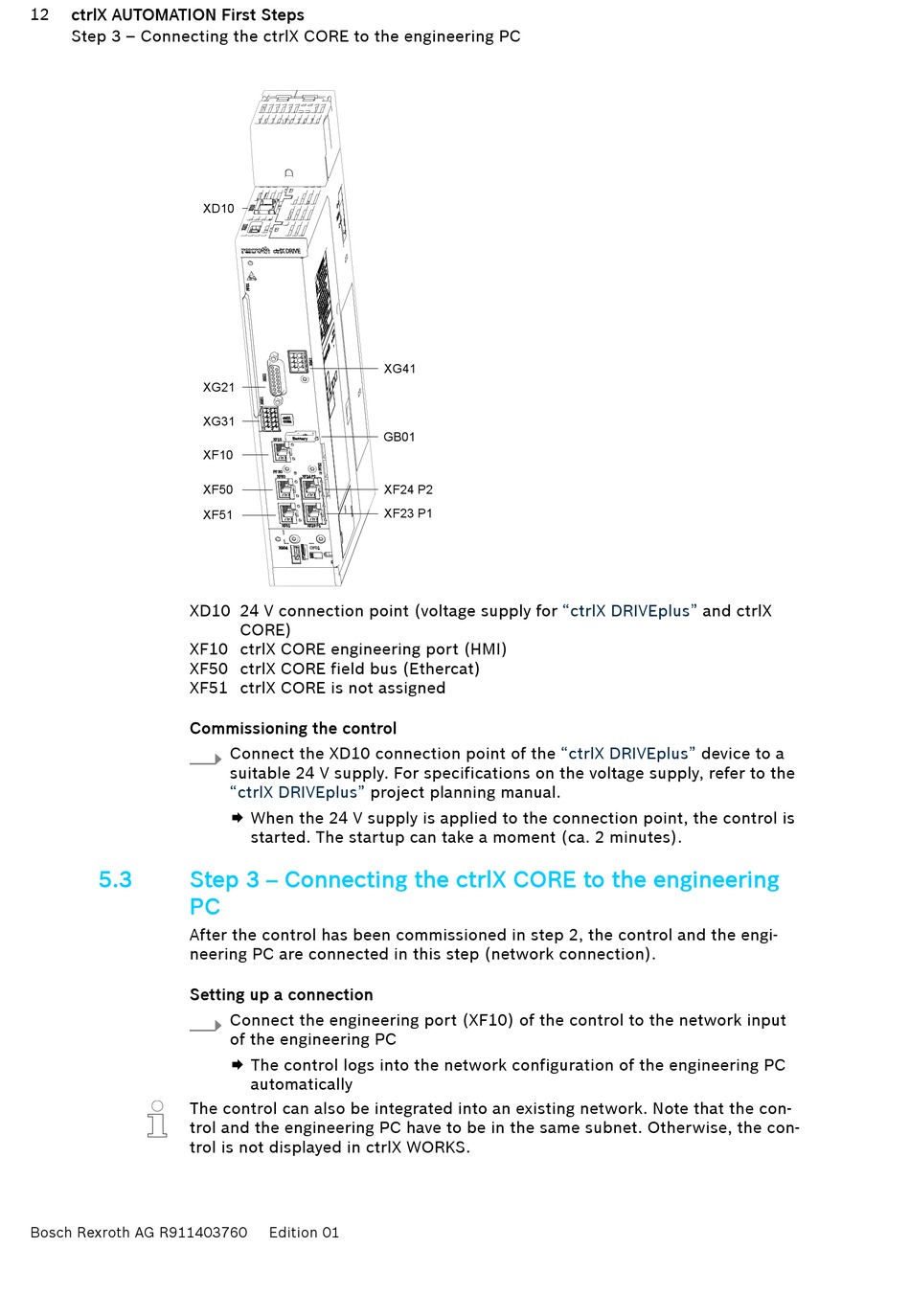

ctrlX AUTOMATION First Steps
Step 3 – Connecting the ctrlX CORE to the engineering PC
XD10 24 V connection point (voltage supply for
XF10 ctrlX CORE engineering port (HMI)
XF50 ctrlX CORE field bus (Ethercat)
XF51 ctrlX CORE is not assigned
Commissioning the control
Step 3 – Connecting the ctrlX CORE to the engineering
5.3
PC
After the control has been commissioned in step 2, the control and the engi-
neering PC are connected in this step (network connection).
Setting up a connection
The control can also be integrated into an existing network. Note that the con-
trol and the engineering PC have to be in the same subnet. Otherwise, the con-
trol is not displayed in ctrlX WORKS.
Bosch Rexroth AG R911403760
XD10
XG21
XG31
XF10
XF50
XF51
CORE)
Connect the XD10 connection point of the
suitable 24 V supply. For specifications on the voltage supply, refer to the
"ctrlX DRIVEplus"
When the 24 V supply is applied to the connection point, the control is
started. The startup can take a moment (ca. 2 minutes).
Connect the engineering port (XF10) of the control to the network input
of the engineering PC
The control logs into the network configuration of the engineering PC
automatically
Edition 01
XG41
GB01
XF24 P2
XF23 P1
project planning manual.
"ctrlX DRIVEplus"
and ctrlX
"ctrlX DRIVEplus"
device to a
