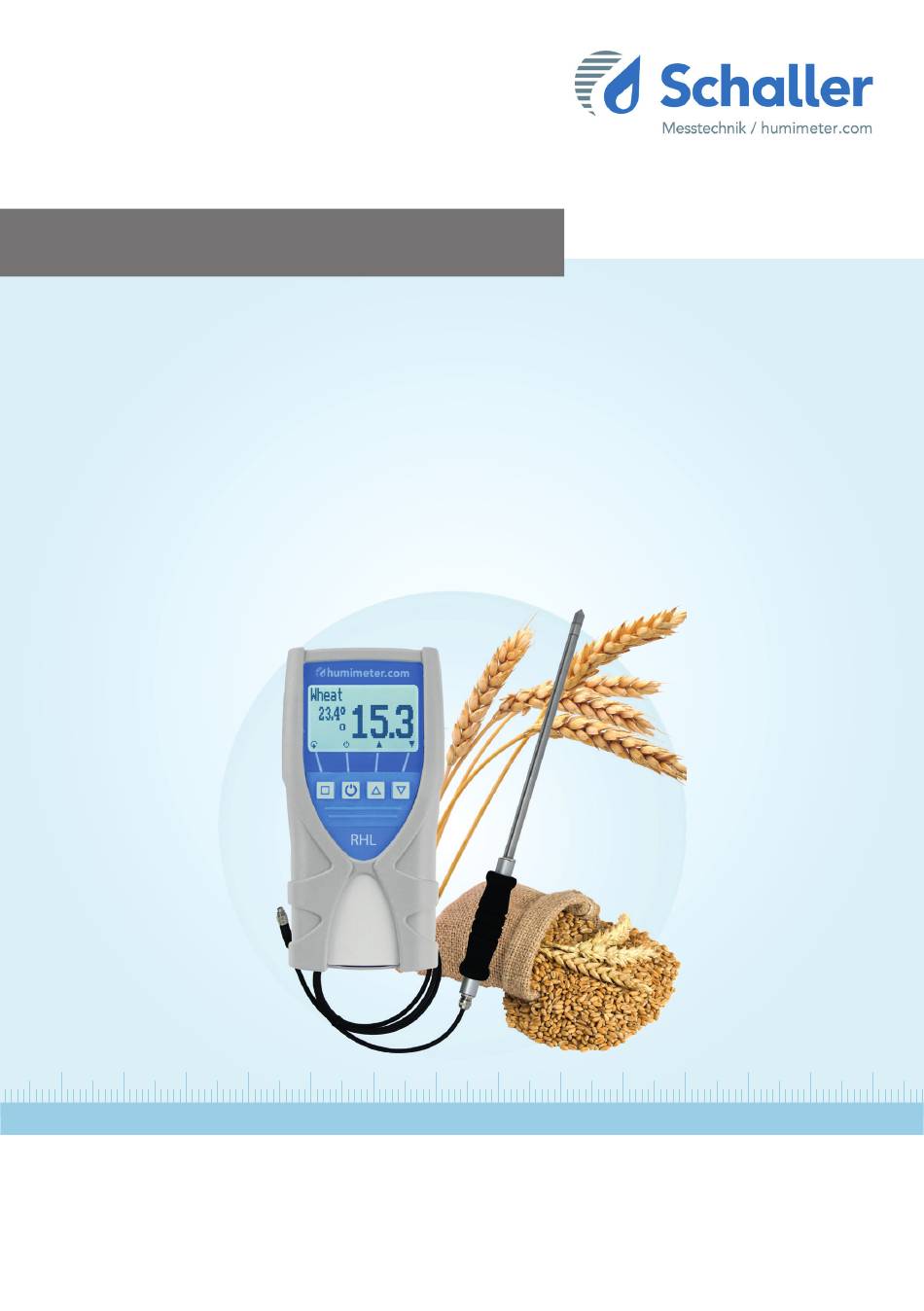

Moisture meter

User manual

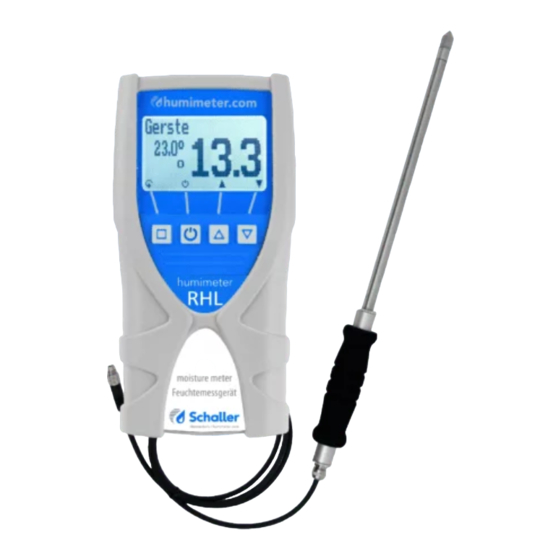

humimeter RHL

Grain moisture meter

for measurements in the grain storage or grain silo

78,0 °F | 6,16 % | 456 kg/m

| -27,3 td | 0,64 aw | 51,9 %r.H. | 14,8 % abs | 100,4 g/m

| 09 m/s | 4,90 Ugl | 1

Always read this user manual before using the humimeter RHL!

Version 1.1

Table of Contents

Need help?

Do you have a question about the RHL and is the answer not in the manual?

Questions and answers

Summary of Contents for Schaller RHL

Page 1 78,0 °F | 6,16 % | 456 kg/m | -27,3 td | 0,64 aw | 51,9 %r.H. | 14,8 % abs | 100,4 g/m | 09 m/s | 4,90 Ugl | 1 Always read this user manual before using the humimeter RHL! Version 1.1...
Page 2: Overview Of Your Humimeter Rhl
RHL grain moisture meter with data log user manual Overview of your humimeter RHL Overview basic unit Name Connection for sensors USB interface (optional) Display Keypad Rubber protection Page 2...
Page 3: Overview Back Side
Overview back side Name Battery case Overview external sensor Name Sensor connector Sensor head with removable cap Handle Page 3...
Page 4: Overview Display
RHL grain moisture meter with data log user manual Measurement Measuring range Resolution aw value 0 to 1 0.001 aw rel. humidity 0 to 100 % RH 0.1 % abs. humidity 0 to 130 g/m³ 0.1 g/m³ grain moisture 10 to 18 % WC 0.1 %...
Page 5: Overview Menus
Enter numbers Enter data Enter letters View measurements Forward / Right Delete measurements Left On/Off display light Save measured value Save Auto Log Hold function Overview menus The device has three different menus: product selection, Data Log and main menu: Product selection Name Change menu...
Page 6 RHL grain moisture meter with data log user manual Data Log menu Name Change menu Turn on display light/ turn off device Save measurements View last saved measurements Main menu The main menu includes the following menu items: • Data Log: Manual Logs, Auto Logs, Clear Logs •...
Page 7: Table Of Contents
Inhaltsverzeichnis Overview of your humimeter RHL �� 2 Overview basic unit ....................2 Overview back side ....................3 Overview external sensor ..................3 Overview display ...................... 4 Overview display symbols ..................4 Overview menus ...................... 5 1� Introduction �� 11 Information on this user manual ............
Page 8 RHL grain moisture meter with data log user manual Performing a measurement ..............17 Turning off the device ................17 5� Measurement �� 18 Preparing a measurement ..............18 Performing a measurement ..............18 Adjustment behaviour of the sensor ............20 6�...
Page 9 9� Checking the device’s status �� 37 10. Configuring the device �� 38 10.1 Bluetooth settings ................. 38 10.2 Set date/time ..................38 10.3 Setting the emission ratio ..............39 10.4 Selecting a language ................39 10.5 Unlock options ..................39 10.6 Lock options ..................
Page 10 RHL grain moisture meter with data log user manual 15� Device information �� 49 15.1 EC declaration of conformity ..............49 15.2 Technical Data ..................53 16� Notes �� 54 Page 10...
Page 11: Introduction
Introduction Information on this user manual This user manual enables safe and efficient use of the RHL humimeter. The user manual is an essential part of the device and must be kept close to the humimeter and be accessible to the user at any time.
Page 12: Symbols Used In This Manual
RHL grain moisture meter with data log user manual Symbols used in this manual All safety instructions in this user manual are identified by symbols. ATTENTION Non-observance can lead to physical damage. Information This symbol indicates important information that enables users to use the de- vice more efficiently and cost effectively.
Page 13: For Your Safety
• The user is responsible to check the media compatibility before using the RHL. If necessary, a consultation with the sales partner or the manufacturer has to made.
Page 14: General Safety Information
RHL grain moisture meter with data log user manual General safety information Follow the safety instructions below to avoid personal injury and material damage: • Remove the batteries from the device if it is not to be used for a prolonged period (4 weeks).
Page 15: First Steps
• Next, make sure that it is not damaged and that no parts are missing. Checking the delivery content Use the following list to check if the delivery is complete: 3.2.1 Scope of supply • humimeter RHL • 4 pieces AA alkaline batteries • Rubber protection • User manual Required accessories: •...
Page 16: Inserting The Batteries
RHL grain moisture meter with data log user manual Inserting the batteries Remove the rubber protection of the device. Pull it off the top of the housing (figure 1 and 2). If the sensor is screwed on, it must be first unscrewed or, in the case...
Page 17: Selecting The Product Type
Selecting the product type To do so: The device has to be in the product selection menu. For an overview of the different product types and the criteria for selecting them, please refer to"7. Product types". Press the or button to move from one pro- duct to the next Press the or...
Page 18: Measurement
RHL grain moisture meter with data log user manual Measurement Preparing a measurement To do so: The device has to have nearly the same temperature as the product being measured. It is recommended to let your humimeter device adjust to the surrounding temperature for at least 30 minutes before the measurement.
Page 19 ATTENTION Injury hazard Risk of injury by the measuring head ► Keep the measuring electrodes away from your body during all activities. ► Keep the measuring electrodes away from other people' bodies during all activities. Information - Measuring accuracy This rapid and non-destructive measuring procedure allows you to quickly take moisture readings at a number of different points.
Page 20: Adjustment Behaviour Of The Sensor
RHL grain moisture meter with data log user manual Adjustment behaviour of the sensor In humidity and temperature measurement, several parameters are responsible for the adjustment behaviour (time until the actual measured value is displayed). The para- meter that can cause the highest measurement error is the temperature difference between the sensors, as well as the entire measuring device, and the material to be measured, or the air.
Page 21: Memory Function
Memory function Hold function - Freezing the displayed values The device can be configured in such a way that the information being shown on the display will freeze at the touch of a button until a new button is pressed. This function can be used if the measured value should remain on the display.
Page 22: Manual Memory Function
RHL grain moisture meter with data log user manual Manual memory function All of the readings can be saved, edited and viewed on the device. The figure below shows the overview screen of a single saved series of measurements.
Page 23 » The setting has been saved. Press to leave the Options menu. Press to leave the main menu. Using the manual save function To do so: The device has to be in the Data Log menu (see "Data Log menu" Seite Press »...
Page 24: Saving Several Readings (Measurement Series)
RHL grain moisture meter with data log user manual 6.2.2 Saving several readings (measurement series) To do so: The device has to be in the Data Log menu (see "Data Log menu" Seite Take several readings (see "5. Measurement").
Page 25: Auto Save Function (Time-Based)
Auto save function (time-based) The device can be configured in such a way that it will automatically save a reading (log) at a selected time interval. 6.3.1 Activating the Auto save function in the Options menu To do so: The device has to be switched on and be in the product selection menu. Press twice or hold for 2 seconds.
Page 26: Viewing Individual Readings
RHL grain moisture meter with data log user manual Add letters: Press and hold to quickly scroll to the required letter and either press it for 3 seconds or press to confirm the selected letter. Add numbers: Press and hold...
Page 27: View Individual Measured Values Of A Measurement Series
View individual measured values of a measurement series To do so: A measurement (e.g. 2 Logs) has been saved. On the display appears Press Navigate to the required measurement by pressing » On the display appears figure 30. Press to switch to another input level. »...
Page 28: Delete Single Measurement Series
RHL grain moisture meter with data log user manual Press to leave the main menu. Delete single measurement series To do so: A measurement (1 Log) or a measurement series (e.g. 3 Logs) has been saved. On the display appears...
Page 29: Deleting Individual Values From A Single Series Of Measurements
Deleting individual values from a single series of measurements To do so: A measurement series with at least 2 logs has been saved. On the display appears Press Navigate to the required measurement by pressing » On the display appears figure 421.
Page 30: Product Types
RHL grain moisture meter with data log user manual Product types The following product types are available: Measuring Product type Definition Unit Calibrated range range Absolute hu- absolute humidity g/m³ 0 to 130 g/m³ midity g/m³ Relative relative humidity...
Page 31: Definition Water Activity
The aw-value is temperature dependent, for an aw-value determination at the desired temperature the instrument and the sample should be pre-stored at this temperature. The humimeter RHL Aw-value measuring device is suitable for measuring materials such as grain products, coffee, cocoa, cereals, butter, dried fruit mixtures, spices, gra- nulates, mushrooms, sugar, xylitol, cookies or even dried sausage as well as many other food products for which a testing of the aw-value is necessary.
Page 32 RHL grain moisture meter with data log user manual The water activity should not be mistaken for the water content - the percentage of water in a product! The water content is used to calculate the dry content of food and materials, it indicates the ratio of water to the total mass as a percentage (kg/kg) x 100.
Page 33: Application Range
Typical sorption isotherms of various foods and materials from the literature: Application range The device functions in the normal application range (normal range) within the specified accuracy. Long-term use outside the normal application range (max. range), especially at humidity above 80 %, can lead to higher measurement deviations (+3 % after 60 h).
Page 34: Using The Logmemorizer Program
Send values to PC To do so: You have installed the LogMemorizer software. One or more measurements have been performed and saved. Option: The transfer of the measured values can be started from the humimeter RHL or from the PC. Page 34...
Page 35 RHL will now be sent to your PC. Initiating the data export at your computer Connect the humimeter RHL to your computer using the supplied USB cable. Insert the USB Mini B connector into the humi- meter RHL (figure 51).
Page 36 Import most recent manual log (for importing the most recent manually saved logs). Name Import all auto save logs Import most recent auto save series Import all manual logs Import most recent manual » The measuring values saved on the humimeter RHL will now be sent to your computer. Page 36...
Page 37: Checking The Device's Status
Checking the device’s status Press twice or hold for 2 seconds. Navigate to Status by pressing and confirm with » On the display appears humimeter. » The display shows the following information (figure 54): Name Serial number Software version Battery status Memory status Confirm with Press...
Page 38: Configuring The Device
RHL grain moisture meter with data log user manual 10. Configuring the device 10.1 Bluetooth settings Bluetooth is described in a separate user manual. 10.2 Set date/time Press twice or hold for 2 seconds. Navigate to Options by pressing...
Page 39: Setting The Emission Ratio
10.3 Setting the emission ratio Press twice or hold for 2 seconds. Navigate to Options by pressing and confirm with Navigate to Emission ratio by pressing and confirm with Overwrite the current emission ratio. Press and hold to quickly scroll to the required number and wait for 3 seconds or press to confirm the selected number.
Page 40: Lock Options
RHL grain moisture meter with data log user manual Press twice or hold for 2 seconds. Navigate to Options by pressing and confirm with Select Unlock by pressing and confirm with On the display appears figure 57. » On delivery, the four-digit password is the serial number of the device.
Page 41: Set °C/°F
10.7 Set °C/°F To do so: All options are activated (see "10.5 Unlock options"). Press twice or hold for 2 seconds. Navigate to Options by pressing and confirm with Navigate to °C/°F by pressing and confirm with Navigate to the preferred temperature scale Celsius(°C) or Fahrenheit (°F) by pressing and confirm with »...
Page 42: Calibrating The Device
RHL grain moisture meter with data log user manual Press twice or hold for 2 seconds. Navigate to Options by pressing and confirm with Navigate to Auto Off Time by pressing and confirm with Navigate to the preferred time for the device to remain on (3 minutes/5 minu- tes/10 minutes) by pressing...
Page 43: Changing The Password
10.12 Changing the password To do so: All options are activated (see "10.5 Unlock options"). Press twice or hold for 2 seconds. Navigate to Options by pressing and confirm with Navigate to Password by pressing and confirm with » On the display appears the current password. Overwrite the current password.
Page 44: Resetting The Device To Its Factory Settings
RHL grain moisture meter with data log user manual 10.13 Resetting the device to its factory settings To do so: All options are activated (see "10.5 Unlock options"). Press twice or hold for 2 seconds. Navigate to Options by pressing...
Page 45: Care Instructions
11.2 Care instructions • Do not leave the device out in the rain. The device is not waterproof. • Do not immerse the sensor into water. • Do not expose the device to extreme temperatures. • Protect the device from strong mechanical shocks and loads. 11.3 Cleaning the device ATTENTION Device damage caused by wet cleaning...
Page 46: Faults
It is also possible to perform the calibration on your own using the calibration ampoules: A manual for the calibration procedure is available on request from Schaller Messtechnik GmbH or your dealer. Open the measuring chamber and clean the glass vessel with plenty of water, the textile pad must be washed out well and can then be discarded.
Page 47 Fault Cause Remedy Measurement error caused by Allow the device to ad- too short adjustment time just to the environment sufficiently long (see "5.3 Adjustment behaviour of sensor"). Wrong product type Before you start a measu- rement, check whether the correct product type is set (see "7.
Page 48: Storage And Disposal
RHL grain moisture meter with data log user manual 14. Storage and disposal 14.1 Storing the device Store the device as follows: • Do not store outdoors. • Store dry and dust-free. • Protect from sunlight. • Avoid mechanical shocks and impacts.
Page 49: Device Information
A – 8181 St. Ruprecht Produktbezeichnung: humimeter Product designation: Typenbezeichnung: RH1 ; RH2 ; RH2 AW ; RH5 ; RH5.1 ; RH5.2 ; RH6 ; RHL ; Type designation: Produktbeschreibung: Messgerät zur Bestimmung der rel.Feuchte und abgeleiteter Messgrößen Measuring instrument for determining relative humidity...
Page 50 RHL grain moisture meter with data log user manual Für das angeführte Produkt ist eine vollständige Dokumentation mit Betriebsanleitung in Originalfassung vorhanden. For the mentioned product a complete documentation with manual of instruction in original version is available. Bei Änderungen, die nicht vom Hersteller spezifiziert sind, verliert diese Konformitätserklärung die Gültigkeit.
Page 51 A – 8181 St. Ruprecht Product designation: humimeter Type designation: RH1 ; RH2 ; RH2 AW ; RH5 ; RH5.1 ; RH5.2 ; RH6 ; RHL ; Measuring instrument for determining relative humidity Product description and derived measured variables The designated product is in conformity with the following directives: Electromagnetic Compatibility Regulations 2016 Great Britain •...
Page 52 RHL grain moisture meter with data log user manual For the mentioned product, a complete documentation with manual of instruction in original version is available. In case of any changes not agreed upon with the manufacturer, this declaration of conformity loses its validity.
Page 53: Technical Data
15.2 Technical Data Display resolution 0.1 g/m abs. humidity, 0.1 % rel. humidity, 0.1 °C/ 0.3 °F temperature, 0.1 % equilibrium moisture of grain, 0.001 aw Measuring range 0 % to 100 % RH rel. humidity Calibration rel. humidity 10 % to 90 % RH Measuring range dew point -55 °C to +60 °C Measuring range grain...
Page 54: Notes
RHL grain moisture meter with data log user manual 16. Notes Page 54...
Page 55 Page 55...
Page 56 Schaller Messtechnik develops, produces and sells professional moisture meters and turnkey solutions. Schaller Messtechnik GmbH Max-Schaller-Straße 99, A - 8181 St. Ruprecht an der Raab Tel +43 (0)3178 - 28899 , Fax +43 (0)3178 - 28899 - 901 info@humimeter.com, www.humimeter.com...
