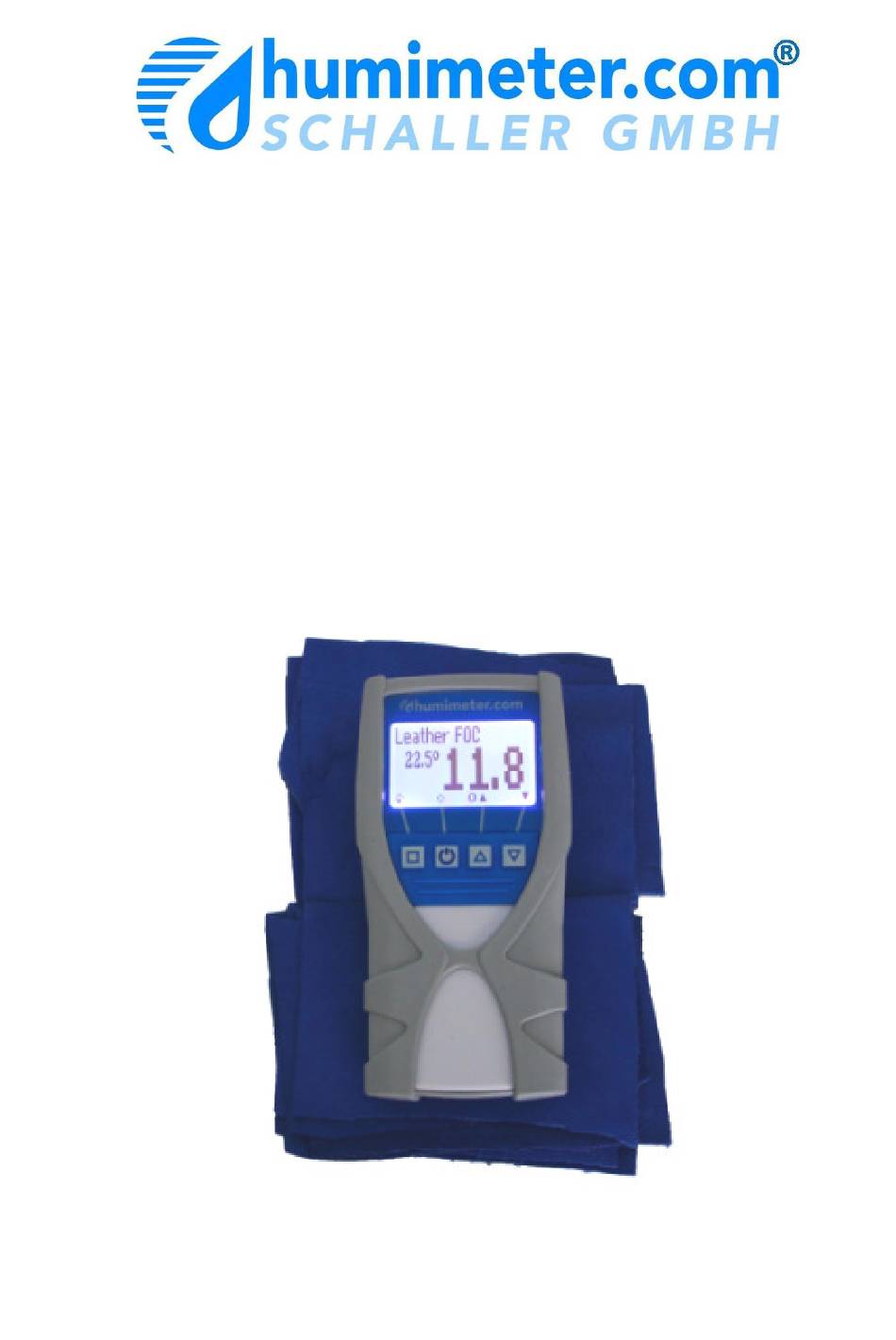

- Page 1 User manual leather moisture meter Version 2.2_en © Schaller GmbH 2012...
-
Page 2: Measuring Procedure
Operation and handling: Switching on: Press the button for 3 seconds. Changing the calibration curve: key. Switching on the display lighting: Press the button briefly; the lighting switches off automatically after approx. 20 seconds. Pressing any key activates the lighting again and prolongs the switch-off time to 4 minutes. Switching off: Press the key for 5 seconds;... - Page 3 Selection of calibration curves Due to different manufacturing methods and different densities of the leather there is no standardised allocation of calibration curves. In the above list of calibration curves you can find information regarding manufacturing methods and density that enables a preselection of the calibration curve.
- Page 4 Design of the device calibration curve measuring value temperature measuring value moisture rolling menu resp. hold key ON / OFF button changing calibration curve rubber protective housing batteries slot (flipside) page 4 Version 2.2_en...
-
Page 5: Main Menu
Menu There are 3 menu levels. Main menu The symbols show the key functions in Edit logs the different menus. Manual logs 1. Type selection : Clear logs 2. Saving : Print logs 3. Main menu Last logs Rolling menu: Use this key to enter the different menu levels and main menu. -
Page 6: Changing The Batteries
How often you need to check the instrument depends on the use and the required level of accuracy in your field of operation. For a fee, Messtechnik Schaller GmbH can also carry out a calibration at their factory. In this case you will also receive a calibration certificate. - Page 7 Checking the calibration We recommend to check the calibration of the humimeter LM6 every 4 weeks, using the proof plate delivered with the device. For this check the device has to show a temperature between 18,0 and 24,0° C. Switch on the instrument and select the calibration curve „reference“...
-
Page 8: Technical Data
Technical data Measuring depth 5 mm Minimum material thickness 10 mm Measuring range 3% to 65% water content Temperature measuring range -10° C to +50° C Resolution 0.1% water content ; 0.5 ° C Operation temperature range 0° C to +40° C Storage temperature -20°...
