6

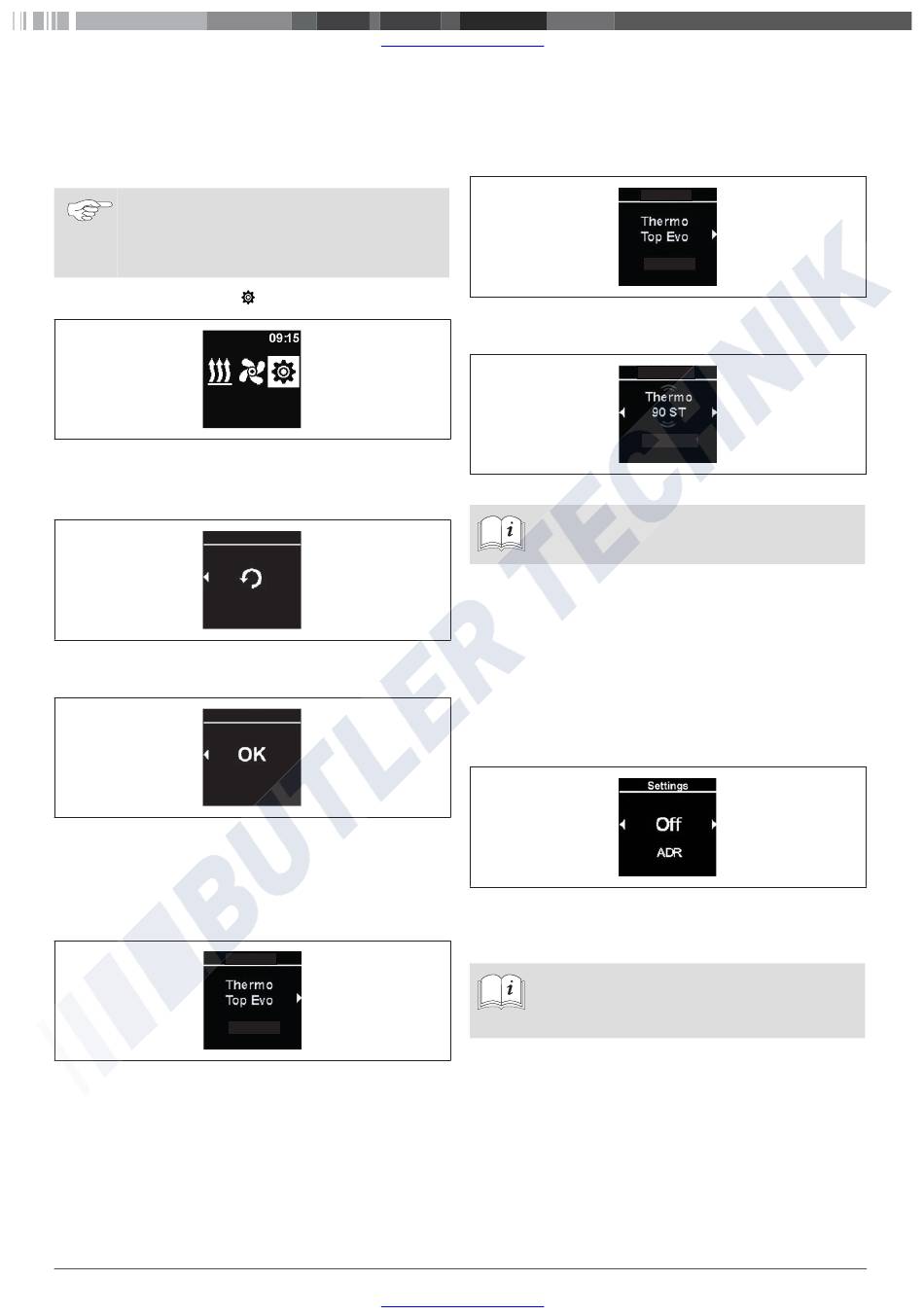

Service menu

6.1

Bringing up the Service menu

On initial start-up
As for reset option, all settings are restored to
factory settings (standard settings are configured
by a service technician) except a day of a week and
an hour.
Select the "Settings" symbol
X X
Fig. 08: "Settings" menu element
Press the control knob.
X X
Select the "Reset" menu element.
X X
Fig. 09: "Reset" menu element
Press the control knob.
X X
Fig. 10: "Confirm reset" menu element
Press the control knob again to confirm the menu selection.
X X
Immediately press the control knob and quick start
X X
button simultaneously for 3 seconds.
The Service menu is shown.
X X
Fig. 11: "Heater" menu element
Rotate the control knob clockwise to select the menu elements.
UniControl
www.butlertechnik.com
from the main menu.
Settings
Settings
Reset
Settings
Reset
Settings
Heater
www.butlertechnik.com
6.2

Manual heater selection

Bring up the Service menu.
X X
Fig. 12: "Heater" menu element
Press the control knob.
X X
Settings
Fig. 13: "Heater" menu element, example Thermo 90 ST
Information on selecting the appropriate heater can
be founded in the table in the supplementary sheet.
Rotate the control knob and select the installed heater.
X X
Press the control knob; the heater has been selected.
X X
Rotate the control knob counterclockwise and select "Back".
X X
Press the control knob.
X X
6.3

Select ADR function

Bring up the Service menu.
X X
Rotate the control knob clockwise.
X X
Select the "ADR" menu element.
X X
Fig. 14: "ADR" menu element
Press the control knob (select ADR "On" or "Off")
X X
Rotate the control knob counterclockwise and select "Back".
"Off": UniControl with timer function (factory
setting)
"On": UniControl has no timer function.
Settings
Heater
Heater
