VERSION # 21-01-07
1 / 1 4

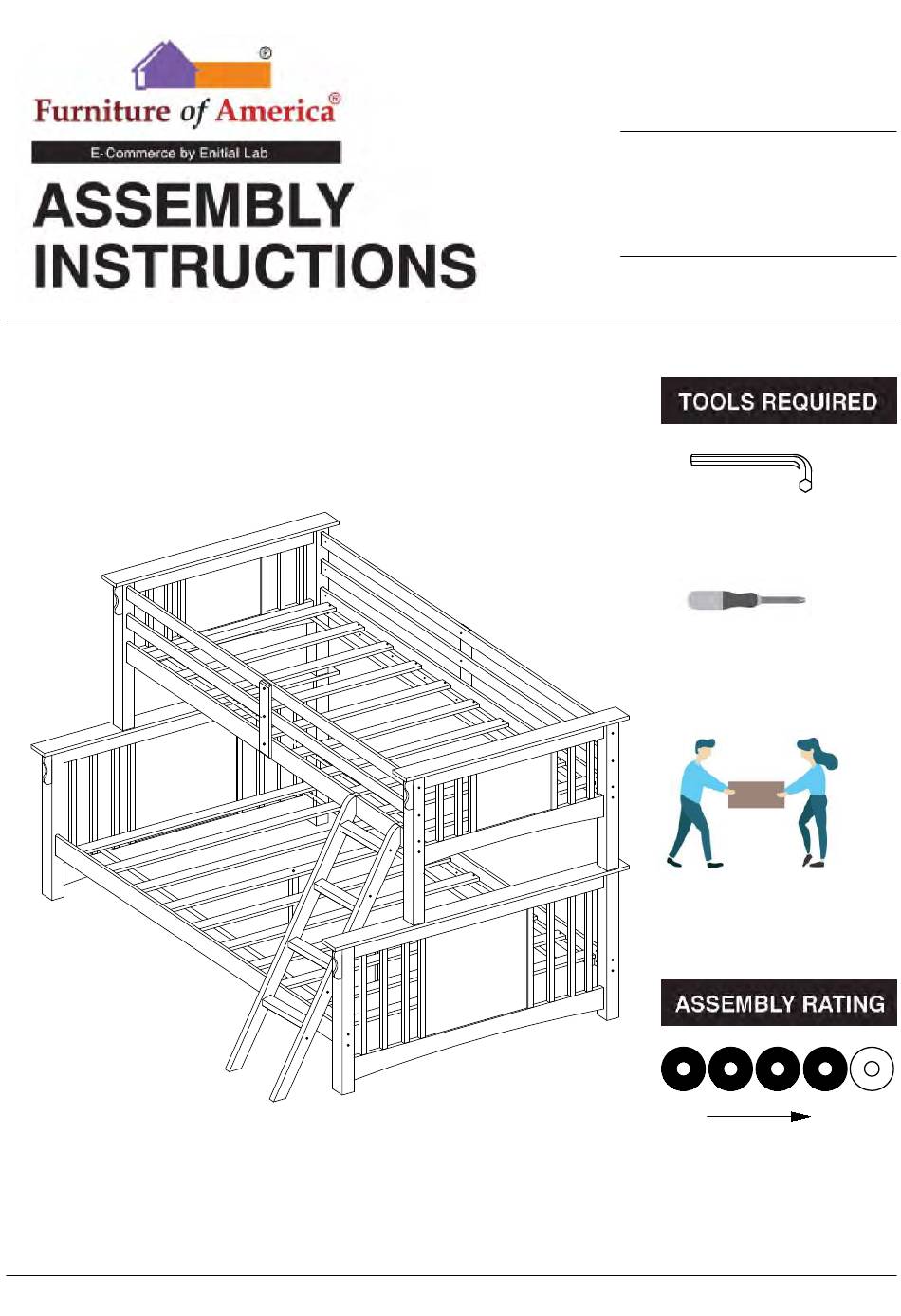

MODEL #
CM-BK602F
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Spring Creek CMBK602FOAK
Summary of Contents for Furniture of America Spring Creek CMBK602FOAK
- Page 1 MODEL # CM-BK602F Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 4...
- Page 5 DAYBED CM-BK602F #1 1pc #2 1pc #3 2pcs #4 2pcs Lower Headboard (L) Lower Headboard (R) Upper Headboard/Footboard Lower Side Rail #5 2pcs #6 4pcs #7 1set #8 2 set Twin Slat Kit Guardrail Full Slat Kit Upper Side Rail #9 2pcs #10 2pcs #11 4pcs...
- Page 6 #A 24pcs #B 24pcs #C 2pcs #D 40pcs Bolt Barrel Nut Screw Screw Ø1/4" x 4-7/8" Ø1/4" x 1/2" #4x40mm #4x30mm #E 6pcs #F 4pcs #G 8pcs #H 2pcs Bolt Metal Dowel Screw Screw Ø1/4" x 1-3/16" Ø 3/16 " x 2" #4x20mm Ø9 x 90mm #I 1pc...
-
Page 7: Exploded View
Exploded View 7 / 1 4... - Page 8 CM-BK602F is packed in 2 cases Carton Disignation Part Hardware Lower Headboard (L) CM-BK602F-1 Lower Headboard (R) Upper Headboard/Footboard #Ax24pcs Lower Side Rail #Bx24pcs #Cx2pcs Upper Side Rail #Dx40pcs #Ex6pcs #Fx4pcs Guardrail #Gx8pcs #Hx2pcs Full Slat Kit #Ix1pc Twin Slat Kit CM-BK602F-2 Support Leg Guardrail Support...
- Page 9 ASSEMBLY INSTRUCTIONS Align side rails (#4) to the lower headboards (#1,2), then secure by using bolts (#A) onto barrel nuts (#B). Part #1 x 1pc Part #2 x 1pc Part #4 x 2pcs Hardware #A x 8pcs Hardware #B x 8pcs Align slats (#7) to the lower bunk, then secure by using screws (#D).
- Page 10 ASSEMBLY INSTRUCTIONS Align support leg (#9) to the slats (#7), then secure by using screws (#C). Part #9 x 2pcs Hardware #C x 2pcs Part #3 x 2pcs Part #5 x 2pcs Align guardrails (#6) and side rails (#5) to the upper Part #6 x 4pcs headboards (#3), then secure by using bolts (#A) onto...
- Page 11 ASSEMBLY INSTRUCTIONS Part #10 x 2pcs Hardware #E x 6pcs Align guardrail supports (#10) to the guardrails (#6) and side rails (#5), then secure by using bolts (#E). P art #8 x 2set Align slats (#8) to the upper Hardware #D x 20pcs bunk, then secure by using screws (#D).
- Page 12 ASSEMBLY INSTRUCTIONS Hardware #F x 4pcs Insert dowels (#F) onto the lower bunk, then carefully place the upper bunk on top of lower bunk. Part #11 x 4pcs Part #12 x 1pc Align ladder rungs (#11) to the ladder rails (#12,13), then secure by using screws (#G).
- Page 13 ASSEMBLY INSTRUCTIONS Align ladder to bunk bed, then secure by using screws (#H). Hardware #H x 2pcs 13 / 14...
- Page 14 1 4 / 1 4...
