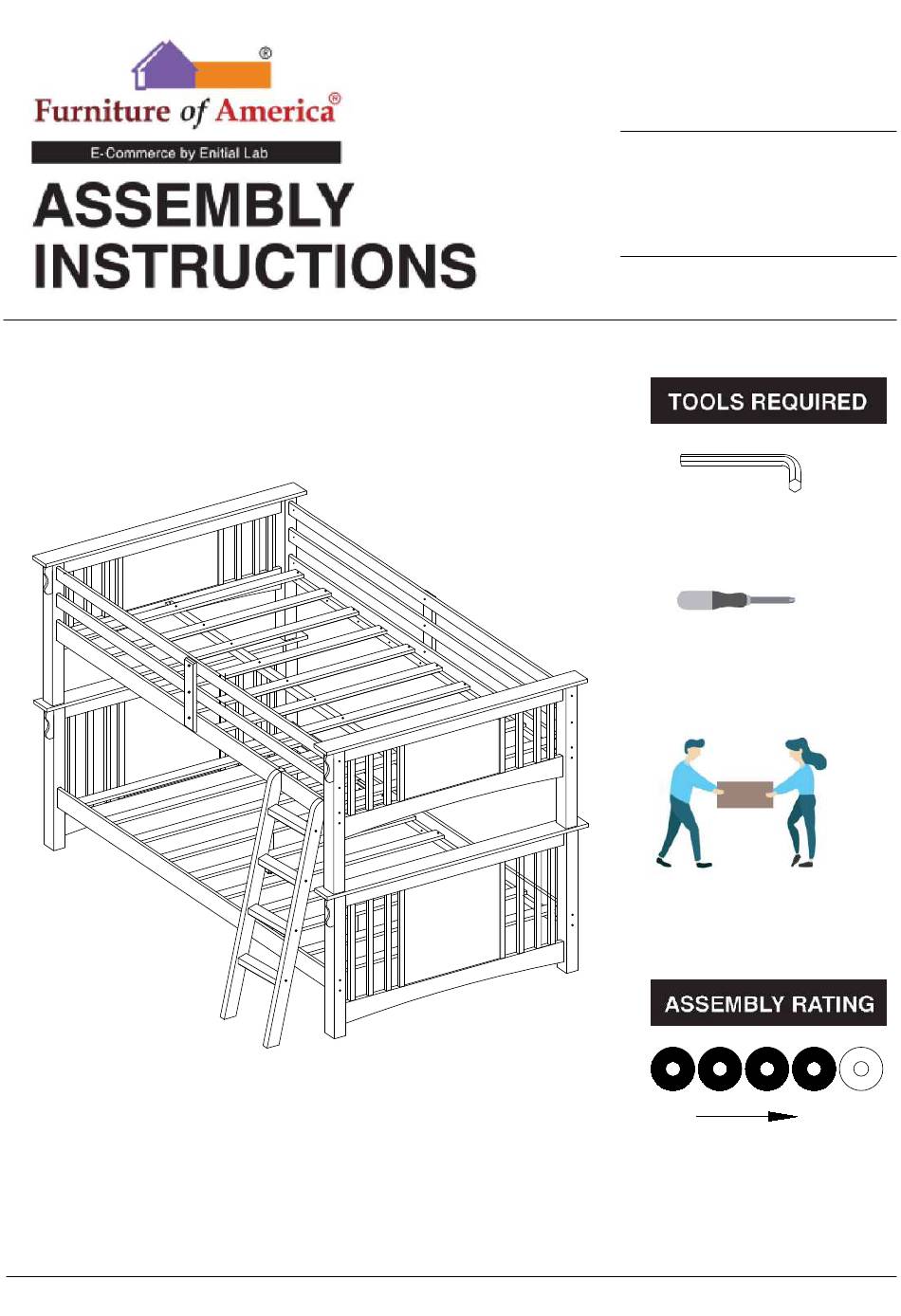

VERSION # 21-03-16
1 / 14
MODEL #
CM-BK603
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK603
Summary of Contents for Furniture of America CM-BK603
- Page 1 MODEL # CM-BK603 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 4...
- Page 5 DAYBED CM-BK603 #1 2pcs #2 2pcs #3 2pcs #4 2pcs Upper End Guardrail Lower End Guardrail Lower End Guardail Upper End Guardail Lower Side Rail Upper Side Rail #5 4pcs #6 1set #7 8pcs #8 2pcs Support Leg Guardrail Full Slat Kit...
-
Page 6: Metal Dowel
#D 6pcs #A 24pcs #B 24pcs #C 52pcs Bolt Barrel Nut Screw Bolt Ø1/4" x 4-7/8" Ø1/4" x 1/2" #4x30mm Ø1/4"x 1-3/16" #H 2pcs #E 8pcs #F 2pcs #G 4pcs Screw Screw Screw Metal Dowel #4x20mm #4x40mm ɸ 9*90mm Ø3/16'' x 2'' #I 1pc #J 6pcs Allen Wrench 4mm... -
Page 7: Exploded View
Exploded View 7 / 14... - Page 8 CM-BK603 is packed in 2 cases Carton Disignation Part Hardware Lower End Guardrail CM-BK603-1 Upper End Guardrail #Ax24pcs Lower Side Rail #B x24pcs #Cx52pcs Upper Side Rail #Dx6pcs #Ex8pcs Guardrail #Fx2pcs #Gx4pcs Full Slat Kit #Hx2pcs #Ix1pc Full Slat Kit...
- Page 9 ASSEMBLY INSTRUCTIONS Align lower side rails (#3) to the lower end guardrails (#1), then secure by using bolts (#A) onto barrel nuts (#B). Part #1 x 2pcs Part #3 x 2pcs Hardware #A x 8pcs Hardware #B x 8pcs Part #6 x 1set Hardware #C x 20pcs...
- Page 10 ASSEMBLY INSTRUCTIONS Align support legs (#8) to the slats (#6), then secure by using screws (#F). Hardware #F x 2pcs Align upper side rails (#4) and guardrails (#5) to the Part #2 x 2pcs upper end guardrails (#2), Part #4 x 2pcs then secure by using bolts Part #5 x 4pcs...
- Page 11 ASSEMBLY INSTRUCTIONS Align center support (#9) to the upper end guardrails (#2), then secure by using screws (#C). Part #9 x 1pc Part #10 x 2pcs Hardware #C x 2pcs Hardware #D x 6pcs Hardware #J x 6pcs Align guardrails supports (#10) to the guardrails and upper side rails, then secure by using bolts (#D) with hex cap (#J)
- Page 12 ASSEMBLY INSTRUCTIONS Insert metal dowels (#G) to the lower bunk, then align upper bunk Hardware #G x 4pcs to lower bunk. Part #11 x 4pcs Part #12 x 1pc Part #13 x 1pc Hardware #E x 8pcs Align ladder steps (#11) to the ladder rails (#12,13), then secure by using screws (#E).
- Page 13 ASSEMBLY INSTRUCTIONS Hardware #H x 2pcs Align ladder to the upper bunk, then secure by using screws (#H). 13 / 14...
- Page 14 14 / 14...
