Summary of Contents for Furniture of America CM-BK601

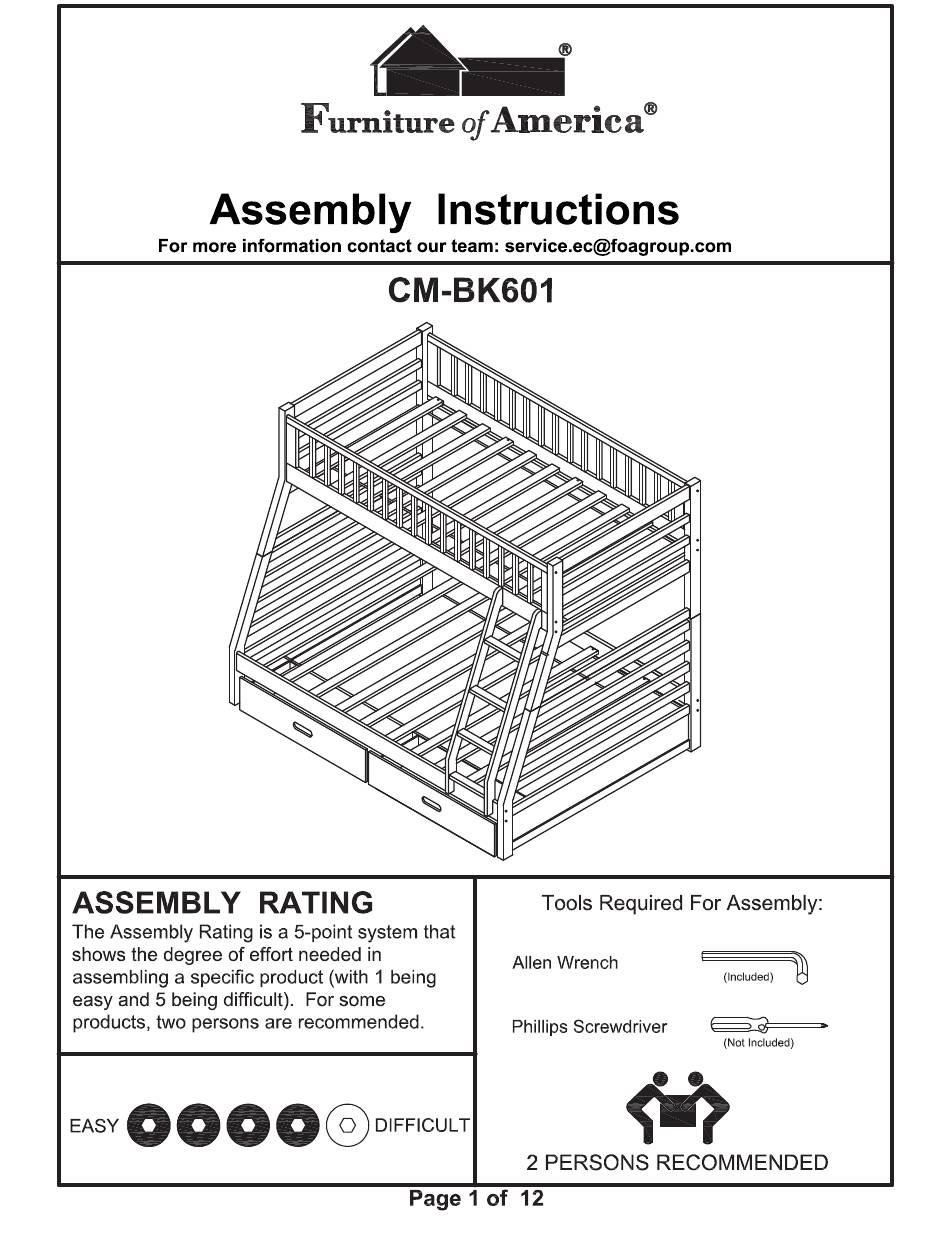

- Page 1 Rev.18-07-25...
- Page 2 Use cardboard or carpet area when assembling furniture to prevent scratches .Make sure the furniture rests on a flat and level surface with each leg evenly touching the floor. No dragging of products/parts.
- Page 6 2. Insert the barrel nuts (#B) into the rails, and align the hole for the bolt. 1. Align the ends of the lower front side rail (#5) and the lower back side rail (#6) 3. Insert the bolt (#A) into the pre- to the pre-drilled holes along the sides drilled holes along the side and of the lower end guardrail (#1,2).
- Page 7 2. With the help of another person, carefully place the top bunk onto those metal dowels (#E). 1. Insert a metal dowel (#E) into the large pre- drilled holes along the top corners of the bottom bunk. Align the top and bottom of the ladder (#7) to the pre-drilled holes along the front rails.
- Page 8 Apply the twin slat kit (#9) onto the top bunk. Insert a screw (#G) into each end and secure using a screwdriver. Apply the full slat kit (#8) onto the top bunk. Insert a screw (#G) into each end and secure using a screwdriver.
- Page 9 Insert 2 screws (#H) into the holes along the sides of (#11/12). Secure using a Phillips screwdriver. Align the bottom panel (#14) to the ridges along the sides and carefully slide in.
- Page 10 Place the back panel (#13) and insert 2 screws (#H) into each end. Secure using a Phillips screwdriver. Align the center support (#15) to the pre-drilled holes along the center of the front and back panel (#10/13). Insert a screw (#H) into each end and secure using a screwdriver.
- Page 11 Make sure all screws and bolts are firmly secured. Roll drawers under bed.
- Page 12 Page 12 of 1 2...
