VERSION # 20-02-20
1 / 13
MODEL #
CM-BK606
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PST)
TOOLS REQUIRED
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
4 - People
Recommended
ASSEMBLY RATING
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK606
Summary of Contents for Furniture of America CM-BK606

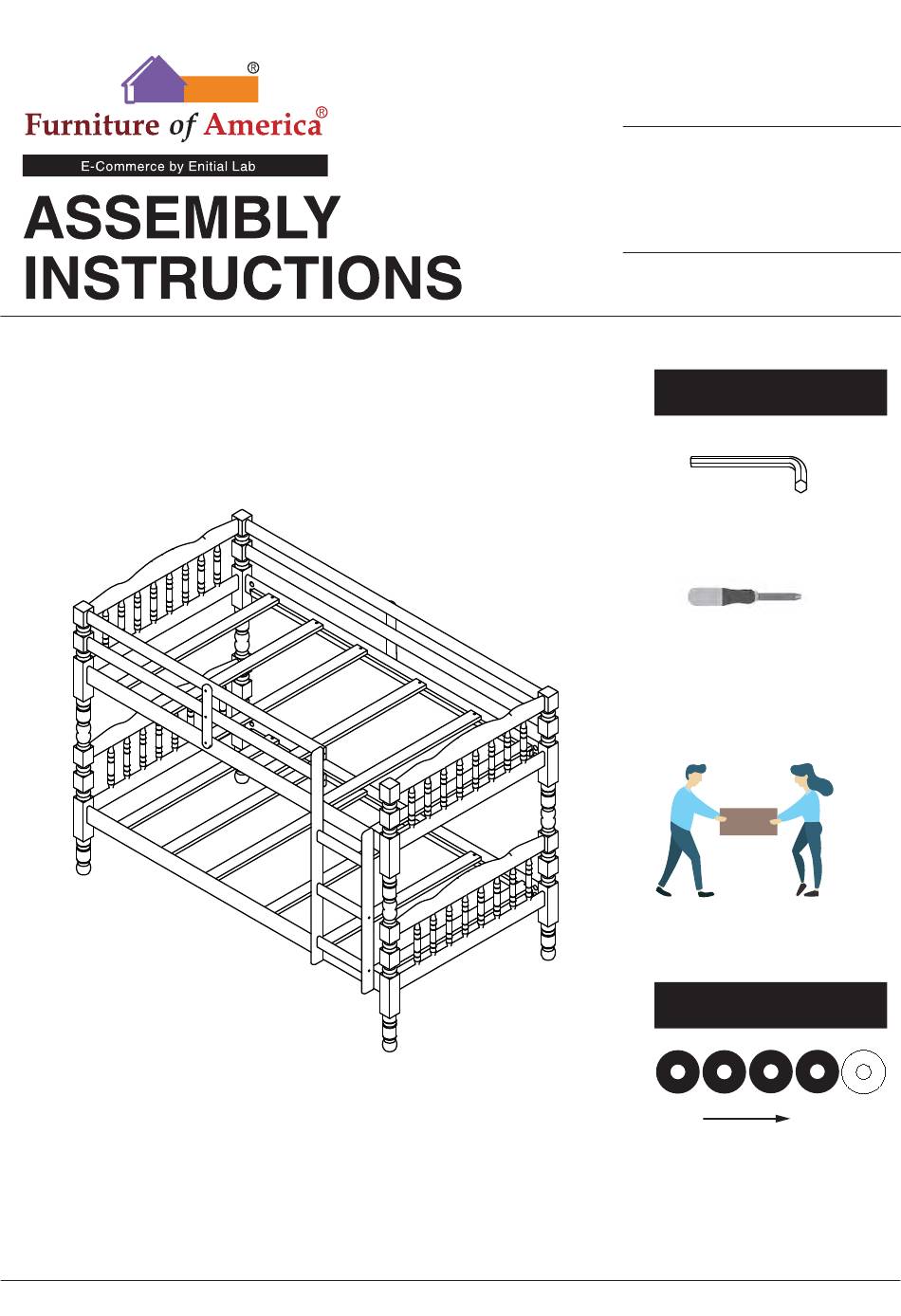

- Page 1 MODEL # CM-BK606 Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PST) TOOLS REQUIRED Allen Wrench (Included) Phillips Screwdriver (Not Included) 4 - People Recommended ASSEMBLY RATING EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 13...
- Page 5 BUNK BED CM-BK60 6 #3 2pcs #2 1pc #4 2pcs Font side Rail Bottom Side Panel Top Side Panel (R) Top Side Panel (L) #6 2pcs #7 2pcs #8 12pcs #5 2pcs Slats Back Front Back Guardaril Bars Guardaril Bars side Rail #9 2pcs 3pcs...
-
Page 6: Exploded View
#D 6pcs #C 6pcs #B 6pcs #A 16pcs BOLT Ø1/4" x3-9/16" BOLT Ø1/4"x 1-3/4" BOLT Ø1/4X1-9/16" BOLT Ø1/4"x 4-1/8" #E 30pcs #F 4pcs #G 1pc #H 16pcs Metal Dowel Screw M4 x 1-3/16" Allen Wrench M4 Screws _noom Ø9x90mm Exploded View 6 / 13... - Page 7 CM-BK606 is packed in 2 cases Hardware Carton Disignation Part Top Side Panel (R) Top Side Panel (L) CM-BK606-1 Bottom Side Panel Front #A x 16pcs Side Rails #B x 6pcs Back Side Panel #C x 6pcs #D x 6pcs...
- Page 8 Align bottom side panels (#3) to the side rails (#4,5), then secure by using bolts (#A) onto moons (#H). #3 x2pcs Part #4 x1pc Part #5 x1pc Part Hardware #A x8pcs Hardware #H x8pcs Hardware #F x4pcs Insert dowels (#F) to the top of the bunk bed as shown in the diagram.
- Page 9 Align guardrails (#6) to the top side panels (#1,2), then secure by using screws (#D). #1 x1pc Part #2 x1pc Part #4 x1pc Part #5 x1pc Part #6 x2pcs Part Hardware #A x8pcs Hardware #D x4pcs Hardware #H x8pcs Align side rails (#4,5) to the top side panels (#1,2), then secure by using bolts (#A) onto moons (#H).
- Page 10 Align and place the top bunk onto the bottom bunk. Align ladder to the bunk bed, then secure by using bolts (#B). Hardware #B x4pcs 10 / 13...
- Page 11 Align guardrails (#7) to top bunk side panel,then secure by using bolts (#D). Secure ladder to guardrails (#7) by using bolts (#B). #7 x2pcs Part Hardware #B x2pcs Hardware x2pcs #8 x12pcs Part Hardware #E x24pcs Align slats (#12) to the bunk bed, then secure by using screws (#E).
- Page 12 Align reinforce bars (#9) to the top guardrails, then secure by using screws (#E). Part #9 x2pcs Hardware #E x6pcs Turn right (clockwise) to tighten 12 / 13...
- Page 13 1 3 / 13...
