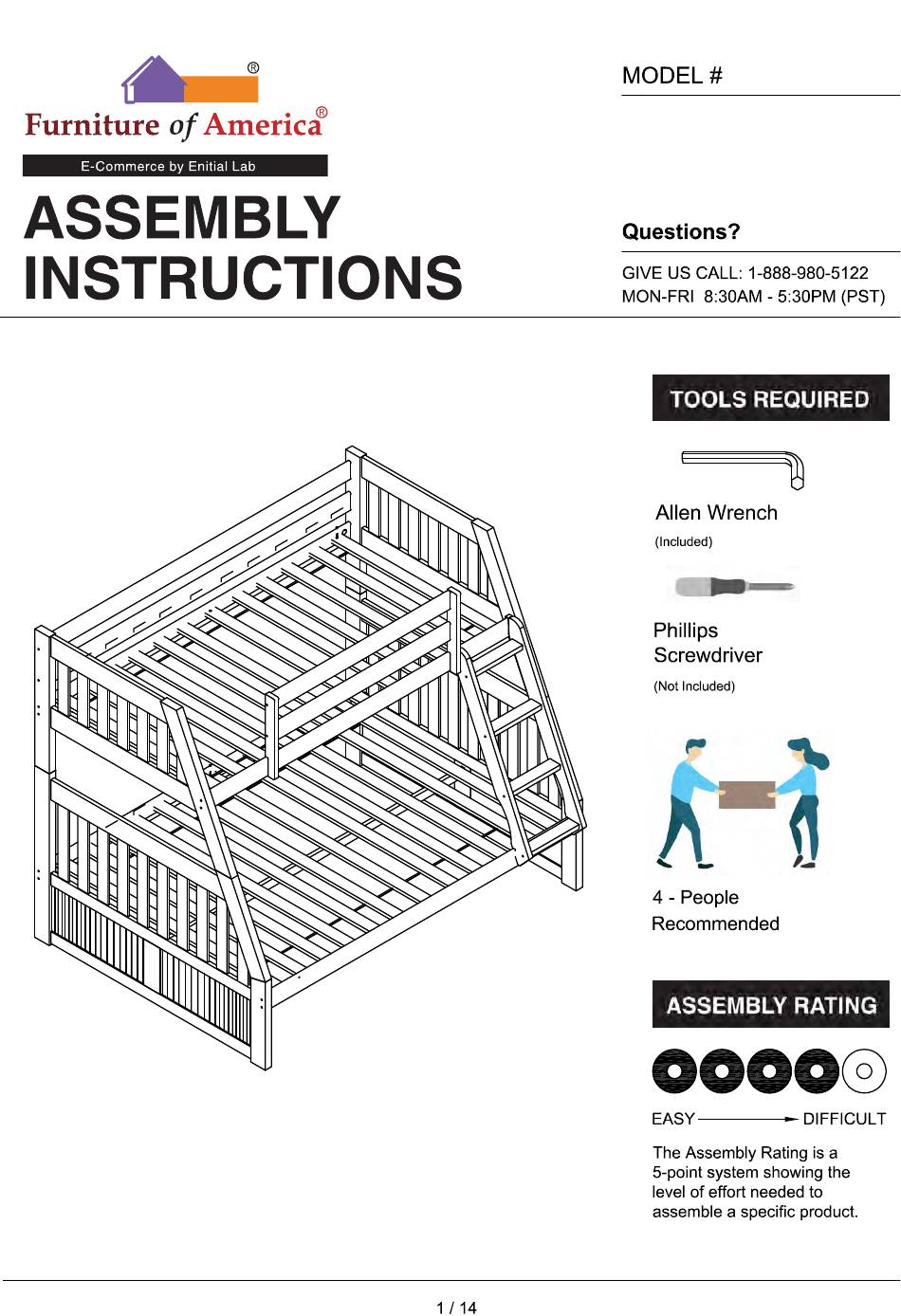

- Page 1 CM-BK605 VERSION # 20-07-13...
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 5 CM-BK605 Screw 1/8”x5/8” Bolt 1/4”x3-1/8” Bolt 1/4”x3-3/8” Bolt 1/4”x2-3/8” Bolt 1/4”x2” Screw 3/16" x 3" Side Rail Bracket Bolt 1/4”x1-1/2”...
- Page 7 CM-BK605 is packed in 5 cases CM-BK605-1 CM-BK605-2 CM-BK605-3 CM-BK605-4 CM-BK605-5...
- Page 8 Align center rail brackets (#I) to the end guardrails (#9,10), then secure by using screws (#E). Align side rails (#12,13) to the end guardrails (#9,10), then secure by using bolts (#A) onto nuts (#K).
- Page 9 Insert dowels (#H) onto end guardrails. Align center rail (#11) to brackets, then secure by using bolts (#M) with nuts (#N). Align side guardrails (#1) to the end guardrails (#2,3), then secure by using bolts (#B). Align side rails (#4,5) to the end guardrails (#2,3), then secure by using bolts (#A) with nuts...
- Page 10 Insert dowels (#J) to side guardrails (#8), then align side guardrails (#8) to posts (#6,7). Secure by using bolts (#C). Align guardrail to the side rail, then secure by using bolts (#D).
- Page 11 Align ladder rungs (#16,17) to the ladder sides (#14,15), then secure by using bolts (#C). Align ladder brackets (#L) to the ladder sides (#14,15), then secure by using screws (#E). Carefully place top bunk onto lower bunk.
- Page 12 Align ladder to the bunk bed, then secure by using the following screws as shown in the diagram. Align slats (#19) to the bottom bunk, then secure by using screws (#F).
- Page 13 Align slats (#18) to the top bunk, then secure by using screws (#F).
