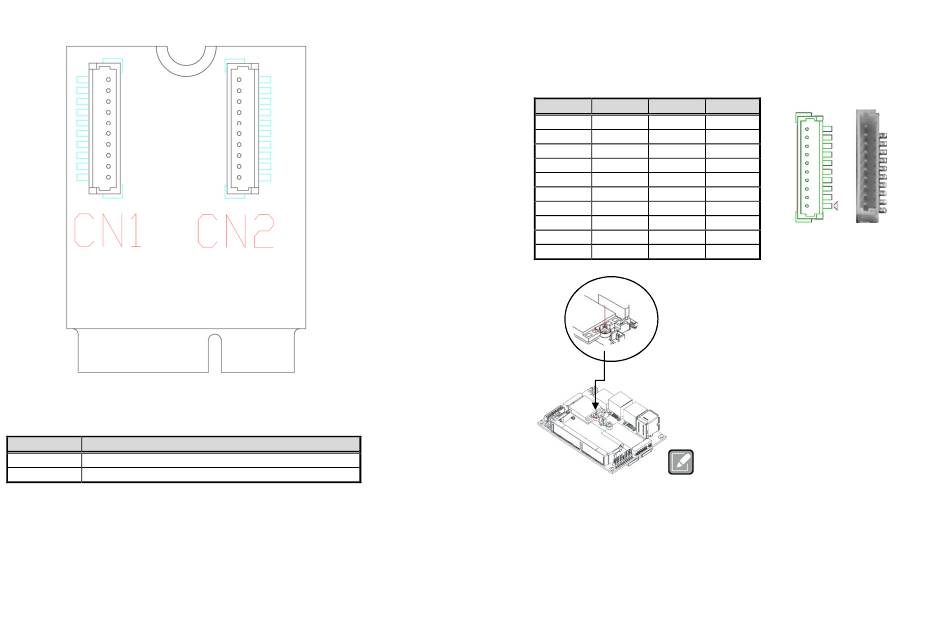

Module Layout

Top View

Connectors

Connector Description
CN1 DIO1 Connector
CN2 DIO2 Connector
2 94192920000E
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 Nov 2020
Printed in Taiwan

DIO Connectors (CN1 and CN2)

These are 1x10-pin (Pitch=1.0mm) wafer connectors which are compliant
JST BM10B-SRSS-TB
with for 16bit DIO interface
software programming to control these digital signals
CN1 CN2
Pin Signal Pin
1 DIO 0 1 DIO 8
2 DIO 1 2 DIO 9
3 DIO 2 3 DIO 10
4 DIO 3 4 DIO 11
5 DIO 4 5 DIO 12
6 DIO 5 6 DIO 13
7 DIO 6 7 DIO 14
8 DIO 7 8 DIO 15
9 +5V 9 +5V
10 GND 10 GND
Note.
94192920000E
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 Nov 2020
Printed in Taiwan
. You may use
.
10
Signal
1
After installing the M.2 Key
E card, please follow the
red arrow to screw and lock
the card.
3
