Product Installation Guidelines

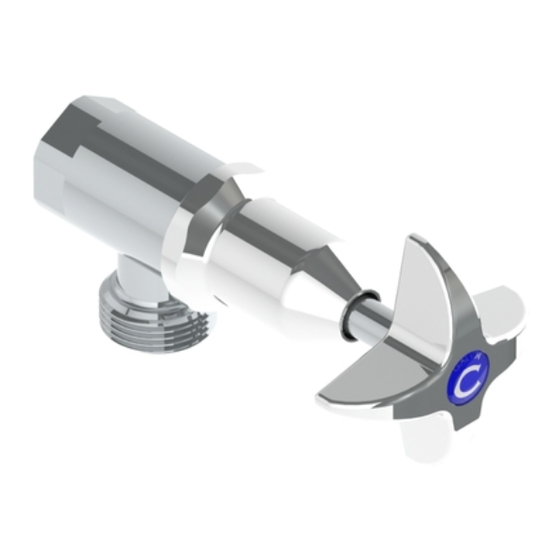

Washing Machine Taps
PRODUCT CODES:
- 49920 (Vandal Resistant)
- 49924 (Vandal Resistant)
- 49820 (Vandal Resistant)
- 48785 (Stirling)
SPECIFICATIONS
−
Vandal resistant handle featuring a locking ring to secure the handle to the spindle which may only be
removed using the key provided. (Vandal Resistant)
−
Chrome plate finish for easy cleaning and added durability.
−
Handle and button not included, have to be ordered separately. (Stirling)
IMPORTANT: All taps are tested in accordance with AS/NZS 3718 and leave our premises in
good working order.
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without
notice.
TOOLS REQUIRED
−
Power drill
−
Spanner
−
Hex key
−
Thread tape
© Galvin Engineering Pty Ltd
Version 1, 7 October 2022, Page 1 of 4
½" BSP - Female
¾" BSP - Male
Jumper Valve
Min
50
Max
500
Min
5
Max
80
N/A
Chrome
Document No.: 001.00.30.22
Advertisement
Table of Contents
Related Manuals for Galvin Engineering 49920
Summary of Contents for Galvin Engineering 49920
- Page 1 Document No.: 001.00.30.22 Product Installation Guidelines Version 1, 7 October 2022, Page 1 of 4 Washing Machine Taps PRODUCT CODES: - 49920 (Vandal Resistant) - 49924 (Vandal Resistant) - 49820 (Vandal Resistant) - 48785 (Stirling) SPECIFICATIONS − Vandal resistant handle featuring a locking ring to secure the handle to the spindle which may only be removed using the key provided.
- Page 2 We recommend using thread tape or − Secure the handle using the “C” circlip and equivalent to ensure the connection does not locking ring. leak. − DO NOT tighten the body by using the top assembly. © Galvin Engineering Pty Ltd...
- Page 3 6. Clean the spindle and body of debris. 7. Place a new o-ring (if required) onto the spindle and re-grease with potable water approved grease. 8. Re-assemble top assembly. Follow the product installation guidelines for the relevant product to re- assembly method. © Galvin Engineering Pty Ltd...
- Page 4 Version 1, 7 October 2022, Page 4 of 4 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied.
