This document applies to OpenVox VS-GW2120 Series GSM Gateway. There are 3 RJ45 Network ports,
ETH1/ETH2/ETH3. If you choose ETH1, you can access Board 1 . If you choose ETH2/ETH3, you can
access different Boards with different IP addresses.
VoxStack provides 2 working modes: Stand-alone and Cluster
Stand-alone: A single IP address manages one GSM modules (4 ports).
Stack Num
Cluster: A single IP address manages up to 5 GSM modules (up to 44 ports).
www.openvox.cn
IP
1
172.16.99.1
2
172.16.99.2
3
172.16.99.3
...
11
172.16.99.11
Default IP: 172.16.99.1
User Name: admin
Password: admin
.
Username
Password
admin
admin
admin
admin
admin
admin
...
...
admin
admin
1 /8
Advertisement
Table of Contents
Related Manuals for OpenVox VS-GW2120-40G
Summary of Contents for OpenVox VS-GW2120-40G

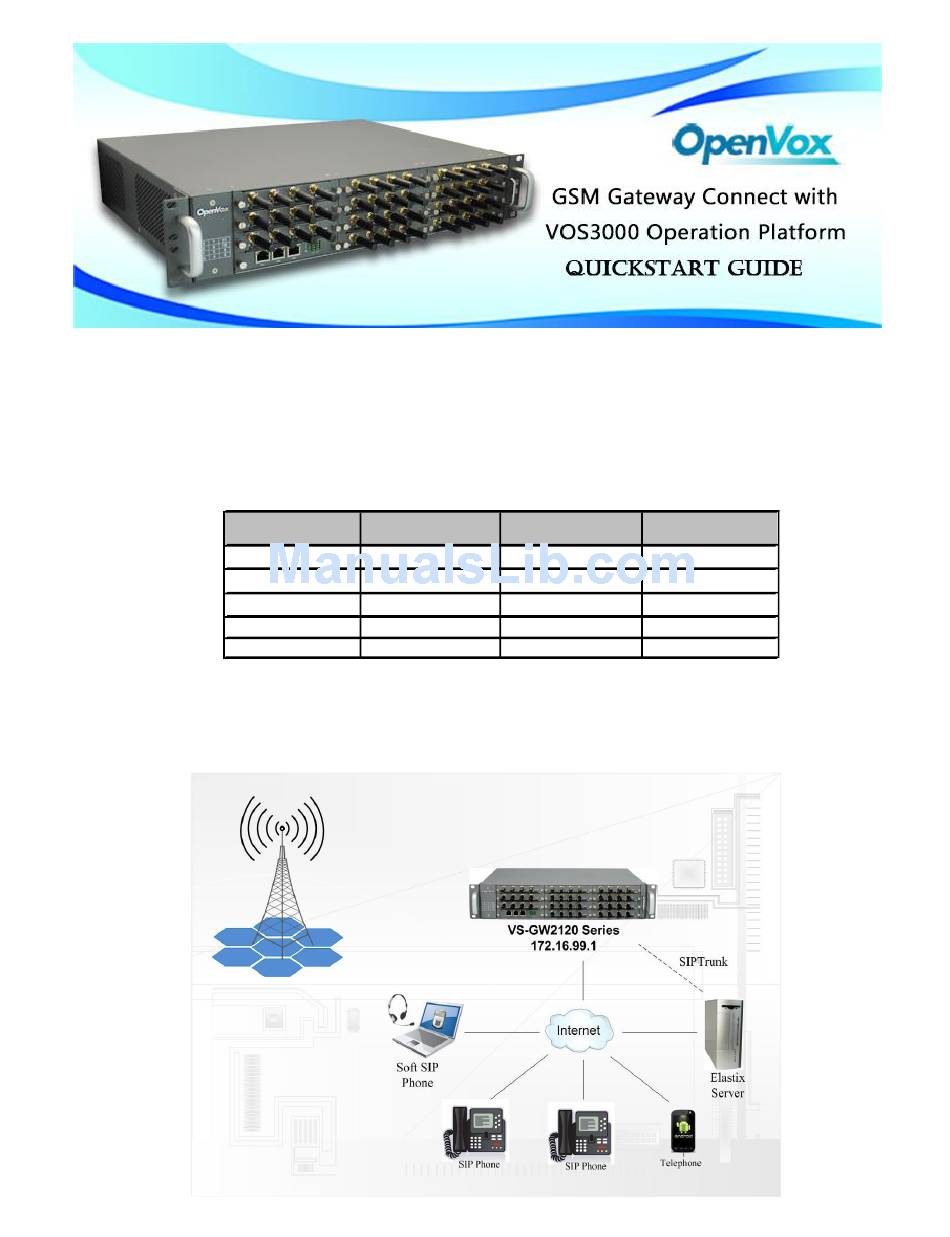

- Page 1 This document applies to OpenVox VS-GW2120 Series GSM Gateway. There are 3 RJ45 Network ports, ETH1/ETH2/ETH3. If you choose ETH1, you can access Board 1 . If you choose ETH2/ETH3, you can access different Boards with different IP addresses. VoxStack provides 2 working modes: Stand-alone and Cluster Stand-alone: A single IP address manages one GSM modules (4 ports).
- Page 2 Please select “SIP—>SIP Endpoints—>Add New SIP Endpoint” to set SIP trunk. The following figure shows detail information about how to set it. About other parameters in SIP, please set by your requirements for there is no need to set them in simple calls. www.openvox.cn 2 /8...
- Page 3 If you need both outbound and inbound calls from GSM gateway, then you need create both Routing Gateway and Maping Gateway to make it happen. Section 1: Add a Routing Gateway in register mode: Please select “Operation Management--- > Gateway Operation----- > Routing Gateway" to create a Routing Gateway: www.openvox.cn 3 /8...
- Page 4 Additonal Settings: ●Normal---->Gateway Type---->Dynamic VOS3000 here acts as a SIP server, OpenVox GSM Gateway as a SIP client registers to it. ●Routing Prefix---->Routing Callee Rewrite Add a Routing callee Rewrite Rule to remove the prefix '9' of CalleeID, then send it to GSM gateway.
- Page 5 ●Advanced---->SIP------Authentication User & Password When Register enabled, Authentication Uaser and Password must be filled in. ●Register------>On This option is to choose register mode or ungister mode for GSM gateway. www.openvox.cn...
- Page 6 Please select “Operation Management--- > Gateway Operation----- > Mapping Gateway" to create a Mapping Gateway: Gateway ID:1001 ---------------------Username of SIP trunk which GSM gateway registers to Password:1001 ---------------------Password of SIP trunk which GSM gateway registers to Additonal Settings: ●Normal---->Gateway Type---->Dynamic www.openvox.cn 6 /8...
- Page 7 Taking advantage of SIP software such as Xlite, eyeBeam to register a SIP extension(4001) on VOS3000 server. ●Test call from VOS3000 to GSM geteway Use Extension 4001 to call 9+number, then you will reach the number you want through GSM gateway, you can check it on GSM gateway. www.openvox.cn...
- Page 8 ●Test call from GSM geteway to VOS3000 Use your mobile to call numbers of SIM cards on GSM gateway, then Extension 4001will be ringing. www.openvox.cn 8 /8...
