DKG-116 MANUAL AND REMOTE START UNIT
DESCRIPTION
The DKG-116 is a low cost
gasoline/diesel genset control unit
designed to start and stop a genset both
manually and remotely.

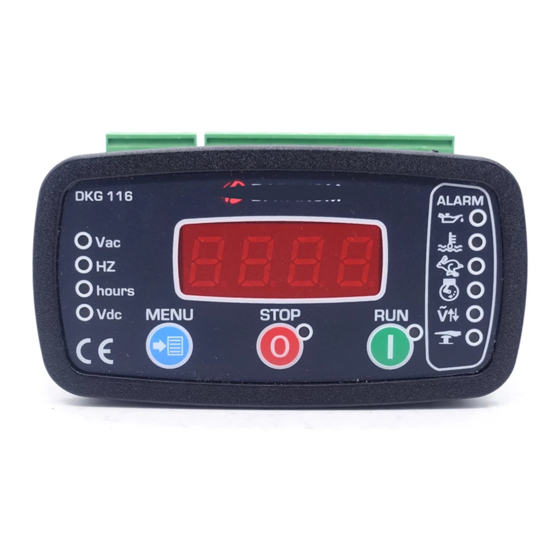

The manual control is made using RUN
and STOP pushbuttons on the front
panel. The remote control is made via
REMOTE START input signal.
When RUN button is pressed or a Remote
Start signal arrives, the engine will be
cranked up to 3 times. When it runs, the
crank relay will be immediately deactivated
and after Holdoff timer delay, fault
checking will be enabled. When the engine
is running, if a fault condition is detected
then the engine is shutdown immediately
and the unit indicates the source of the
failure through related alarm led.
If STOP button is pressed or the Remote
Start signal disappears, the genset will
continue to run during cooldown period. At
the end of the period the engine will stop.
The MENU button selects display
parameter scroll and allows program
mode entry and lamp test functions.
The total engine run hours is kept in a
tamper-proof non-erasable memory which
is not affected by power failures.
MEASUREMENTS
Generator Volts: L1-N, L2-N, L3-N
Generator Volts: L1-L2, L2-L3, L3-L1
Generator Frequency
Battery Voltage
OPTIONS
Auxiliary output (negative pulling).
Tel: +90-216-466 84 60
http://www.datakom.com.tr
Both Manual and remote control
Generator protection
Built in alarms and warnings
Remote Start operation available
True RMS measurements
Tamper-proof engine hours display
Field adjustable parameters
High current Fuel and Crank outputs
Protected semiconductor auxiliary
output
Digital inputs: 4
Survives cranking dropouts
Sealed front panel
Standard panel dimensions: 96x48mm
Plug-in connection system
V-02 (
11.08.2010)
Fax: +90-216 364 65 65
datakom@datakom.com.tr
FEATURES
