Hydrotechnik MultiSystem 4070 Operating Instructions Manual

Universal portable measuring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENG

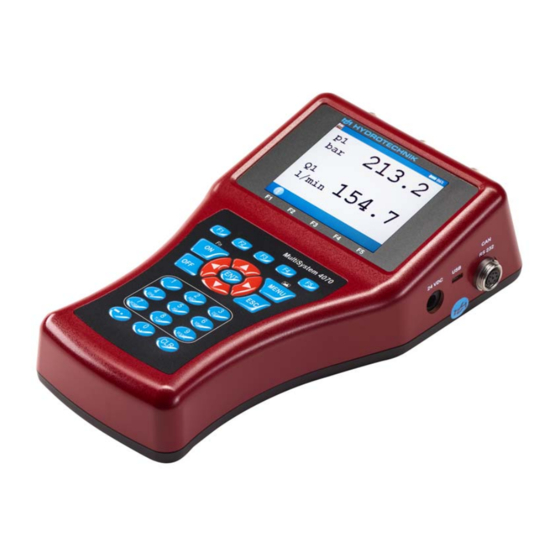

MultiSystem 4070
Universal Portable Measuring System
Operating Instructions
Firmware Version 2.0
Manual Version 2.0
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiSystem 4070 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydrotechnik MultiSystem 4070

Summary of Contents for Hydrotechnik MultiSystem 4070

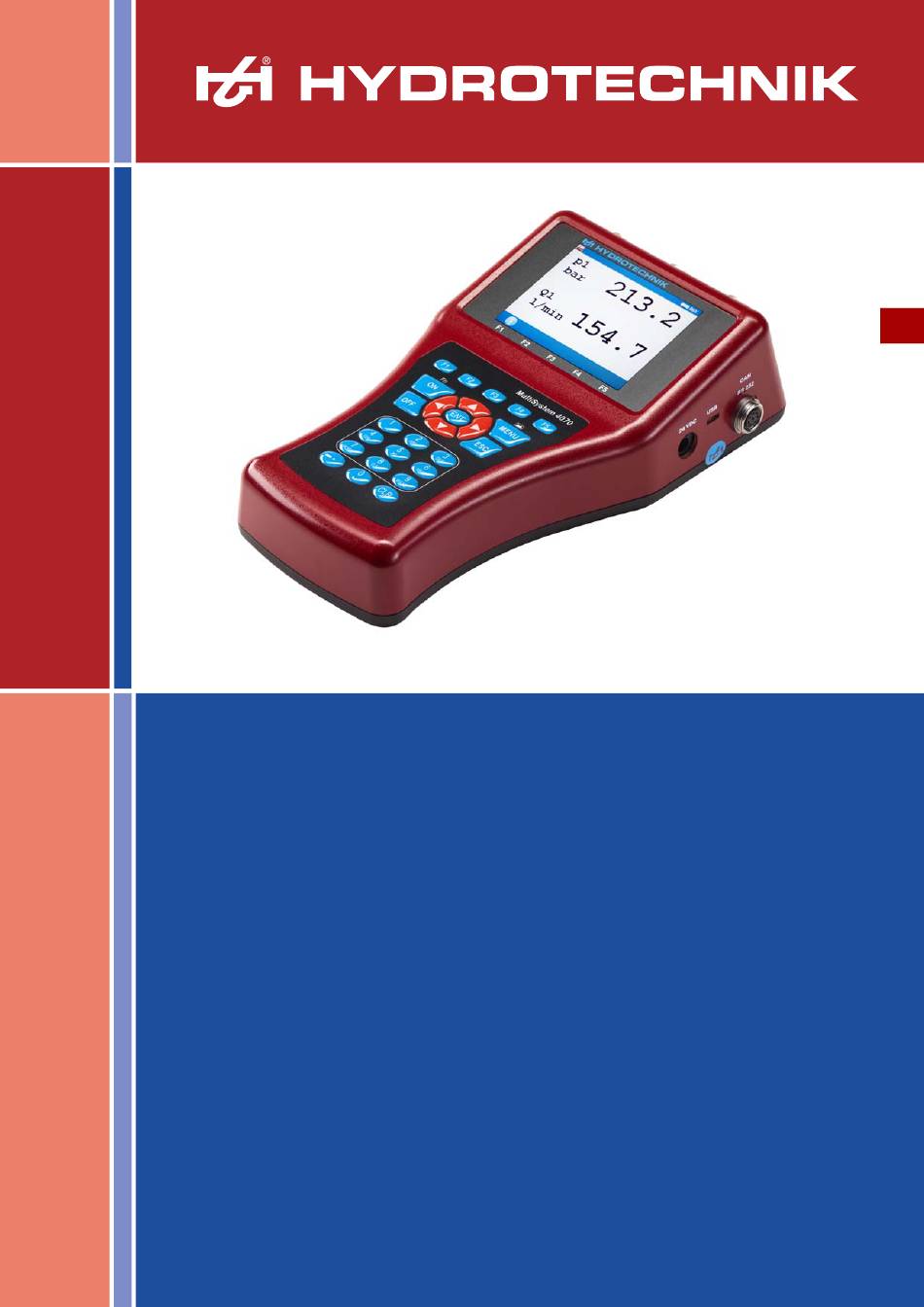

  • Page 1 MultiSystem 4070 Universal Portable Measuring System Operating Instructions Firmware Version 2.0 Manual Version 2.0...

  • Page 2: Table Of Contents

    Frequently used functions......... 40 Description of the measuring instru- Home ..............42 ment Available menus .......... 42 Properties of the MultiSystem 4070 ....10 Start recording ..........43 Connections ............11 Result display (result display) ......45 Characteristics of analog inputs....12 Change display..........
  • Page 3 Program CAN channels ......131 Activate MultiXtend power supply ....131 Start MultiXtend ......... 132 Viscosity-compensated volume flow rate measurement ..........133 Reprogram CAN parameters ......138 Icon reference Favorites ............141 Softkeys: Symbols/text........145 Firmware Version 2.0 MultiSystem 4070...

  • Page 4: General Safety And Warning Information

    Unplug the power cable if you detect smoke or there is an odor, or if the power cable is damaged. • Ensure sufficient grounding of your system. Inadequate grounding may cause incorrect measurements. Handling information for the MultiSystem 4070 • Never expose the instrument to excessive heat or moisture and observe the technical data. •...

  • Page 5: Information About The Use Of Sensors And Cables

    Never disassemble, repair or modify the batteries. • Never short-circuit the contacts of batteries. • Use only batteries that are installed or delivered by HYDROTECHNIK. • Only charge the battery while it is mounted in the instrument. • Dispose of used batteries as hazardous waste. Cover the contacts with insulation tape.

  • Page 6: Introduction

    Scope The manual on hand is valid for measuring instruments named MultiSystem 4070. It is intended for the operator of the instrument, that me- ans the person who works with the instrument. This is not a technical manual. Please contact our customer service for questions that go beyond the contents of this manual.

  • Page 7: Limitation Of Liability

    HYDROTECHNIK. The products of HYDROTECHNIK GmbH are designed for a long life. They re- present the state of the art and their functions have been individually checked before delivery.

  • Page 8: Intended Use

    Please send the instruments for which you have made a warranty claim post- age-paid and with a copy of the invoice or the delivery slip to HYDROTECHNIK customer service. You can find the address at the end of this manual.

  • Page 9: Customer Obligations

    Personnel for installation and maintenance Persons are considered to be authorized if they have been trained in all aspects of the instrument and have read and understood this manual completely. Firmware Version 2.0 MultiSystem 4070...

  • Page 10: Description Of The Measuring Instrument

    MultiSystem 4070 is a practice-oriented, user-friendly hand-held measuring instrument that supports the user in the daily measuring functions. When using sensors with ISDS (intelligent sensor detection), the MultiSystem 4070 auto- matically identifies the connected sensors during switch-on and adopts all parameters: Measurement range, physical measurand, unit of measurement, signal output and characteristic curve (linearization).

  • Page 11: Connections

    Input Ch1 – analog input USB interface Digital input and output (Ch6, Ch7) Combi jack CAN/RS232 Input Ch2 – analog input Input Ch5 – frequency input Input Ch4 – frequency/analog input Input Ch3 – analog input Firmware Version 2.0 MultiSystem 4070...

  • Page 12: Characteristics Of Analog Inputs

    Signal I [mA] 113 Ω 35 nF 5VDC Transil diode Ground 100 mA Current limiting Signal U [V] 8.8 kΩ 35 nF ±15 V DC Transil diode Shield ISDS Power supply during mains operation 15 V Firmware Version 2.0 MultiSystem 4070...

  • Page 13: Characteristics Of Frequency/Analog Inputs

    Limitation Protection type Signal (f) 100 k 33 nF 15VDC VDR Transile diode Ground 100 mA Signal direction 100 k 33 nF 15VDC VDR Transile diode Shield ISDS Power supply during mains operation 15 V Firmware Version 2.0 MultiSystem 4070...

  • Page 14: Characteristics Of The Digital Signal Input

    Protection type Signal 30 VDC VDR Transile diode Ground 1 mA constant current Characteristics digital signal output Jacks of the digital input/output (Ch7). Pin assignment Function Limitation Protection type Ground Signal Ub/10 mA VDR Transile diode Firmware Version 2.0 MultiSystem 4070...

  • Page 15: Characteristics Of Combi Jack Can / Rs 232

    Function Ground Power supply for MultiXtend or CAN sensors CAN_H RTS from PC (input) CAN_L ~14.6 to 15 V, max. 800 mA Characteristics of USB interface Micro USB Type B for communication with a PC. Firmware Version 2.0 MultiSystem 4070...

  • Page 16: Display

    In normal operation, either the battery or power pack icon is displayed. If the battery icon blinks during mains operation, the batteries are either missing, de- fective or deep-cycled. Possibly the power pack isn’t plugged in. Firmware Version 2.0 MultiSystem 4070...

  • Page 17: Keyboard

    Delete individual character (to right of cursor) In the result display: Delete MinMax memory or reset counter (using Fn) Use the key to enter special characters, e.g. ( ) * / @ ° … Firmware Version 2.0 MultiSystem 4070...

  • Page 18: Hydrocom Software Package

    Measured value memory 4 GB SD card, max. 100 measurement series, max. 8 MB per measurement series (2 million values) Tolerances Analog ± 0.10% of final value, digital ± 0.02% of measured value (resolution 20 ns) Firmware Version 2.0 MultiSystem 4070...

  • Page 19: Commissioning

    To maintain all claims against the shipping company you should document all possible transportation damage (e.g. by taking photos and signing a written protocol) before you unpack the measuring instrument. HYDROTECHNIK is not responsible for transportation damage and will assu- me no liability. Scope of delivery Carefully remove the transportation packing.

  • Page 20: Charge Batteries

    • Charge the battery for 3 hours before you commission the instrument. • The battery will be charged as soon as the instrument is supplied by a HYDROTECHNIK power pack. Information about The life cycle of lithium ion cells depends greatly on the conditions of use.

  • Page 21: Operation

    The HYDROcom software which is part of delivery will not be explained in this manual. Please refer to the online help and the separate software documentation. Firmware Version 2.0 MultiSystem 4070...

  • Page 22: Switch The Instrument On And Off

    (> 2 sec.). The instrument saves all data and settings before the instrument software is shut down. If you hold the key down for longer than 5 seconds, the instrument is switched off without saving.  Firmware Version 2.0 MultiSystem 4070...

  • Page 23: Operation Of The Instrument Software

    If the result display is shown, press the key to display the Home menu. Menus have up to 3 x 3 icons. Each icon takes you to the next menu level or to a dialog. Firmware Version 2.0 MultiSystem 4070...

  • Page 24: Navigating In The Instrument Software

    Number keys You can use the number keys to select a menu quickly. The number keys correspond to the icon position in the menus. When you press a number key, the corresponding menu or dialog opens. Firmware Version 2.0 MultiSystem 4070...

  • Page 25: Favorites

    Home menu.  Assign a favorite 1 Select a favorite in the menu using 2 Open the favorite selection: (press simultaneously) 3 Select and confirm menu or dialog:  Firmware Version 2.0 MultiSystem 4070...

  • Page 26: User-Defined Softkeys

    Softkeys: Symbols/text In the User profile dialog, select whether softkeys are displayed as symbols or text.  See Softkeys on page 100.  See Softkeys: Symbols/text on page 145. Firmware Version 2.0 MultiSystem 4070...

  • Page 27: Virtual Keyboard

    Moves the cursor one place to the left. POS1 Positions the cursor at the start of the entry. Positions the cursor at the end of the entry. RIGHT Moves the cursor one place to the right. Firmware Version 2.0 MultiSystem 4070...

  • Page 28: Select Operating Language

    Device menu: 4 Open the General Settings menu: 5 Select Language with and use to open a dialog box. 6 Select the language in the dialog box: 7 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...

  • Page 29: Adjust Number Format

    Decimal separator Choose between Comma and Dot. List separator Choose between Semicolon and Comma. System of units Choose between Metric units. Adjust the country settings for the CSV files to the settings on your computer. Firmware Version 2.0 MultiSystem 4070...

  • Page 30: Set Date And Time

    9 Confirm changes and exit the dialog:  Connect sensors 1 Switch the instrument off. 2 Connect the desired sensors to the inputs.  See Chapter Connections on page 11. 3 Switch the instrument on.  Firmware Version 2.0 MultiSystem 4070...

  • Page 31: Enter Sensor Parameters

    5 Highlight channel: 6 Start programming: 7 Highlight and select a dialog entry: 8 Highlight a value: or enter a value, e.g. 12.5 9 Confirm value: 10 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...
  • Page 32  Please observe the additional information in chapter Chapter Linearizati- on table on page 118. LOAD Press to load sensor parameters from the sensor data base. SAVE Press to save the current sensor parameters in the sensor database. Firmware Version 2.0 MultiSystem 4070...

  • Page 33: Record Measuring Data

    A trigger is a condition that has to happen to make the storing of measurement data start or stop. In this case, no trigger is defined. Please see section Chapter Trigger function on page 109 for further informa- tion on how to use the trigger function. Firmware Version 2.0 MultiSystem 4070...

  • Page 34: Delete Measuring Data

    5 Delete: 6 Delete the selected measurement series or all series: 7 Confirm deletion with or cancel with The deletion cannot be undone.  The search function is explained here:  Search series on page 66 Firmware Version 2.0 MultiSystem 4070...

  • Page 35: Display Information On Selected File

    If a note has been saved in the measure- ment file you can edit it with Press to exit the dialog. Information about a file can be displayed in many dialogs. Firmware Version 2.0 MultiSystem 4070...

  • Page 36: Connect A Pc And Transfer Data

    The internal memory has two partitions: • DATA-VOL This is the general memory for files (measurement series, images, etc.) • DOCU volume This is where you will find the operating instructions, data sheets and soft- ware for this instrument. Firmware Version 2.0 MultiSystem 4070...

  • Page 37: Directory Structure For Data-Vol Partition

    History files read from oil condition sensors. • History file of a Patrick sensor (*.PHIS) • History file of a viscosity sensor (*.VHIS) • History file of a moisture sensor (*.HHIS) • History file of a filling level sensor (*.LHIS) Firmware Version 2.0 MultiSystem 4070...
  • Page 38 Oil condition diagnosis file from CW100 contamination sensor (*.OCDW) Test sequence files and test sequences (*.PAD). Stored sensor settings (*.SDB).  Channels on page 69 Stored TRACE files (CAN traces) (*.TRC). Stored text files (*.TXT). Firmware Version 2.0 MultiSystem 4070...

  • Page 39: Reset Device

    3 Wait until the beginning of the initialization is displayed and then press the following keys consecutively: The selection list of the available operating languages will be displayed, from where you may select the desired one. Then the instrument will be reset and restarted.  Firmware Version 2.0 MultiSystem 4070...

  • Page 40: Operating Software

    Operating software Operating software The operating software of the MultiSystem 4070 will be presented and explai- ned on the following pages. Frequently used functions Function in menu/dialog Keys to be used Step-by-step instructions Reset minimum/maximum value 1. Open Home: 2. Open...
  • Page 41 5. Select channel by pressing a key in the relevant line: Quickly select a function in an icon Select a function in the icon menu menu by pressing the relevant key, e.g.: e.g. in: Firmware Version 2.0 MultiSystem 4070...

  • Page 42: Home

    Operating software Home MENU opens the Menu; you can operate all functions of the MultiSystem 4070 from here. For the following explanations, it is assumed that the Home menu is displayed. Available menus Highlight the desired menu with and press Start recording Starts the recording of measurement data;...

  • Page 43: Start Recording

    Recording menu. Start recording with Series name Name of the measurement series; press to overwrite the proposal. File name Here you may enter a (different) name for the measurement series data file. Firmware Version 2.0 MultiSystem 4070...
  • Page 44 If you want to assign a note to the recording, switch to the second page in the Start recording dialog. Note You can enter any free text here. Select Note, press and enter the desired text. Store the note with  Open saved measurements  See Saved measurements on page 51 Firmware Version 2.0 MultiSystem 4070...

  • Page 45: Result Display (Result Display)

     Tiles per page on page 84 Graph view y=f  Graphic presentation in display menu on page 124 Graph view y=f  Graphic presentation in display menu on page 124 MinMax view  Measured values with MinMax on page 47 Firmware Version 2.0 MultiSystem 4070...

  • Page 46: Measured Values With Their Units

    Operating software Measured values with their units Change display  Change display on page 45 The units are displayed to the right of each measured value. Firmware Version 2.0 MultiSystem 4070...

  • Page 47: Measured Values With Minmax

     Change display on page 45 To the right of each result display, the measured minimum value (upper left) and maximum value (bottom right) are displayed. Symbols in the result display Channel with ISDS sensor Channel is recorded Firmware Version 2.0 MultiSystem 4070...

  • Page 48: Error Display

    Division by 0 occurs when the measured value is calculated (e.g. using a formula). ----- • CAN channel: The channel is not receiving any measu- red values, for example because the CAN timeout has been reached. • 4-20 mA sensor: The cable is broken. Firmware Version 2.0 MultiSystem 4070...

  • Page 49: Configurations

    1 Select the Save configuration dialog: 2 Enter a File name to toggle between capital and small letters. 3 Enter a Description to toggle between capital and small letters. 4 Save configuration and exit dialog:  Firmware Version 2.0 MultiSystem 4070...

  • Page 50: Load A Saved Configuration

    2 Select a File name: 3 In the dialog box, make a selection from the list of configurations: 4 Delete: 5 Choose between and SELECTED: 6 Press to confirm deletion and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...

  • Page 51: Saved Measurements

    Operating software Saved measurements In this menu you can process, display, delete, search for and configure the presentation of recorded measurement series. Series overview Firmware Version 2.0 MultiSystem 4070...

  • Page 52: Show Series

    Displays information about the selected object.  Display information on selected file on page 35 Confirms input/saves changes. In the Show series dialog, select a measurement series and specify the pre- sentation mode. Then press to display the measurement series. Firmware Version 2.0 MultiSystem 4070...
  • Page 53 Date and time of the measurement, recording time and scanning rate, and possible trigger settings will be displayed. Notes which were entered at the start of the recording are shown on the third information page. You can edit the notes.  Firmware Version 2.0 MultiSystem 4070...
  • Page 54  Chapter Presentation type “Graph” on page 61 Channel on x axis If you have selected the GRAPH y=f (x) presentation mode, you can select the channel for the y axis. The first channel of the measurement is preset. Firmware Version 2.0 MultiSystem 4070...
  • Page 55 By default, the entire measuring range of a measurand is used as scaling. However, if you want to limit the presentation to a certain part of the measuring range, you can enable manual scaling: 1 Select Type scaling: 2 Select MANUAL or AUTO:  Firmware Version 2.0 MultiSystem 4070...
  • Page 56 40 and 100 bar are to be displayed.  To change the scaling of a measurand 1 Select variable: 2 Enter minimal value and 3 Enter maximum value and 4 Save scaling and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...
  • Page 57 0.0 and 10.0 seconds is be shown. This is how to adapt the range of presentation: 1 Select Outline: 2 Select CLIPPING: 3 Enter time From/To and press to confirm values, from, to and time value.  Firmware Version 2.0 MultiSystem 4070...
  • Page 58 Show series (Channels) dialog. Select the channels to be presented. All channels marked with an  check mark are presented. Select a channel and use to change highlighting. Press to select or deselect all channels. Firmware Version 2.0 MultiSystem 4070...
  • Page 59 Select the symbols and colors that are to be used for the presentation of indi- vidual channels. AUTO Automatically assigns symbols and colors. Confirms input/saves changes. Highlight one of the displayed channels to modify symbols and colors for it. 1 Select a channel: Firmware Version 2.0 MultiSystem 4070...

  • Page 60: Presentation Type "Table

    For GLOSS, the scaling is displayed beneath the graph. • For Y-AXIS, only the scaling one channel is shown on the y axis. There is remaining space for the graphic. Presentation type “Table” DETAIL Presentation type “Table”: Zooms into the table. Firmware Version 2.0 MultiSystem 4070...

  • Page 61: Presentation Type "Graph

    4 You can now repeat these steps to show more detailed values, or press to undo the zooming step-by-step.  Presentation type “Graph” ZOOM+ Activates the zoom function. ZOOM- Resets the last zoom. Firmware Version 2.0 MultiSystem 4070...
  • Page 62 3 Scale the inverted area: 4 Display the inverted area (apply zooming): You can use the zoom function repeatedly to show the desired area of the graph in an optimized way. 5 End graph presentation:  Firmware Version 2.0 MultiSystem 4070...

  • Page 63: Spot Function

    You can use the spot function to display measured values of a certain time po- sition within the graph: 1 Activate spot function: 2 Choose move factor: 3 Move spot line: 4 Read measured values. 5 End spot function:  Firmware Version 2.0 MultiSystem 4070...

  • Page 64: Delta Spot Function

    The differences between each channel's measured values marked by the two spot lines on the curve are displayed on the right. to select the move factor and to choose whether the left (X1), the right (X2) or both (X1+X2) spot lines are to be moved. Firmware Version 2.0 MultiSystem 4070...

  • Page 65: Delete Series

    The measurement series 003 is highlighted. Press to display information on it. 1 Open the Delete series dialog: 2 Select one or more measurement series (optional): 3 Delete: 4 Delete the selected measurement series or all series: Firmware Version 2.0 MultiSystem 4070...

  • Page 66: Search Series

    3 Enter a search term, e.g. 1720 4 Run the search and close the dialog: 5 Open the Show series dialog: 6 Open the Show series (name) dialog: The measurement series returned by the search function are shown in blue. Firmware Version 2.0 MultiSystem 4070...
  • Page 67 Operating software 7 Sort measurement series by search result: Select Filtered. The measurement series returned by the search function are displayed at the top of the list. 8 Select the measurement series:  Firmware Version 2.0 MultiSystem 4070...

  • Page 68: Setting

    Operating software Setting In the Setting menu, settings can be applied for channels, display, instrument and recording. Firmware Version 2.0 MultiSystem 4070...

  • Page 69: Channels

    • Trigger output • Special channels for calculations or recording CAN signals. Press to highlight a channel. Press to switch between the pages of the dialog. The second page con- tains channels 13 to 17. Firmware Version 2.0 MultiSystem 4070...
  • Page 70 (see General Settings on page 96), you may enter the index number of the chan- nel here. If numeration is set to AUTO, this dialog entry cannot be changed. Unit Select the unit of measurement. Firmware Version 2.0 MultiSystem 4070...
  • Page 71 0.25, 1, For a minimum frequency of 1 Hz, the decrease to zero during the recording is shown with a delay of 1 s. For a minimum frequency of 0.25 Hz, the delay is 4 s. Firmware Version 2.0 MultiSystem 4070...
  • Page 72 (Technical data on page 18) for permitted input signals.  Configure digital signal output (Ch7) LOAD Loads sensor parameters from the database. SAVE Stores the current sensor parameters in the database. Confirms input/saves changes. Firmware Version 2.0 MultiSystem 4070...
  • Page 73 MANUAL: the trigger output is switched manually by pressing a key Reference channel Select the channel to be used as reference channel. Condition For trigger input OFF/ON For measurement channels GREATER THAN/LESS THAN Value For measurement channels, e.g. 200 Firmware Version 2.0 MultiSystem 4070...
  • Page 74 General Settings on page 96), you may enter the index number of the chan- nel here. Unit Is entered automatically when using pre-programmed formulas and cannot be edited; Define the unit for channels with individual formulas and assignment with CAN. Firmware Version 2.0 MultiSystem 4070...
  • Page 75 The same applies to the assignments Ch3-Ch4 and Ch4-Ch5. dCh1/dt Forms the first derivative of the measured values from channel 1; Analogously, the derivation of the channels Ch5 (dCh5/dt) and Ch8 (dCh8/dt) is also possible. Firmware Version 2.0 MultiSystem 4070...
  • Page 76 6 Select the port corresponding to the desired channel: 7 Confirm changes and exit the dialog: 8 Repeat the setup for each desired channel on your MultiXtend instrument.   See Connecting MultiXtend A and T on page 129. Firmware Version 2.0 MultiSystem 4070...
  • Page 77 You may perform any calculations and use the values from all channels in your formula. You may use all basic arithmetic operations. Do not enter spaces. If you need additional mathematic functions, you may create the required calcu- lated channels during the data evaluation with HYDROcom. Firmware Version 2.0 MultiSystem 4070...
  • Page 78 Channel 11: Calculation Ch4 - Ch5 = dV1 in liters (l) • Channel 12: Calculation dCh11/dt = Q1 in liters per second (l/s) • Channel 13: Calculation Ch12 * 60 = Q2 in liters per minute (l/min) Firmware Version 2.0 MultiSystem 4070...

  • Page 79: Overview Filter

    A 5 kHz filter is applied to channels Ch1 and Ch5 • DAMPED A 50 Hz filter is applied to Ch1 to Ch5; peak pressures are suppressed; this is ideal for static measurements or slow processes. Firmware Version 2.0 MultiSystem 4070...

  • Page 80: Channel Extension

    This allows you to select manually from the list of channel extension boxes found. Once you have selected a channel extension box, a dialog opens in which you can configure the box’s ports. Firmware Version 2.0 MultiSystem 4070...
  • Page 81 Displays the measurand set for each reference channel. Unit Displays the unit set for the measurand in the reference channel. Measuring range from/ The measuring range from set for the corresponding reference channel is displayed here. Firmware Version 2.0 MultiSystem 4070...

  • Page 82: Display

    Basic configurations are also possible. Display update rate The display defines the refresh rate of the result display Select one of the five possible values Brightness Specifies the brightness value of the display Select a value from 100% Firmware Version 2.0 MultiSystem 4070...
  • Page 83 Presentation of the channels as a function of time • GRAPHIC y = f(x) Presentation of the channels as a function of an arbitrary channel COL/SYM Opens the Display (Symbols/colors) dialog. SCAL Opens the Scaling display dialog. Confirms input/saves changes. Firmware Version 2.0 MultiSystem 4070...
  • Page 84 (current page/total pages). Switch to the next page of tiles with List entries per page Under List presentation you can choose to display 1, 2, 4, 6, list entries per page. Firmware Version 2.0 MultiSystem 4070...
  • Page 85 You can assign symbols and colors to the channels here.  See Display (Symbols/colors) dialog on page 86. SCAL. Select the measurement range of the channel which is to be displayed in the graphical presentation.  See Display scaling dialog on page 87. Firmware Version 2.0 MultiSystem 4070...

  • Page 86: Display (Symbols/Colors) Dialog

    1 Highlight a channel – 2 Select a color – (only for activated symbols) 3 Select a symbol – 4 Repeat steps 1 to 3 for all desired channels. 5 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...

  • Page 87: Display Scaling Dialog

    : press to select the desired channel. 2 Enter lower limit of display range – 3 Enter upper limit of display range – 4 Repeat steps 1 to 3 for all desired channels. 5 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...

  • Page 88: Device

    Information about the configuration and partitioning the internal SD card Security Setting of access rights for menus Calibration Specifying the calibration interval Hardware Diagnostic Expanded settings for diagnosis of hardware (for service personnel) Battery information Information and current state of battery Firmware Version 2.0 MultiSystem 4070...

  • Page 89: Connections

    Operating software Connections Firmware Version 2.0 MultiSystem 4070...
  • Page 90 1 Select CAN #1 in the Connections menu: 2 Select the bus termination: 3 Toggle to input the baud rate: 4 Select the desired baud rate: 5 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...
  • Page 91 INFO Displays information about the selected object.  Display information on selected file on page 35 FILE Converts the display to file name. NAME Converts the display to series name. SORT Sorts the displayed list/table. Firmware Version 2.0 MultiSystem 4070...
  • Page 92 You can use the keys to browse. COM #1 Confirms input/saves changes. Interface Enable/disable COM bus Baud rate Set transmission speed for COM data Firmware Version 2.0 MultiSystem 4070...
  • Page 93 Expose: The volume is visible on the PC as an external drive. Enable the DATA-VOL in order to transfer files directly from the measuring ins- trument to a PC. You can use any file browser for this. Firmware Version 2.0 MultiSystem 4070...
  • Page 94 For the connection of the Ethernet module, connected, MultiXtend/LAN USB/WLAN can be selected. Enter the IP address that MultiSystem 4070 is to have in the Ethernet network. Port This is preassigned and displayed for information purposes only Password Enter the password for the Ethernet network, if a password is required ...
  • Page 95 Operating software Bluetooth Confirms input/saves changes. Select a Bluetooth module. Firmware Version 2.0 MultiSystem 4070...

  • Page 96: General Settings

    Russian • Greek • Turkish • Chinese • Korean More languages may be available depending on the firmware version that is installed on your MultiSystem 4070. Additional languages may be provided with a firmware update. Firmware Version 2.0 MultiSystem 4070...
  • Page 97 Selecting a unit 1 Open the Unit dialog entry: 2 Select desired unit: 3 Confirm changes and exit the dialog: The new unit system will be used the next time the instrument is switched on again.  Firmware Version 2.0 MultiSystem 4070...
  • Page 98 MANUAL. Color scheme Select the color scheme for the user interface. Activation menu Select which display is shown when the measuring instrument is switched on: • RESULT DISPLAY • MAIN MENU (displays the Home menu) Firmware Version 2.0 MultiSystem 4070...
  • Page 99  Enter company Confirms input/saves changes. 1 In the User profile dialog, select the Company with 2 Enter text and to toggle between capital and small letters. 3 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...
  • Page 100 (psi) * Q1 (gpm) = kW The setting does not affect special channels. The formulas defined there are not converted. CAN channels with variables in the HYDROTECHNIK units ta- ble are an exception. Select whether to enable automatic unit control.

  • Page 101: Info

    Operating software Info When calling the HYDROTECHNIK customer service department, you should have the required instrument information ready. This can be found in the Info dialog. Firmware Version 2.0 MultiSystem 4070...

  • Page 102: Date/Time

      Enter date 1 In the Date/Time dialog, select the Date with 2 Select the day with 3 Open the dialog for month selection with 4 Open the dialog for year selection with  Firmware Version 2.0 MultiSystem 4070...

  • Page 103: Memory Medium

    This will delete permanently delete all contained data and cannot be undone. FORMAT Formats Partition 1 (DATA_VOL). In the Memory medium dialog, you can format the internal memory with FORMAT . The internal memory is divided up into two partitions. Firmware Version 2.0 MultiSystem 4070...

  • Page 104: Security

    3 Open the Device menu: 4 Open the Security dialog: 5 Open entry for release code: 6 Enter release code; observe the assignment of the function keys. 7 Confirm release code: 8 Highlight displayed menus: Firmware Version 2.0 MultiSystem 4070...

  • Page 105: Calibration

    The calibration interval is the period of time after which the measuring instru- ment is to be re-calibrated by the manufacturer. You can define the calibration interval. The measuring instrument is also ready for use if no calibration interval is set. Firmware Version 2.0 MultiSystem 4070...

  • Page 106: Hardware Diagnostic

    Displays the date up to which the calibration is valid. Calibr. date Displays the date of the last calibration. Hardware Diagnostic Confirms input/saves changes. Hardware Diagnostic dialog is for service and is locked with a code. Firmware Version 2.0 MultiSystem 4070...

  • Page 107: Battery Information

    Operating software Battery information Firmware Version 2.0 MultiSystem 4070...

  • Page 108: Recording

    The amount of data will increase if you configure more channels, a longer recording time, and a shorter scanning time. Large amounts of data may make evaluation and estimation of measuring results more difficult. Firmware Version 2.0 MultiSystem 4070...

  • Page 109: Trigger Function

    When a pretrigger is defined, the storing starts before the trigger event has happened. The percentage defined as pretrigger is used to store measured values before the trigger event. Select a percent value as pretrigger – Firmware Version 2.0 MultiSystem 4070...
  • Page 110 1 For the Trigger mode, select the TIMER option. 2 Enter the date of the trigger time – 3 Enter the time of day of the trigger time – 4 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...
  • Page 111 • START/STOP: Trigger 1 starts the storing, Trigger 2 stops it 3 Define Trigger condition Trigger value Trigger  See Definition of a measurement channel as trigger on page 110. 4 Repeat steps 2 and 3 to define additional triggers. Firmware Version 2.0 MultiSystem 4070...
  • Page 112 50 bar and temperature T1 rises above 30 °C. The recording is to start 60 seconds before the trigger incident. Required programming: Recording time 2 min. Trigger 1 Trigger condi- FALLING tion Trigger value 50.00 Pretrigger Trigger link Trigger 2 Trigger condi- RISING tion Trigger value 30.00 Firmware Version 2.0 MultiSystem 4070...

  • Page 113: Setup Recording

    When data logger mode is enabled, the measuring instrument starts the recor- ding directly after it is switched on. For example, you can switch the instrument via the CAN jack so that it is star- ted when you switch a machine on and recording begins. Firmware Version 2.0 MultiSystem 4070...

  • Page 114: Tools

    Operating software Tools Firmware Version 2.0 MultiSystem 4070...

  • Page 115: Convert And Export

    • History file (LHIS) • History file (VHIS) 5 Highlight Selected in the Convert and Export dialog: 6 Open file selection: 7 Select files.  See Select files on page 116. 8 Start converting:  Firmware Version 2.0 MultiSystem 4070...
  • Page 116 2 Open file selection: 3 Select desired file(s): Selected files are marked with a to the left next to the line (here the files 001 and 002). 4 Confirm selection and exit the selection dialog:  Firmware Version 2.0 MultiSystem 4070...
  • Page 117 Individual files are color coded as follows: • Black = default • Blue = The file meets the filter criterion • = The file is faulty (e.g. a configuration file in a legacy format or a file from another measuring instrument) Firmware Version 2.0 MultiSystem 4070...

  • Page 118: Instrument Functions

    The individual functions of the instrument, which have been referred to in the previous sections, are explained here. Linearization table LOAD Loads sensor parameters from the database. SAVE Stores the current sensor parameters in the database. DELETE Enables the delete function. Confirms input/saves changes. Firmware Version 2.0 MultiSystem 4070...
  • Page 119 9 Repeat steps 7 and 8 for all required lines of the table. 10 Complete the entry of set and actual values: 11 Confirm changes and exit the dialog: The new table is selected as active.  Firmware Version 2.0 MultiSystem 4070...

  • Page 120: Define Can Channel

    The corresponding value is displayed in decimal numbers and the corre- sponding hexadecimal value is in brackets – 4 Select the Format: Depending on the selected format, further input options are displayed. 5 Select the Channel name. Firmware Version 2.0 MultiSystem 4070...
  • Page 121 This allows to collect several measured values using one channel of the MS 4070. Due to the HEX format, a readable display of these measured values in the instrument is not possible. Firmware Version 2.0 MultiSystem 4070...
  • Page 122 (bits 8 to 15) are received on one multichannel. With the shown speci- fications, you record the measured values of both channels, but they cannot be displayed at the measuring instrument. The decoding will be done later using HYDROcom. Firmware Version 2.0 MultiSystem 4070...
  • Page 123 Instrument functions You need two special channels to display the measured values with the MultiSystem 4070. • On the first one, you define the following for the temperature sensor: Format BINARY (BIT), bit offset = 0, data bits = 8.

  • Page 124: Graphic Presentation In Display Menu

    Displays scaling instead of the current measurement values. • Channel p1 is displayed as a blue line with crosses. • Channel p3 is displayed as a red line with rectangles. • The current measured values are displayed beneath the graph. Firmware Version 2.0 MultiSystem 4070...

  • Page 125: Coupling Of Several Instruments

    But please be aware that the parameters scanning rate, recording time and pre- triggers must be programmed identically at all coupled measuring instruments. You can also couple MultiSystem 4070 instruments with MultiSystem 5060 Plus instruments. Connecting a measuring instrument electrically...

  • Page 126: Serial Coupling

    0.1 ms between Master and Slave 1 • max. 0.1 ms between Slave 1 and Slave 2 • max. 0.2 ms between Master and Slave 2 • max. 0.4 ms between Master and Slave 4 Firmware Version 2.0 MultiSystem 4070...

  • Page 127: Parallel Coupling

    Use of the MultiXtend Trigger For the coupling of more than two instruments we recommend the use of the MultiXtend Trigger (TKZ 316A-00-00.50). This simplifies the coupling and all- ows the use of the standard connection cables (TKZ 8824-F2-00.50). Firmware Version 2.0 MultiSystem 4070...

  • Page 128: Program Instruments

    • The storage may not be stopped at any of the coupled instruments, other- wise a synchronization becomes impossible • Avoid cyclic storage due to a possible triggering ahead of the desired time Firmware Version 2.0 MultiSystem 4070...

  • Page 129: Transfer And Evaluate Measured Values

    Connecting MultiXtend A and T You can use the MultiXtend A and T instruments to connect additional analog sensors or thermocouples to the MultiSystem 4070. Their signals are digita- lized by MultiXtend and transmitted to the CAN input of the measuring instrument.

  • Page 130: Enable Can Bus

    2 Open the CAN #1 dialog: 3 Select Interface: 4 Set function to ACTIVE: 5 Toggle to input the Baud rate: 6 Select desired baud rate: 7 Confirm changes and exit the dialog:  Firmware Version 2.0 MultiSystem 4070...

  • Page 131: Program Can Channels

    • Pressure sensor 0 – 200 bar at input 2 • Temperature sensor 0 – 60 °C at input 3 Program three special channels on the MultiSystem 4070, for example, chan- nels 13 to 15. In the Calculation field, select MultiXtend for each channel.

  • Page 132: Start Multixtend

    MultiXtend must be started again. 1 Open the Home menu: 2 Open the Setting menu: 3 Open the Device menu: 4 Open the Connections menu: 5 Open the CAN #1 dialog: 6 Select Start CANopen: 7 Start MultiXtend:  Firmware Version 2.0 MultiSystem 4070...

  • Page 133: Viscosity-Compensated Volume Flow Rate Measurement

    HySense QT 600). Use the integrated test point for the temperature measurement. The dialogs and functions described here are only available when a suitable tur- bine volume flow sensor is connected to the measuring instrument. Firmware Version 2.0 MultiSystem 4070...
  • Page 134 Open the dialog of the measurement channel that you want to use for volume measurement flow rate measurement. Highlight the entry Viscos.balance and press switch it to ACTIVE. Further options will be displayed: SAVE Stores the current sensor parameters in the database. Confirms input/saves changes. Firmware Version 2.0 MultiSystem 4070...
  • Page 135 Highlight the next line, press and select the measurement channel, where the oil temperature is measured. Then highlight the item Oil parameter and press to select or program the oil being used. Firmware Version 2.0 MultiSystem 4070...
  • Page 136 To write a new oil to the database, select an empty entry (-) from the oil data- base. Press , highlight the parameters and enter the values. Then press to save the new oil. Press to delete the currently displayed oil from the database. Firmware Version 2.0 MultiSystem 4070...
  • Page 137 The result of the calculation will be used at the channel for volume flow rate measurement to compensate the viscosity changes dependent on the tempe- rature. You may also display and record this channel. Firmware Version 2.0 MultiSystem 4070...

  • Page 138: Reprogram Can Parameters

    1 Open the Home menu: 2 Open the Tools menu: 3 Open the CANopen Tool menu: 4 Scan CAN bus 1 for CANopen instruments:  Selection Select one of the node IDs of the CANopen instruments. Firmware Version 2.0 MultiSystem 4070...
  • Page 139 • Firmware The TPDO address is not defined by the DIP switch but it can be repro- grammed via the node ID. This setting retains the heartbeat on the DIP switch’s node ID. Firmware Version 2.0 MultiSystem 4070...
  • Page 140 The TPDO address is not defined by the DIP switch/firmware combination. It may not be possible to adjust individual parameters on all CANopen instru- ments. If this is the case, the error message “Function not supported” or “Product code not supported” will be displayed. Firmware Version 2.0 MultiSystem 4070...

  • Page 141: Icon Reference

     Load a saved configuration on page 50 Delete Configurations > Delete configurations configurations  Delete a saved configuration on page 50 Oil condition Special applications > Oil condition  Special applications on page 152 Firmware Version 2.0 MultiSystem 4070...
  • Page 142  Configure special channels (Ch8 ... Ch17) on page 74  Possible assignments of the special channels on page 75  Calculations with formulas on page 77 Settings > Channels > CAN channels channels  CAN configuration on page 90 Firmware Version 2.0 MultiSystem 4070...
  • Page 143 LAN/WLAN  LAN/WLAN on page 94 Bluetooth Settings > Device > Connections > Bluetooth  Bluetooth on page 95 COM #1 Settings > Device > Connections > COM #1  COM #1 on page 92 Firmware Version 2.0 MultiSystem 4070...
  • Page 144 Convert and Export Tools > Convert and Export  Convert and Export on page 115 CANopen Tool Tools > CANopen Tool  Reprogram CAN parameters on page 138 HOLD Only permissible as softkey. “Freezes” the result display. Firmware Version 2.0 MultiSystem 4070...

  • Page 145: Softkeys: Symbols/Text

    Move factors in presentation type “Graph”: Changes the step width in the spot and delta-spot functions. Escape function: Exits the dialog without saving. BACKSP Backspace function: Deletes the character to the left of the cursor. Firmware Version 2.0 MultiSystem 4070...
  • Page 146 Confirms the action. START Starts action, e.g. scanning of CAN communication. YEAR Opens the selection dialog for the current year. MONTH Opens the selection dialog for the current month. Converts to decimal numbers. Converts to hexadecimal numbers. Firmware Version 2.0 MultiSystem 4070...
  • Page 147 Confirms input/saves changes. INFO Displays information about the selected object. Displays a preview for saved screenshots.  Display information on selected file on page 35 DISPLAY Displays the selected measurement. Firmware Version 2.0 MultiSystem 4070...
  • Page 148 SCAN Scans the CAN bus for messages. Opens the selection dialog for the current day. CREATE Creates elements for demonstrations. Creates, for example, demo test sequences, oil diagnostics files, and generates channel extension boxes. Firmware Version 2.0 MultiSystem 4070...

  • Page 149: Cleaning And Maintenance

    Part 2 and Part 1B (IATA) apply. When shipping the measuring instrument, you must comply with the hazar- dous goods transport regulations applicable for your country. You can also send the measuring instrument without the battery. Firmware Version 2.0 MultiSystem 4070...

  • Page 150: Maintenance

    This instrument is maintenance-free. However, it is still essential to have it re- calibrated regularly. If the instrument is in frequent use, we recommend recalibrating it every 2 years. HYDROTECHNIK maintains a high-performance calibration laboratory. Please contact us: HYDROTECHNIK GmbH...

  • Page 151: Manufacturer Address And Customer Service

    Cleaning and maintenance Manufacturer address and customer service Please contact the HYDROTECHNIK customer service department: HYDROTECHNIK GmbH Holzheimer Strasse 94 D-65549 Limburg an der Lahn Tel.: +49 6431 4004 555 E-mail: service@hydrotechnik.com Website: www.hydrotechnik.com Firmware Version 2.0 MultiSystem 4070...
  • Page 152 This submenu contains several functions which enhance the functionality of the MS 4070 or which are required for the operation of external devices. There is a detailed description of the menus in a separate document. Firmware Version 2.0 MultiSystem 4070...

Table of Contents
