Summary of Contents for Hydrotechnik Patrick

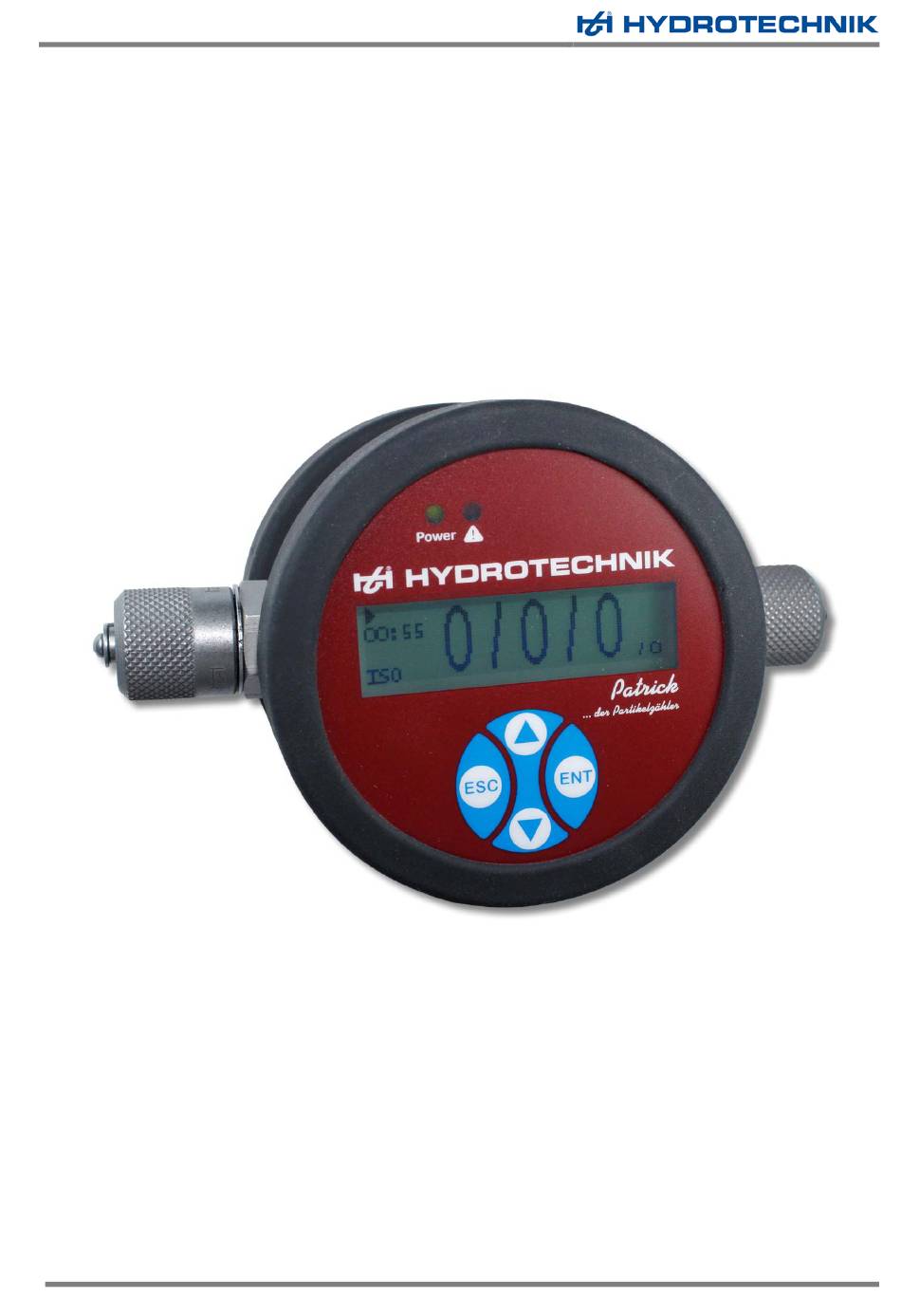

- Page 1 Patrick the Particle Counter Operating Instructions Patrick ... the Particle Counter Operating Instructions Rev. 1.8 EN • November 29, 2012 TKZ L3160-00-76.00EN © Hydrotechnik GmbH • All rights reserved Page 1 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN...
-
Page 2: Table Of Contents
Measurement of the analog 4 … 20 mA output with load resistor........11 Pic. 8 Switching output ......................12 Pic. 9 Sequence when transmitting all parameters subsequently ..........13 © Hydrotechnik GmbH • All rights reserved Page 2 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN... -
Page 3: Safety
A label indicating the laser class according to 21 CFR is attached to the device. This must be present and readable at all time. Damaged or unreadable labels must be replaced immediately. © Hydrotechnik GmbH • All rights reserved Page 3 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN... -
Page 4: Hints For The Use Of The Particle Counter
2.1. Range of Validity The manual on hand is valid for particle counters named "Patrick". It adresses to the operator of this instrument, that means the person, who works with the instrument. The manual is not a technical manual. Please contact our service staff for questions, that exceed the contents of this manual. -
Page 5: Limitation Of Liability
2.4. Use as Agreed The device Patrick is an optical particle monitor that may be used for the monitoring of fluid cleanliness. It works according to the light extinction principle and detects particles and other contaminants in the fluid. The measured values are calculated into purity classes according to ISO4406:99 or SAE AS4059E and then shown on the display. -
Page 6: Obligations To The Customer
Patrick the Particle Counter Operating Instructions Send your instrument with an invoice copy or delivery note copy to Hydrotechnik. The adress is mentioned at the end of this manual. 2.6. Obligations to the Customer The operating authority of this product has to assure, that only persons who •... -
Page 7: Components Of The Device
Patrick the Particle Counter Operating Instructions You may use Patrick to monitor the contamination level and the purity trend of fluids. There may be differences in the absolute accuracy to particle counters calibrated according to ISO 11171:99, but this difference is smaller than one ordinal number. Changes are display with very high accuracy. By the continuous purity monitoring you can detect changes within a machine very quickly. -
Page 8: Technical Data
Measuring range acc. to ISO 4406:99 0 … 24 (ordinal number) Calibrated measuring range 10 … 22 (ordinal number) Measuring accuracy ± 1.0 (ordinal number) © Hydrotechnik GmbH • All rights reserved Page 8 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN... -
Page 9: Dimensional Drawing
4.1. Installation Location Please observe these hints when choosing an installation location: • Connect Patrick with a T-branch to a bypass pressure line. • The flow direction is arbitrary. • There should be constant pressure conditions at the installation location. The pressure may vary, but there may not be pressure peaks or large alternations. -
Page 10: Installation
Connect two fluid lines to the Minimess test points. Mount the particle counter using the mounting points at the rearside of the device. © Hydrotechnik GmbH • All rights reserved Page 10 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN... -
Page 11: Elektrical Connection
The device may be installed by qualified staff, only. Obtain the national and international regulations for the installation of electrical plants and install the power supply in accordance to EN50178, SELV, PELV, VDE0100-410/A1. Use the Hydrotechnik power pack 8812-00-00.36 together with the Y-distributor 8808-50-01.03. -
Page 12: Switching Output
4 and 24 are used for display. Use this formula to calculate the ordinal number of the purity class from the measured current: Formula in mA Result Ordinal No 3.25 × − 9.75 − 16.25 © Hydrotechnik GmbH • All rights reserved Page 12 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN... -
Page 13: Sequential Data Output
© Hydrotechnik GmbH • All rights reserved Page 13 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN... -
Page 14: Menu Tree
Patrick the Particle Counter Operating Instructions 5.2. Menu Tree © Hydrotechnik GmbH • All rights reserved Page 14 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN... -
Page 15: Select Operation Mode
ISO 4406:99 purity levels of 15 and better should be re-measured after 120 seconds, latest. Patrick can be used in three operation modes that can be selected in the menu: Time controlled meas. Patrick works with the set sample time and a delay time between the measurements;... -
Page 16: Analog Settings
Patrick the Particle Counter Operating Instructions Alarm memory Here you select the reaction of Patrick in case of an alarm. This can either be disabled automatically (set to „Auto off“) or remain active until confirmed by the operator. Smoothing Here you may set an average calculation preventing alarms for a single extreme value. Open the function and set the desired number of values used to calculate the average. -
Page 17: Display Settings
The display limits (bar chart) are between L = 100 ml/min and H= 400 ml/min. The L (low) starts flashing, if the volume flow rate falls below 100 ml/min. Patrick continues measuring correctly down to the minimal flow rate of 50 ml/min. -
Page 18: Communication Settings
6.1. Serial interface configuration Patrick can be readout and configured via the serial interface. You will need a PC and an installed terminal software to do this. Connect Patrick to an available COM port of the computer. A suited communication cable for the serial connection between sensor and PC/control can be ordered from Hydrotechnik. - Page 19 20020208h SAE6µm, 1 byte in 2002h, sub 02 be mapped PDO mapping for fourth application object to unsigned 33 20020308h SAE14µm, 1 byte in 2002h, sub 03 be mapped © Hydrotechnik GmbH • All rights reserved Page 19 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN...
- Page 20 16 flow rate index (0 … 400) 2020h command unsigned 8 1 = start measurement 2 = stop measurement © Hydrotechnik GmbH • All rights reserved Page 20 of 21 Rev. 1.8 / 2012-11-29 • L3160-00-76.00EN...
-
Page 21: Troubleshooting
Hydrotechnik cables Identic values in all size classes air in the oil connect Patrick at pressure side; increase distance to the pump Fault measurement of analog current outputs wrong parameter emitted correct the value assignments to the current outputs...
