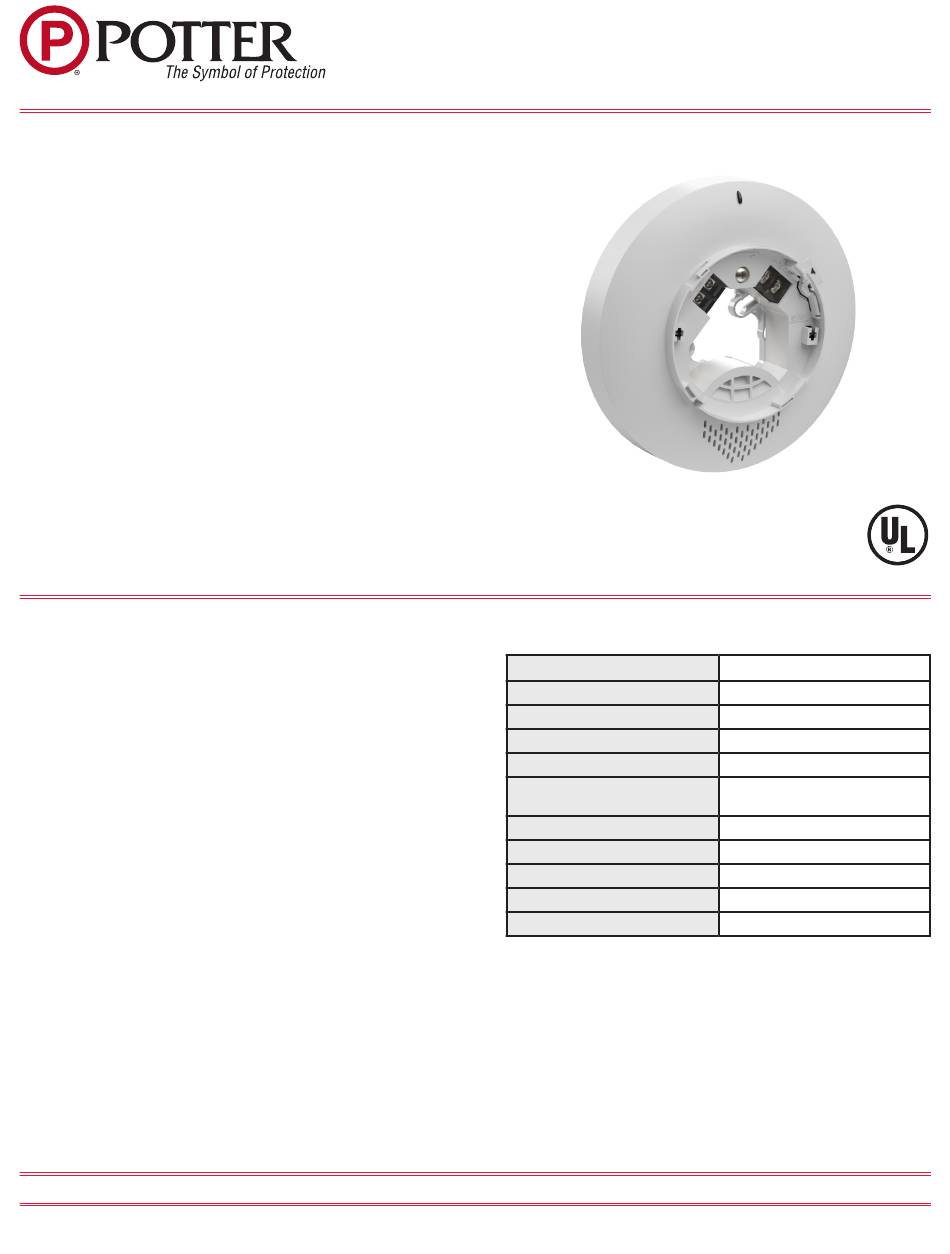

Potter PAD300-LFSB Quick Start Manual

Features

• Addressable low frequency sounder base, allows for single
station, grouped or all call activation
• May be mapped to any device connected to the control panel
• Terminals accept 22 to 12 AWG wire sizes
• Supports Class A, Class X and Class B wiring
• Does not require SLC Loop address, uses PAD sub point
addressing feature
• Complies with the Low Frequency Signal Requirements per
NFPA 72 and UL 464 for Audible Signaling Devices
• 24 VDC Sounder base power connection supervised internally
by each sounder base. No external power supervision relays
required
• UUKL Listed for smoke control

Description

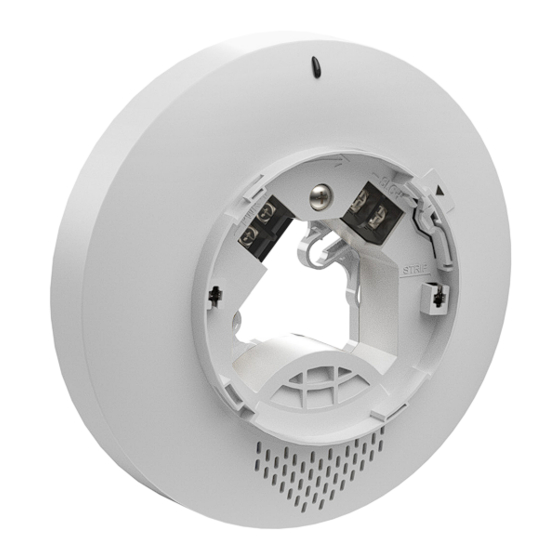

The Addressable Low Frequency Sounder Base (PAD300-LFSB) is a
sounder base that may be utilized in a variety of applications. The base
has a locking feature for the detector that may be used or removed in
the field. Once the head is removed, the sounder is accessible in the
bottom of the unit.
The PAD300-LFSB low frequency sounder base is designed to meet
NFPA 72 sleeping space requirements to produce a frequency of 520
Hz +/- 10% with a square wave.
It is shown that a lower frequency, centered around 520 Hz, is the ideal
to awaken sleeping occupants, even those with mild to severe hearing
loss.
The base has an independent sounder module that may be programmed
as a single station, zone or all call sounder. The PAD300-LFSB
passes through the sound pattern sent to the sounder, therefore it may
reproduce in any pattern the power supply provides.
The PAD300-LFSB does not consume an address on the loop and
is fully programmable to operate with any input. Once activated the
sounder will also follow the input from the power source and de-
activate accordingly.
Potter Electric Signal Company, LLC
Addressable Low Frequency Sounder Base

Technical Specifications

• St. Louis, MO •
•
8830213- REV A
PAD300-LFSB
SLC Voltage
SLC Standby Current
PWR Voltage
PWR Active Current
Alarm LED Current
Sound Pressure Level
Installation Temperature Range
Operating Humidity Range
Dimensions
Weight
Height
Phone: 800-325-3936
10/22
24VDC
300 µA
16-33 VDC
155mA
1.4mA
75dB @ 10ft per UL464
85dB @ 10ft per UL268
32 to 150°F (0°C to 66°C)
< 93% (Non-condensing)
6.4in (163 mm)
240 g (8.47 oz)
1.57 in (40 mm)
• www.pottersignal.com
PAGE 1 OF 2
