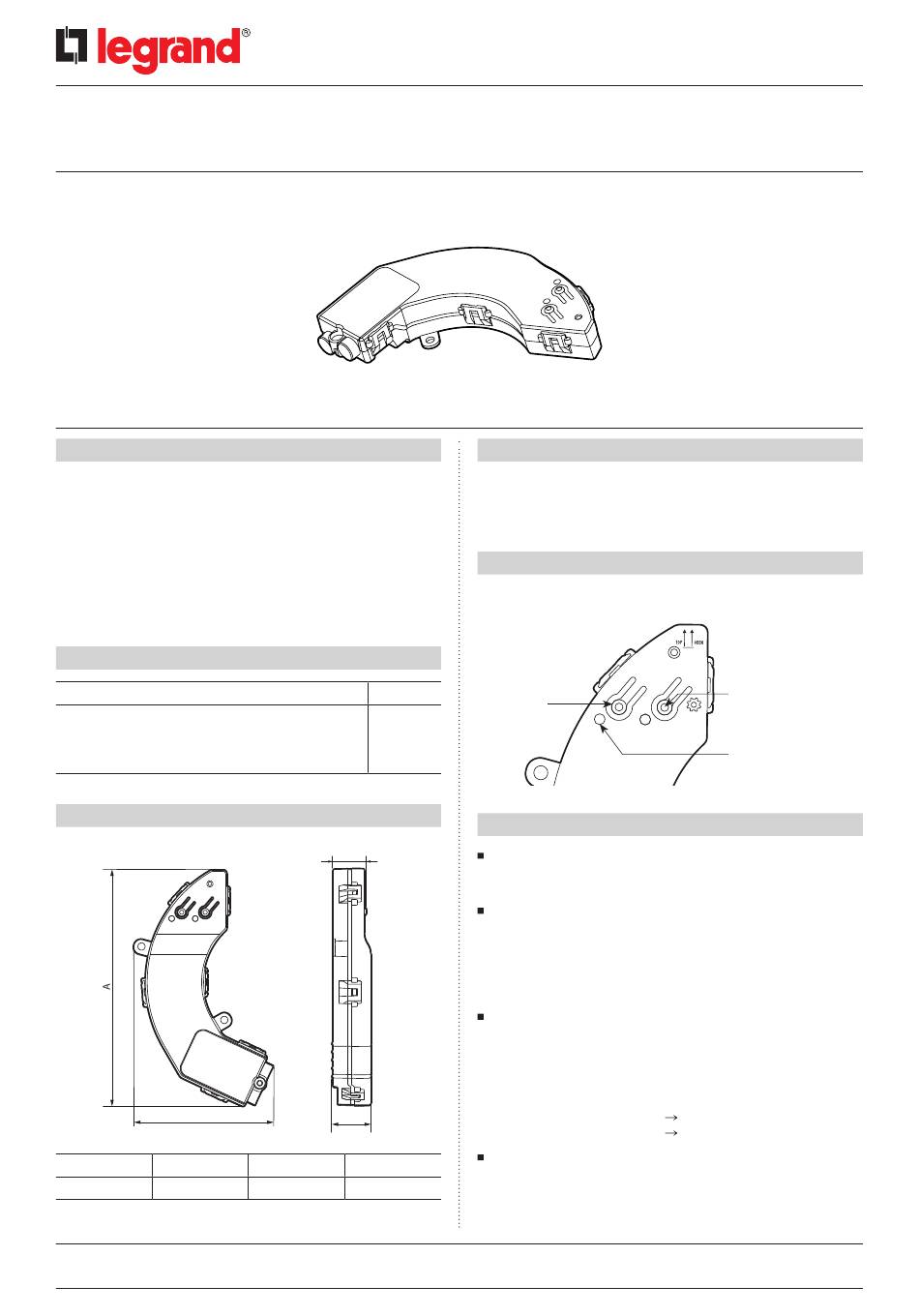

LEGRAND 0 676 97 Manual

Connected micromodule for roller shutters
and orientable sun shades
1. USE
Connected micromodule for local or remote control of a roller shutters.
Can be combined with one or more wireless roller shutters controls.
Compatible with roller shutters with a mechanical or electronical
Caution: Must be connected to the neutral.
Not compatible with radio-controlled roller shutter motors.
Installs with screws in the attic or in the box of the shutter.
Self calibration function to enable roller shutters level control.
Orientable sun shades control function (to be selected in Home + Control
App).
2. RANGE
Description
Connected micromodule for roller shutters and orien-
table sun shades.
Equiped with an LED indicator (configuration)
and a RESET button used to return to factory settings.
3. DIMENSIONS (mm)
B
A B
131 77
Technical data sheet: F03074EN/01
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel.: 33 (0)5 55 06 87 87 - Fax: 33 (0)5 55 06 88 88
www.legrand.com
stop.
Cat. No.
0 676 97
C
D
C D
18.5 21.5
Updated: 17/06/2022
4. CONNECTION
Type of terminals: with screws
Terminals capacity: 1 x 2.5 mm - 2 x 1.5 mm
2
Stripping length: 8 mm
Srewdriver: 3 mm flat blade
5. OPERATION
Integrated time delay for up/down inversion = 500 ms
UP for test
6. TECHNICAL CHARACTERISTICS
6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid/bodies and liquids: IP 44
6.2 Material characteristics
PC: Grey RAL 7035
Halogen-free
Self-extinguishing:
850°C/30 s for insulating components holding live parts in place.
650°C/30 s for other insulating components.
6.3 Electrical characteristics
Frequency bands: 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
Standby consuption: 1,3 mA
Voltage: 100/240 V~
Current: 2 A
Roller shutter motor: 240 Vac max.
100 Vac max.
6.4 Climate characteristics
Usage temperature: - 5°C to + 50°C
Storage temperature: - 10°C to + 70°C
Cat. No(s): 0 676 97
2
RESET button
used to return
to factory settings
LED indicator:
useful during installation
for configuration
1 x 500 VA
1 x 270 VA
Created: 02/12/2019
1/2
