LEGRAND 0 676 94 Quick Start Manual

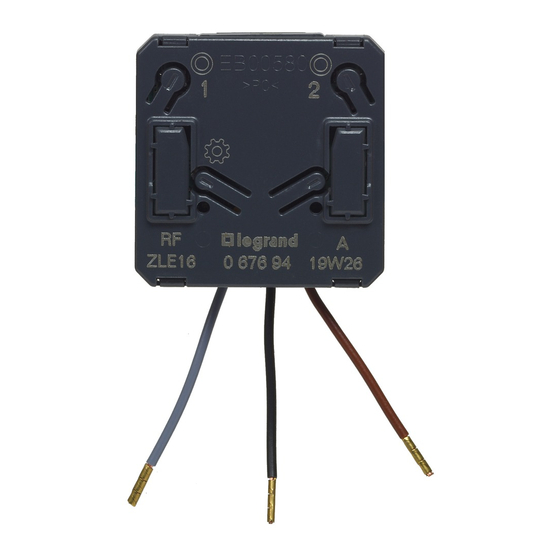

Connected ON/OFF wireless module
for switch and push-button
1. USE
Wireless control for one ON/OFF light function or connected socket.
Transform a mechanical switch or push-button into a wireless ON/OFF
switch.
Only controls one connected switch or one connected lighting micro-
module, or one connected cable outlet or one connected socket outlet
"...with Netatmo".
Can be used as two-way switch.
Installs in the wall box of the switch or push-button.
2. RANGE
Description
Wireless control for one ON/OFF light function
or connected socket.
Supplied with battery.
Equipped with an LED indicator (configuration) and
a RESET button used to return to factory settings.
3. DIMENSIONS (mm)
B
A
40

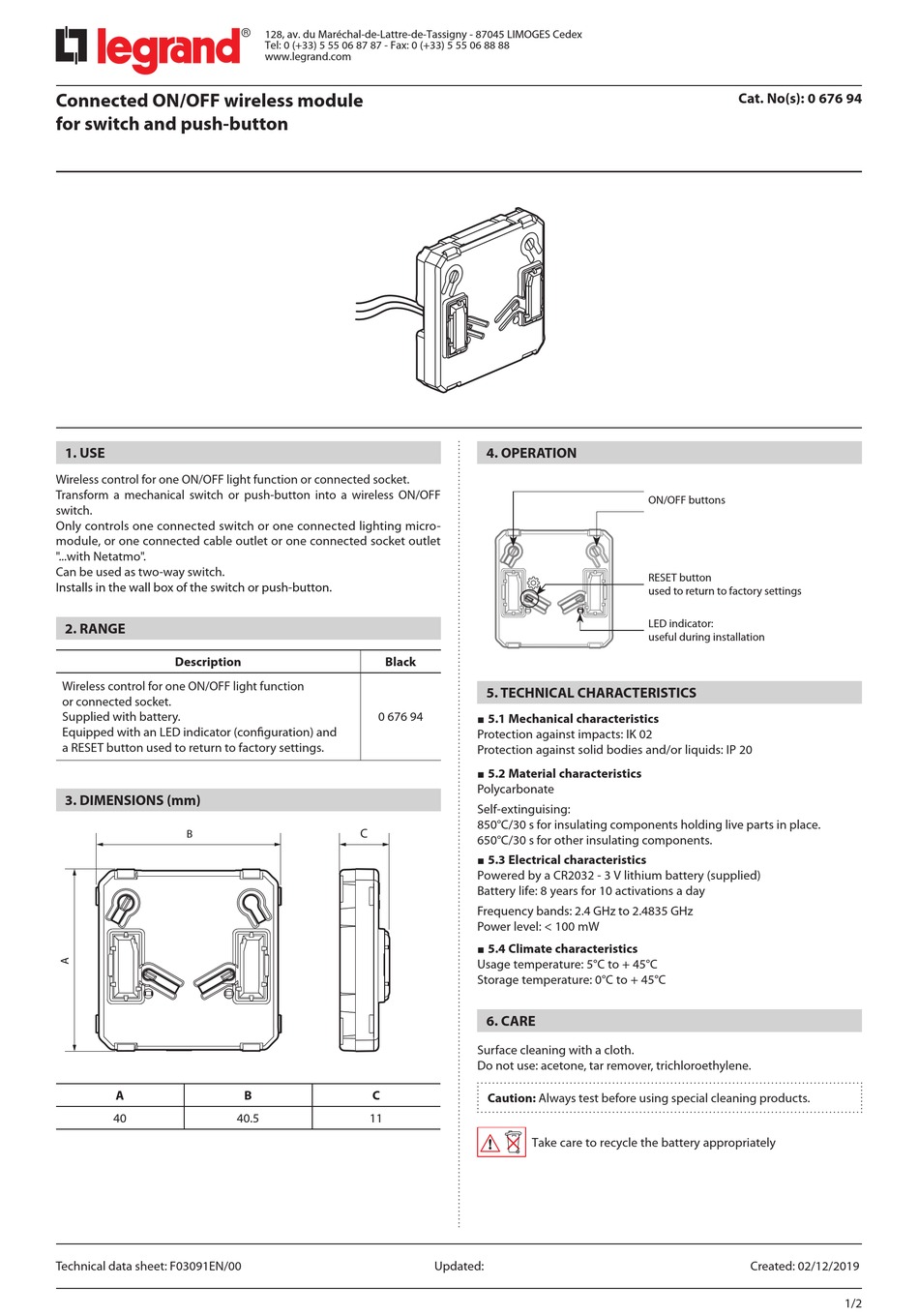

Technical data sheet: F03091EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: 0 (+33) 5 55 06 87 87 - Fax: 0 (+33) 5 55 06 88 88
www.legrand.com
Black
0 676 94
C
B C
40.5 11
4. OPERATION
5. TECHNICAL CHARACTERISTICS
 5.1 Mechanical characteristics
Protection against impacts: IK 02
Protection against solid bodies and/or liquids: IP 20
 5.2 Material characteristics
Polycarbonate
Self-extinguising:
850°C/30 s for insulating components holding live parts in place.
650°C/30 s for other insulating components.
 5.3 Electrical characteristics
Powered by a CR2032 - 3 V lithium battery (supplied)
Battery life: 8 years for 10 activations a day
Frequency bands: 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
 5.4 Climate characteristics
Usage temperature: 5°C to + 45°C
Storage temperature: 0°C to + 45°C
6. CARE
Surface cleaning with a cloth.
Do not use: acetone, tar remover, trichloroethylene.
Caution: Always test before using special cleaning products.
Take care to recycle the battery appropriately
Updated:
Cat. No(s): 0 676 94
ON/OFF buttons
RESET button
used to return to factory settings
LED indicator:
useful during installation
Created: 02/12/2019
1/2
