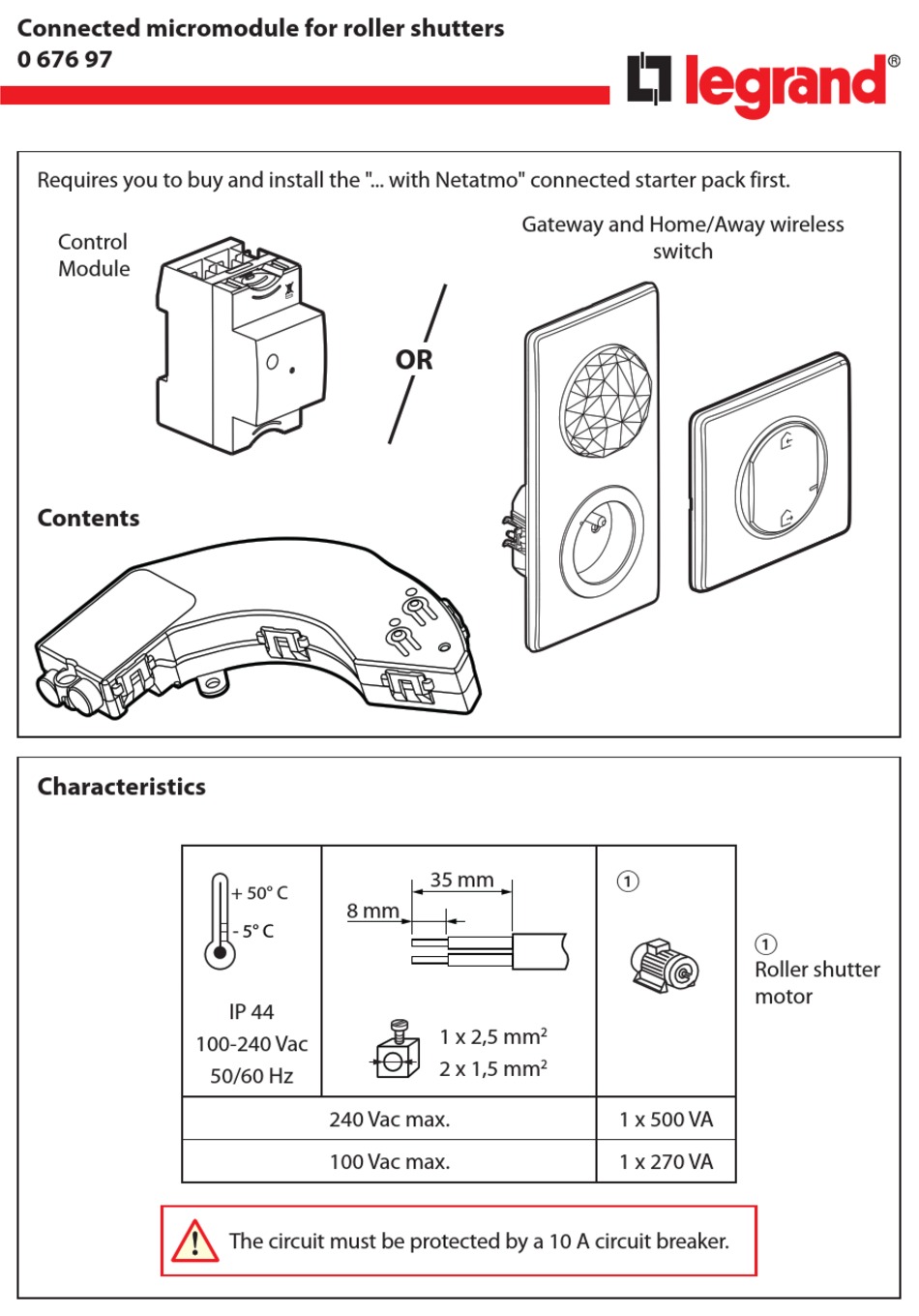

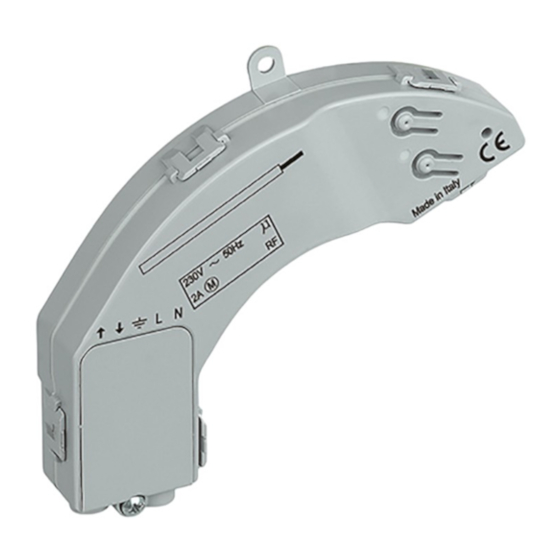

Connected micromodule for roller shutters
0 676 97
Requires you to buy and install the "... with Netatmo" connected starter pack first.
Control
Module
Contents
Characteristics
+ 50° C
8 mm
- 5° C
IP 44
100-240 Vac
50/60 Hz
240 Vac max.
100 Vac max.
The circuit must be protected by a 10 A circuit breaker.
Gateway and Home/Away wireless
OR
35 mm
1 x 2,5 mm
2
2 x 1,5 mm
2
switch
1
1
Roller shutter
motor
1 x 500 VA
1 x 270 VA
