Wireless and batteryless lighting control

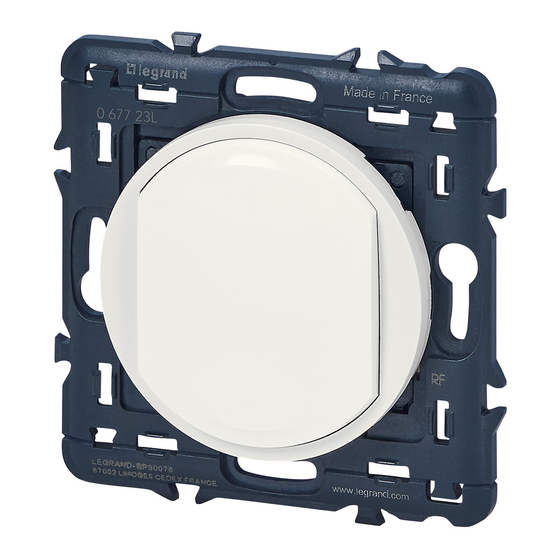

0 677 23L/73L/79L
0 770 53L - 6 000 83L
5 742 10/39/55 - 5 743 24
7 418 13L/43L/73L
Requires to install the connected starter pack and one or more «... with Netatmo» connected switch, micromodule
or socket outlet.

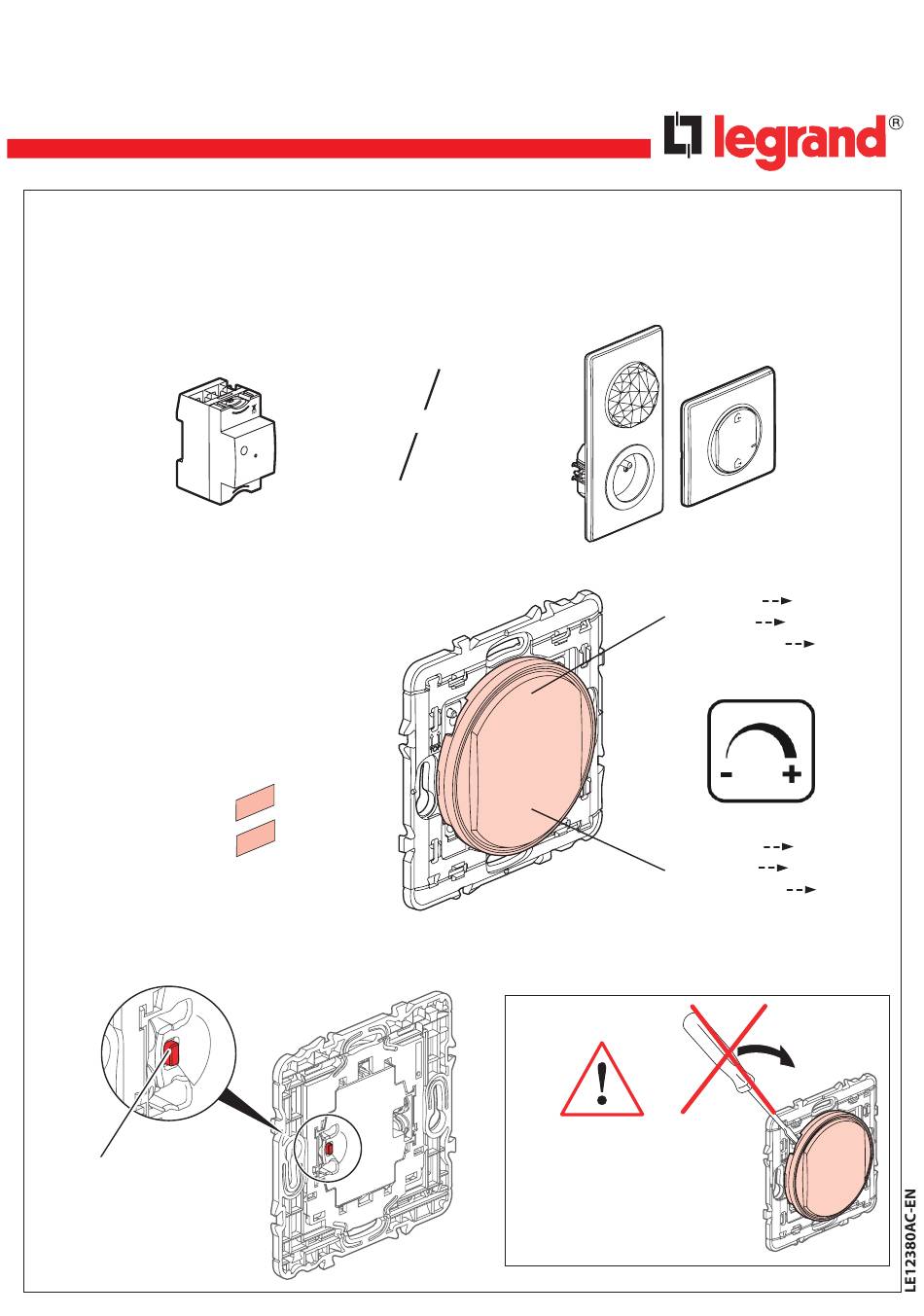

Module Control
Pack contents:
Setup button
Wireless, batteryless
lighting control
Stickers
x2
Gateway power outlet and home/
away wireless master switch
Or
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 20 mW
Do not remove
the cover plate
Short push
ON/OFF
Long push
Dim +25%
(2 short pushs
OFF)
Short push
ON/OFF
Long push
Dim -25%
(2 short pushs
OFF)
