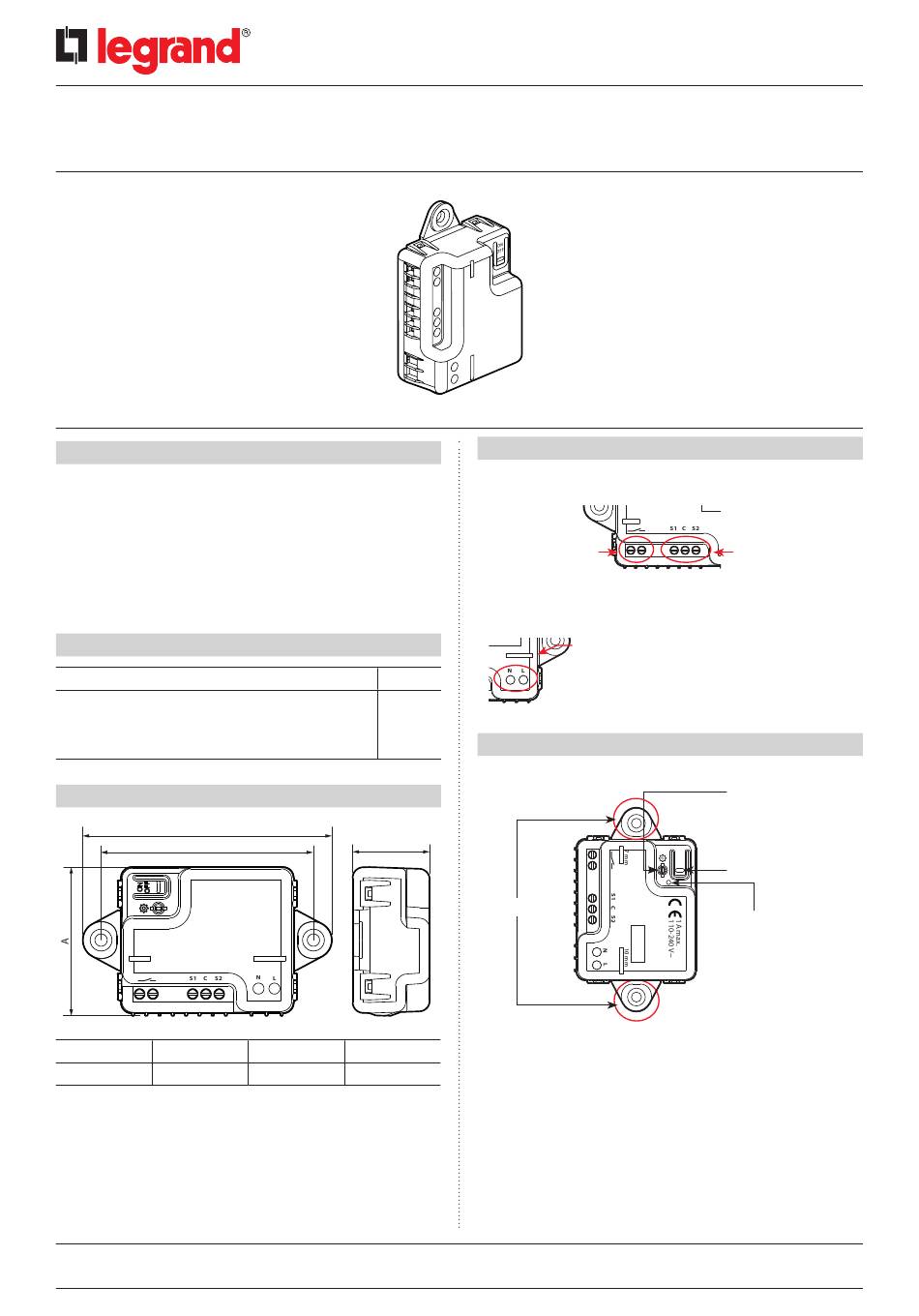

LEGRAND 0 676 96 Manual

Connected module for motorized garage
and gate control

1. USE

Connected module.
Enables ti open an close any type of gate and garage door in local,
remote or by voice (via a voice assistant).
Status display (open/closed/blocked) in Home + Control App.
Can be controlled by a wireless shutter control.
Requires prior the installation of a "with Netatmo" starter pack.
Zigbee 3.0 compatible.
Equipped with 2 breakable fixation joints for Plexo box 105 x 105 mm.
Installation possible in Plexo box IP55 80 x 80 mm or higher.

2. RANGE

Description

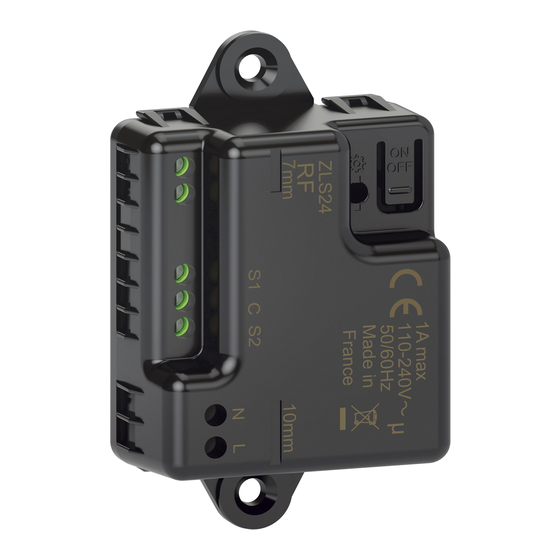

Connected module for motorized garage and gate control.
Delivered with 2 wired position sensors (3 m).
Equipped with an LED indicator (configuration) and a
RESET button (hidden) used to return to factory settings.

3. DIMENSIONS (mm)

B
C
7 mm
A B
56 94
Technical data sheet: F03831EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: 33(0)5 55 06 87 87 - Fax: 33(0)5 55 06 88 88
www.legrand.com
7 mm
Cat. No.
0 676 96
D
10 mm
C D
80 29

4. CONNECTION

Type of terminals: with screws
Dry contact output
to engine
Terminal capacity: 1 x 1.5 mm
1A max.
Stripping length: 7 mm
110-240 V~
Neutral / Live
10 mm
Terminal capacity: 2 x 1.5 mm
Stripping length: 10 mm

5. OPERATION

Breakable parts
Updated:
Cat. No(s): 0 676 96
1A max.
110-240 V~
7 mm 10 mm
Entries for position
sensors
2
2
RESET button
used to return to factory
settings
ON
OFF
Open/closed button
LED indicator:
useful during installation
for configuration
Created: 24/10/2022
1/2
