Guldmann GLS5.2 Quick Manual

8
6
4
18
3
3
13
14
15
16
17
Operators check list before use
• Make sure the lifter is moving freely on its castors.
• Operate the brakes (10) to make sure they are
w orking.
• Lift & lower the lifting boom (2) via the control
buttons (16) on the hand control (8).
• Check that the base adjustment (17) is opening
and closing, via the hand control (8).
• Check the emergency function up/down by
pressing the buttons (17) on the control box (3).
Check the manual function by turning the knob
(7) in the direction of the arrow.
• Check that the emergency stop button (6) is
working. To release the emergency stop, take off
battery by pushing buttons on battery sides, and
pull battery out and push in place again.
Quick Guide - GLS5.2 Active Lifter
5
3
10
2
1
7
12
9
11
• Release Knee pad adjustment knobs x 2 (12)
the pad should move up / down and slide in / out,
tighten to lock.
• Make sure footplate (11) is secure and clean.
Charging options
• Charger integrated in control box - plug net
cable into power socket.
• When the power is plugged in, the green LED
light on the control box lights up.
• The green and yellow diode on the control
box (3) illuminates during charging, when fully
charged the yellow diode turns off.

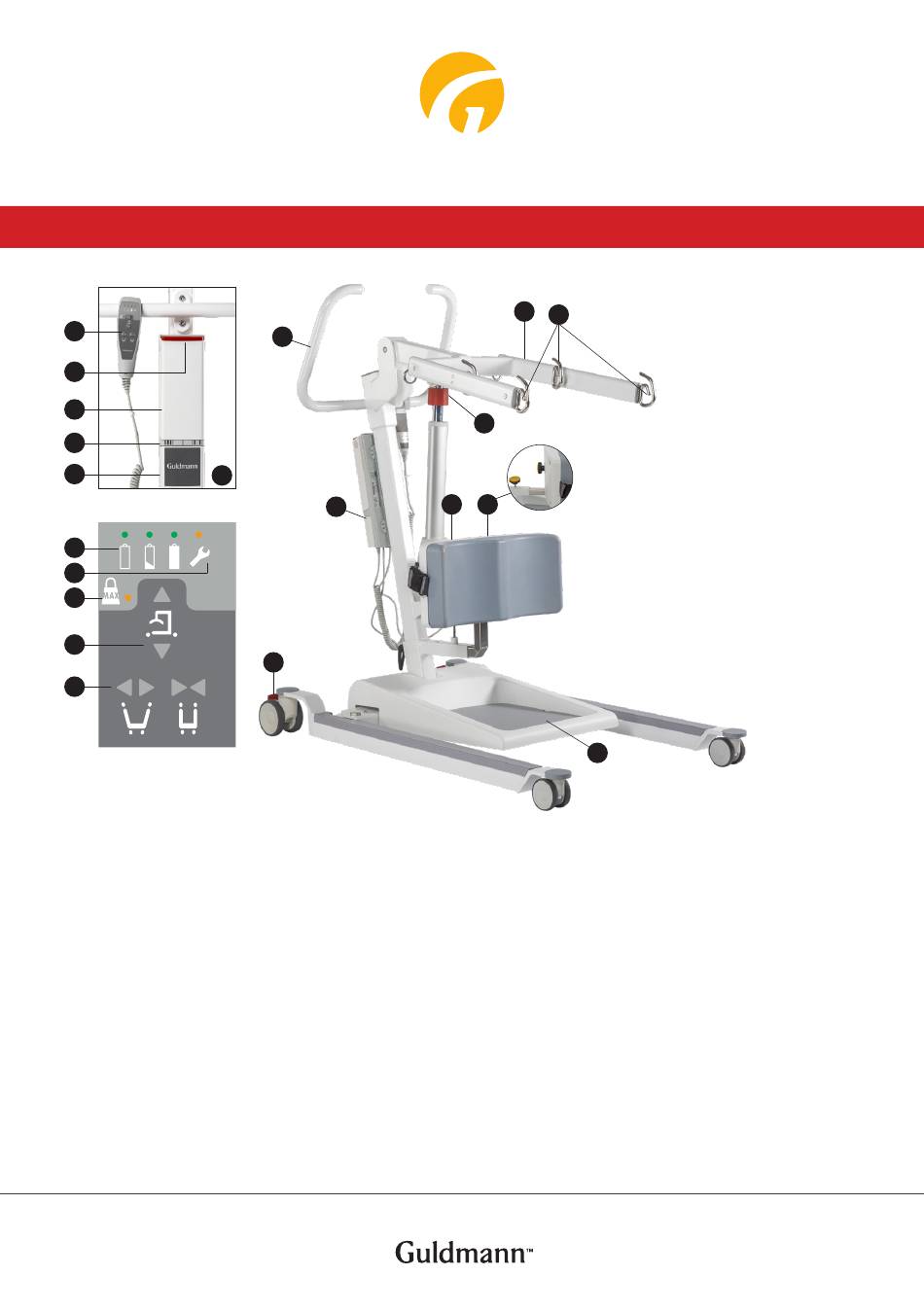

1. Sling attachment hooks
2. Lifting boom
3. Control box
4. Battery
5. Push handle
6. Emergency stop
7. Emergency lowering
manual
8. Hand control
9. Actuator
10. Rear braked castor
11. Foot plate
12. Knee pad & adjustment
knobs x 2
13. Battery indicator
14. Service indicator
14. Overload indicator
16. Lifting boom up/down
17. Base adjustment
18. Emergency function
up/down, battery-,
service- and overload
indicator
