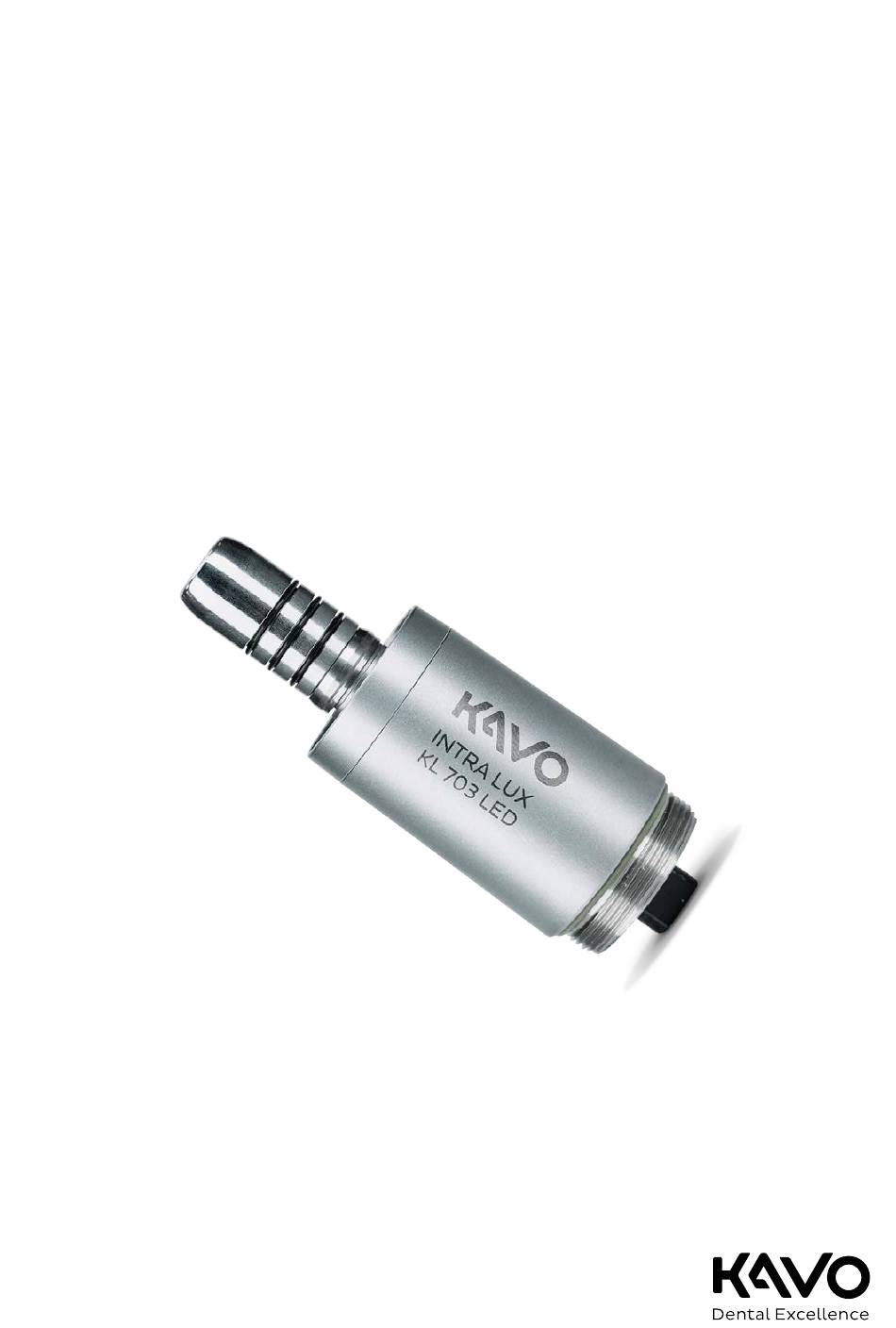

- Page 1 Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150...
- Page 2 Manufacturer: Distribution: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
6 Checking for malfunctions and troubleshooting ............... 18 6.1 Checking for malfunctions before initial start-up..............18 6.2 Troubleshooting......................18 6.2.1 Replacing the KaVo Mini LED lamp ..............19 6.2.2 Replacing the O-rings ..................19 7 Reprocessing steps in accordance with ISO 17664-2............20 7.1 Preparations at the site of use.................. -
Page 4: User Instructions
KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using https://www.kavobox.com. KaVo Technical Service If you have any questions or complaints, please contact the KaVo Technical... - Page 5 Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 1 User instructions Information on the packaging Material number Serial number Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices EAC conformity mark (Eurasian Conformity) Medical device, labelling of medical devices Transportation and storage conditions...
- Page 6 Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 1 User instructions CAUTION In cases which – if not prevented – can lead to minor or moderate injury. CAUTION In cases which – if not prevented – can lead to material damage. 6 / 28...
-
Page 7: Safety
4 Do not use the product in the vicinity of flammable gases. 2.3 Electrical shock Connecting a non-KaVo system to the medical device can lead to electrical shock and injury to patient, user and third parties. 4 During installation and operation of the product on treatment devices and equipment from other manufacturers, comply with the provisions of "Protec-... -
Page 8: Electromagnetic Fields
4 Control equipment for changing the speed and the direction of rotation must be present. 4 The medical device may only be combined with a treatment centre / control unit released by KaVo. 4 Comply with the Instructions for Use of the treatment centre / control unit. 8 / 28... -
Page 9: Qualification Of Personnel
Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts such as covers may become undone and injure the patient, user or other people. -
Page 10: Disposal
2.11 Disposal This product is subject to the EC directive governing waste electrical and elec- tronic devices and must be submitted to special disposal in Europe. 4 For further information, please contact KaVo or a specialised dental dealer. 10 / 28... -
Page 11: Description Of The Product

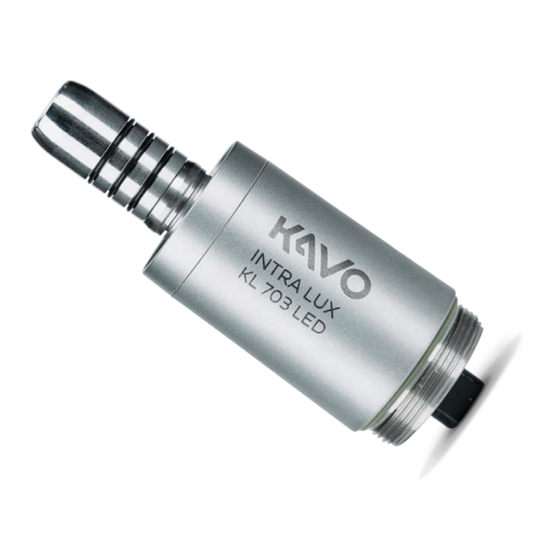

Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 3 Description of the product | 3.1 Intended use 3 Description of the product INTRA LUX Motor KL 703 LED (Mat. no. 1.007.0150) The motor is a brushless DC motor (BLDC). 3.1 Intended use Indications for use: The sterilisable motor is:... -
Page 12: Technical Specifications
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 3 Description of the product | 3.2 Technical Specifications 3.2 Technical Specifications NOTE The motor may only be combined with the specified motor electronics. NOTE Technical specifications, such as torque and speed, depend on the motor elec- tronics used and may deviate from the data given if other controls are used in combination with the motor. - Page 13 4 With Safedrive technology: suitable for operation of the KL 703 LED motor NOTE Do not exceed the specified upper voltage limit of 3.6 V DC on the KaVo Mini LED lamp. Triggering of the light source (LED) Rated voltage of the KaVo Mini LED 3.4 V DC...
-
Page 14: Transportation And Storage Conditions
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 3 Description of the product | 3.3 Transportation and storage conditions Ambient conditions Temperature C to +35 C (50 F to 95 Maximum humidity < 80 % relative Atmospheric pressure 700 hPa to 1060 hPa (10 psi to 15 psi) 3.3 Transportation and storage conditions CAUTION... -
Page 15: Startup And Shut Down
Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system. -
Page 16: Operation
20 to 30 seconds after each patient. 5.1 Connecting the motor to the supply hose 4 Apply a small amount of KaVo Spray to the O-rings on the supply hose. 4 Connect the motor to the supply hose and twist. -
Page 17: Removing An Instrument From The Motor
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 5 Operation | 5.4 Removing an instrument from the motor 5.4 Removing an instrument from the motor 4 Pull the instrument off the motor in axial direction. 17 / 28... -
Page 18: Checking For Malfunctions And Troubleshooting
4 If the intensity of the KaVo Mini LED lamp is low, increase the cold light in- tensity on the unit. 4 If the KaVo Mini LED lamp glows red or not at all, turn the KaVo Mini LED lamp by 180° and insert it. -
Page 19: Replacing The Kavo Mini Led Lamp
4 Do not touch lamp after previous operation. Allow the lamp to cool down. 4 Pull the sleeve off while twisting it slightly. 4 Push the old KaVo Mini LED lamp out of the mount with your fingernail and remove it. -
Page 20: Reprocessing Steps In Accordance With Iso 17664-2
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 7 Reprocessing steps in accordance with ISO 17664-2 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664-2 7.1 Preparations at the site of use WARNING Hazard from contaminated products. -
Page 21: Manual Internal Cleaning
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 7 Reprocessing steps in accordance with ISO 17664-2 | 7.2 Manual reprocessing CAUTION Use of the disinfection bath or chloride-containing disinfectants. Malfunction and material damage. 4 Do not disinfect the device in the disinfection bath or with chloride-contain- ing disinfectants. -
Page 22: Automated Reprocessing
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 7 Reprocessing steps in accordance with ISO 17664-2 | 7.3 Automated reprocessing 4 If there is any residual moisture after cleaning and disinfecting, soak up the residual moisture with a soft cotton cloth and then wipe dry. 4 Carefully apply low doses of compressed air to the inside and outside of the disassembled sleeve until no droplets of water are visible any longer. -
Page 23: Sterilisation
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 7 Reprocessing steps in accordance with ISO 17664-2 | 7.6 Sterilisation 7.6 Sterilisation Sterilisation in a steam steriliser (autoclave) in accordance with EN 13060 / EN ISO 17665-1 CAUTION Contact corrosion due to moisture. -
Page 24: Consumables
Instructions for use INTRA LUX Motor KL 703 LED – 1.007.0150 8 Consumables 8 Consumables Available from specialised dental dealers. Material summary Mat. No. KaVo Mini LED lamp 1.007.8474 O-ring 8.3x0.68 0.200.6120 Airflow measuring tube 0.411.4441 Sphere 1.007.7847 24 / 28... -
Page 25: Terms And Conditions Of Warranty
36 months from the date of the invoice, subject to the following conditions: In case of justified complaints KaVo shall honour its warranty with a free re- placement or repair. Other claims of any kind whatsoever, in particular with re- spect to compensation, are excluded.
