Operating Instructions
ELECTROtorque plus 4892.
INTRA LUX KL 700/KL 701.
Always on the safe side.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTRA LUX KL 700 and is the answer not in the manual?

Questions and answers

Related Manuals for KaVo INTRA LUX KL 700

Summary of Contents for KaVo INTRA LUX KL 700

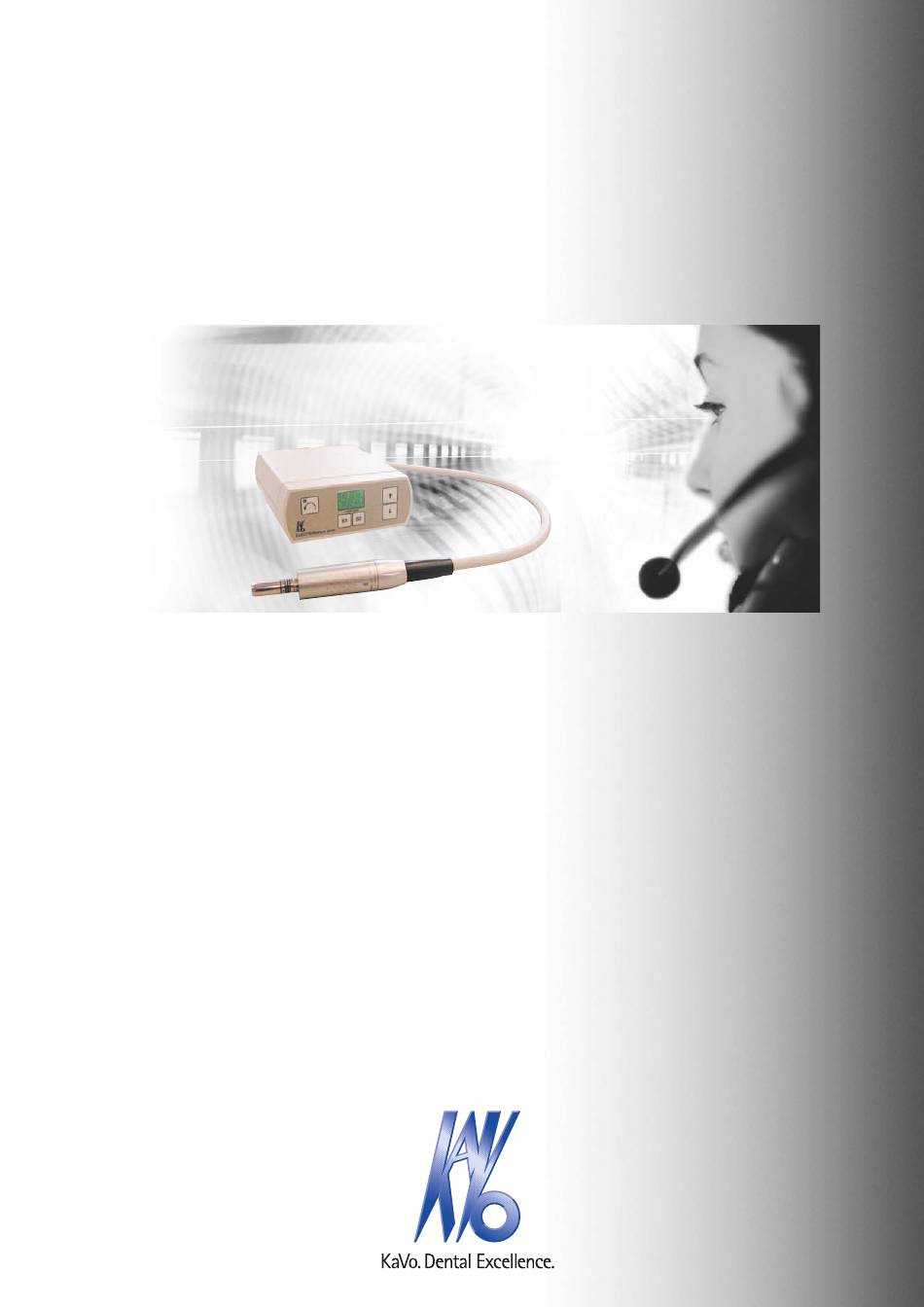

  • Page 1 Operating Instructions ELECTROtorque plus 4892. INTRA LUX KL 700/KL 701. Always on the safe side.
  • Page 2 Hersteller/manufacturer: KaVo Dental GmbH Bismarckring 39 Kaltenbach & Voigt GmbH D-88400 Biberach Bismarckring 39 Tel.: 0 73 51 / 56-0 • Fax: 0 73 51 / 56 -14 88 D-88400 Biberach...

  • Page 3: Table Of Contents

    ELECTROtorque plus 4892. User information ................................2 A 1.1 Meaning of the pictograms ............................2 A 1.2 Important information ..............................2 A 1.3 Safety measures ................................4 A 1.4 Purpose and potential applications ..........................6 A 1.5 Cleaning and care of the unit ............................6 A 1.6 Disinfecting the unit ..............................7 Scope of delivery - accessories ............................8 A 2.1 Scope of delivery ................................8 Technical data ..................................9...

  • Page 4: A 1 User Information

    If other language versions are required, please request these from KaVo. Duplication and distribution of the operating instructions require prior consent from KaVo. All technical data, information and...
  • Page 5 ELECTROtorque plus 4892. The following are authorized to repair and service the KaVo ELECTROtorque plus 4892: • the engineers of KaVo agents through- out the world • the engineers of authorised KaVo dealers who have been specially trained by KaVo •...

  • Page 6: A 1.3 Safety Measures

    ELECTROtorque plus 4892. A 1.3 Safety measures Each time before using a unit, the user must ascertain that it is operating safely and is in the proper condition.Check that set values are correct for use. The unit must not be further operated if any functional parts are damaged.
  • Page 7 The general guidelines and/or national laws applicable to medical products, national regulations and the rules of industry for commissioning and during operation must be applied to the KaVo product in accordance with the prescribed purpose and must be fulfilled. Electromagnetic compatibility...

  • Page 8: A 1.4 Purpose And Potential Applications

    ELECTROtorque plus 4892. A 1.4 Purpose and potential applications The ELECTROtorque plus 4892 is a dental treatment unit for operation of a dental revers e x1000 rpm ELEC TROt S 1 S 2 orque plus electrically operated or air-operated drive for straight and contra-angle dental handpieces (INTRAmatic LUX 700 KL or INTRA LUX motor KL 701 ).

  • Page 9: A 1.6 Disinfecting The Unit

    = max. 10 mg / 100 g of disinfectant Formaldehyde solution = max. 10 mg / 100 g of disinfectant Glyoxal = max. 165 mg / 100 g of disinfectant KaVo will assume no liability if the preparations used contain ingredients differing from those stated by us.

  • Page 10: A 2 Scope Of Delivery - Accessories

    ELECTROtorque plus 4892. A 2 Scope of delivery - accessories Check that the system is complete. A 2.1 Scope of delivery ELECTROtorque plus 4892 Mat.-No. 1.001.9928 consisting of: ELECTROtorque (with 2000 mm long tube) Mat.-No. 1.001.2876 0 rp e rs re v motor: INTRAmatic LUX 700 KL p lu...

  • Page 11: A 3 Technical Data

    ELECTROtorque plus 4892. A 3 Technical data A 3.1 ELECTROtorque plus 4892 Dimensions and weights width: 5 inches depth: 6 inches height: 2 inches weight: 780 grams Ambient conditions: Permitted indors e r s r e v p lu o r q Permitted ambient temperature range of 41°F - 104°F (5°C - 40°C) Permitted relative humidity up to max.
  • Page 12 ELECTROtorque plus 4892. Rating plate ELECTROtorque plus 4892 It provides information on: @ Manufacturer 2 Protection art IP 40 3 Year of manufacture 4 CE mark according to 93/42/EEC Medical Product 5 Protection class II 6 VDE-symbol 7 Important: see accompanying documents and safety information.

  • Page 13: A 3.2 Transformer 4880

    ELECTROtorque plus 4892. A 3.2 Transformer 4880 Technical data Transformer 1.001.8749 Dimensions and weights Width: 4 inches Depth: 6 inches Height: 3 inches Weight: ca. 1400 gramms Ambient conditions: Permitted indors Permitted ambient temperature range of 41°F - 104°F (5°C - 40°C) Permitted relative humidity up to max.
  • Page 14 ELECTROtorque plus 4892. Rating plate transformer 1.001.8749 It provides information on: @ Manufacturer ” Fuse 1,25 A ” 3 Year of manufacture 4 CE mark according to 93/42/EEC Medical Produc 6 mode of operation Intermittent operation 1 min. pause 9 min. 7 Important: see accompanying documents and safety information.

  • Page 15: A 3.3 Intramatic Lux Motor 700 Kl

    ELECTROtorque plus 4892. A 3.3 INTRAmatic LUX motor 700 KL Dimensions and weights lenght: 6 inches (96 mm) 1 inches (22 mm) ∅ weight: 100 gramms Conditions: see also Operating Instructions INTRAmatic LUX 700 KL Mat.- No. 0.789.0664 A 3.4 INTRAmatic LUX motor 701 KL Dimensions and weights lenght: 6 inches (87 mm)

  • Page 16: A 5 Installation And Connection

    A 5.1 Installation The following are authorized to repair and service the KaVo ELECTROtorque plus 4892: • the engineers of KaVo agents through-out the world • the engineers of authorised KaVo dealers who have been specially trained by KaVo • independent engineers specially trained by KaVo.

  • Page 17: A 5.3 Connection Requirements

    • air flow for the handpiece, coming out from e- type connection, must be between 6 - 10 NL/min. this can easly be proofed with the KaVo flow meter 1 Mat.- No. 0.411.4441 Please push the flow meter upright on the motor and start the motor by pressing the foot control.

  • Page 18: A 6 Preparation For Commissioning

    ELECTROtorque plus 4892. A 6 Preparation for commissioning A 6.1 Calibration of the foot control At commissioning or when changing the compressed air conditions, the foot control 6 must be calibrated (with the motor stationary). Call up the “Calibration“ subroutine by pressing the keys 2 ↑...

  • Page 19: A 6.2 Motor Start Pressure

    ELECTROtorque plus 4892. A 6.2 Motor start pressure The pressure value for starting the motor is 1 bar. With 40.000 min minimum operating pressure 1.8 bar. 0 rp e rs re v p lu o r q e r s r e v p l u o r q...

  • Page 20: A 6.3 Setting The Lamp Voltage

    ELECTROtorque plus 4892. A 6.3 Setting the lamp voltage The lamp voltage can be changed in the range from 3.0 V to 3.8 V (measured at the housing plug) with the motor switched off. The voltage at the lamp itself is 0,5 V below the set value.

  • Page 21: A 7 Controls And Functional Parts

    ELECTROtorque plus 4892. A 7 Controls and functional parts ELECTROtorque plus 4892 1 Basic unit 2 Control unit 3 “UP“ for speed increase 4 “DOWN“ for speed reduction 5 Display - Digital speed and fault indicator 0 rp e rs re v 6 S 2 user speed 2...
  • Page 22 ELECTROtorque plus 4892. Transformer 1.001.8749 1 bridge 2 rating plate 3 fuse holder 4 fuse 1,25 A slow 1.001.7115 (2x) 5 voltage selector...

  • Page 23: A 8 Operation

    ELECTROtorque plus 4892. A 8 Operation • ELECTROtorque plus 4892 must not be used without cooling air. • Dry, clean, contamination-free compressed air must be used. • Contaminated and humid compressed air will result in premature bearing wear. • The selected speed must not exceed the maximum allowed revolutions of the instrument to be used.

  • Page 24: A 8.2 Change Speed Preset

    ELECTROtorque plus 4892. A 8.2 Change speed preset Two speed presets can be activated by S1 5 or S2 4. The factory setting for S1 is 8000 min and 20.000 min-1 for S2. See the selected speed preset by pressing S1 5 or S2 4.

  • Page 25: A 8.4 Check The Motor Current

    ELECTROtorque plus 4892. A 8.4 Check the motor current This function is accomplished with running engine without load. An application at the patient is not permissible during this function. The technical customer service user can check the actual current of the motor, and have this displayed.

  • Page 26: A 9 Maintenance

    A 9 Maintenance The following are authorized to repair and service the KaVo ELECTROtorque plus 4892: • the engineers of KaVo agents through- out the world • the engineers of authorised KaVo dealers who have been specially trained by KaVo •...

  • Page 27: A 10 Troubleshooting

    At all faults the motor is switched off. The following are authorized to repair and service the KaVo ELECTROtorque plus 4892: • the engineers of KaVo agents through- out the world • the engineers of authorised KaVo dealers who have been specially trained by KaVo •...
  • Page 28 ELECTROtorque plus 4892. F• Message: F 7 (Fault) C• Overcurrent in alternating current con- verter. Electronic or motor short curcuit. R• Let repair electronic control. F• Message: F 8 (Fault) C• Voltage by transformer to high ( internal Ur > 52V) R•...
  • Page 29 ELECTROtorque plus 4892. F• Message: F 22 (Fault) U• Communication with primary electro- nics causes fault B• Have the motor electronics or primary electronics repaired F• Message: F 24 (Fault) during calibra- tion U• Excessive pressure at the 4-hole connec- tor (>...

  • Page 30: B 1 Important Information

    ELECTROtorque plus 4892. B 1 Important information B 1.1 Transport and storage The packaging consists of board, Ethafoam and Styropor with supercorrugated cardboard as additional packaging. Information on transport and unpacking is printed on the outside. It applies to transport and storage. 1.

  • Page 31: B 1.2 What To Do In The Event Of Damage During Transport

    Contact KaVo, Shipping Department, within 4 days. Tel: (0 75 61) 86-0 In order to make any claims for the damage, KaVo requires the shipping note with confirmation of damage. On no account return damaged goods to KaVo before contacting KaVo.

  • Page 32: Guarantee Information

    Within the scope of the current Delivery and Payment Conditions, KaVo warrants the unit to be free from malfunctions, defects in both materials and workmanship for a period of six months from the date of purchase. At the end of this warranty period, KaVo provides a fur- ther 6-month guarantee for faults arising, which can be traced back to deficiencies in materials or the manufacturing process.

  • Page 33: Spare Parts

    ELECTROtorque plus 4892. 1.001.8631 Spare parts 1.001.9081 1.001.8321 e r s r e v p l u o r q 1.001.8748 0.200.6048 0.676.1000 1.001.8749 1.001.5113 1.001.7115 0.223.4142 DE 0.692.6881 CH 0.692.6891 US 0.692.6891 JP 0.692.6901 GB 0.692.6851 AU...
  • Page 34 ELECTROtorque plus 4892. Electromagnetic Transmissions The ELECTROtorque Plus Type 4892 is for use in an environment like the one cited below. The customer or user of the ELECTROtorque Plus Type 4892 should ensure that it is used in the correct environment. Measurements of noise Conformance Electromagnetic environment...
  • Page 35 ELECTROtorque plus 4892. Voltage 40% of U , interruption of 40% U , interruption of The quality of the supply interruptions, short- the U for 5 periods the U for 5 periods voltage should term interruptions 70% of U , interruption of 70% of U , interruption correspond to that of a...
  • Page 36 ELECTROtorque plus 4892. NOTE: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not be applicable in every case. The spread of electromagnetic waves is absorbed and reflected by buildings, objects and people. The ISM frequency bands (for industrial, scientific and medical applications) between 150 kHz and 80 MHz are 6.765 MHz to 6.795 MHz;...
  • Page 37 1.002.2982 - 12.05 - 3 Dear dentist: KaVo hopes that you will benefit greatly from working with your new quality product, the INTRA LUX motor KL 701. Please observe the following notes to assure continued trouble-free, economical and safe product...
  • Page 38 When the motor is installed and operated on treatment units and equipment from other manufacturers, the provisions of “Protection from electric shocks”, “Leakage current”, “Non-earthing of the application part” according to DIN EN IEC 60601-1 must be observed. The connected dental treatment unit must have controls for changing the speed range and for changing the direction of rotation.
  • Page 39 Clean the motor and sleeve. The O-rings on the motor must only be oiled by means of a cotton swab wetted with KaVo maintenance spray. Sterilization The INTRA LUX motor KL 701 cannot be...
  • Page 40 Do not continue use in the event of irregular operating noise, excessive vibration or if the heating of the motor is exceeding. To avoid further damage, please contact the KaVo After Sales Service at Biberach, or a KaVo authorised office or your Dental Depot.
