Package Contents
Installation Requirements
Create PDF in your applications with the Pdfcrowd

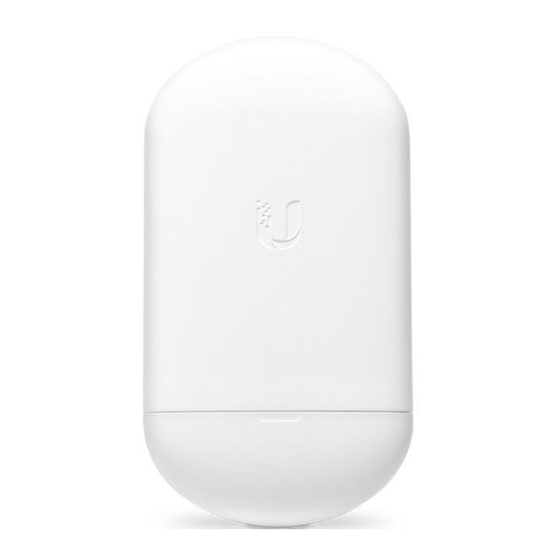

NanoStation loco
Shielded Category 5 (or above) cabling with drain wire should be used for all outdoor
wired Ethernet connections and should be grounded through the AC ground of the
PoE.
We recommend that you protect your networks from harmful outdoor environments
and destructive ESD events with industrial-grade, shielded Ethernet cable from
Ubiquiti. For more details, visit
Surge protection should be used for all outdoor installations. We recommend that
you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation
loco and the other at the entry point to the building. The ETH-SP will absorb power
surges and safely discharge them into the ground.
HTML to PDF API
Zip Tie
ui.com/toughcable
PDFCROWD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NanoStation loco and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ubiquiti NanoStation loco

  • Page 1 PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation loco and the other at the entry point to the building.
  • Page 2: Hardware Overview

    Diagram Showing Use of Ethernet Surge Protectors Hardware Overview Port View Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 3 Power LED The Power LED will light blue when the device is connected to a power source. Ethernet Port 10/100/1000 Ethernet port used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on.
  • Page 4: Hardware Installation

    Hardware Installation Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 5: Pole Mount

    Pole Mount Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 6 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 8: Connecting Power

    Connecting Power WARNING: The switch port must comply with the power specifications listed in this “Specifications”. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 9 Accessing airOS via Wi-Fi Verify connectivity in the airOS® Configuration Interface using the UNMS™ app or Web Portal. Both are available for 15 minutes immediately after you power on the device. If necessary, you can power cycle the device to re-enable its Wi-Fi. UNMS App 1.
  • Page 10: Web Portal

    2. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address> Note: Ensure that DHCP is enabled on your Wi-Fi adapter. 3. Launch the app and follow the on-screen instructions. Web Portal 1. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address> Note: Ensure that your Wi-Fi connection has DHCP enabled.
  • Page 11 4. Create a username and password. Confirm your new password and then click Save. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 12: Installer Compliance Responsibility

    The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For additional details, refer to the User Guide available at ui.com/download/airmax-ac Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements.
  • Page 13: Specifications

    The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. Specifications Loco5AC Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") Weight 180 g (6.35 oz) Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 14 Loco5AC Processor MIPS 74K Memory DDR2 64 MB Antenna Gain 13 dBi Networking Interface (1) 10/100/1000 Ethernet Port Power Method Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) Power Supply 24V, 0.3A Gigabit PoE Supply* Max. Power Consumption Supported Voltage Range 24V ±10% ESD/EMP Protection ±24kV Contact / Air...
  • Page 15: Safety Notices

    Management Radio (MHz) Worldwide 2412 - 2472 US/CA 2412 - 2462 Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 16 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1.
  • Page 17 The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence.
  • Page 18: Australia And New Zealand

    Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 25 cm entre l’élément rayonnant et vous. Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur, et ne doit être utilisé...
  • Page 19: Weee Compliance Statement

    The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states. Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm.
  • Page 20 © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
