29/01/22, 13:44

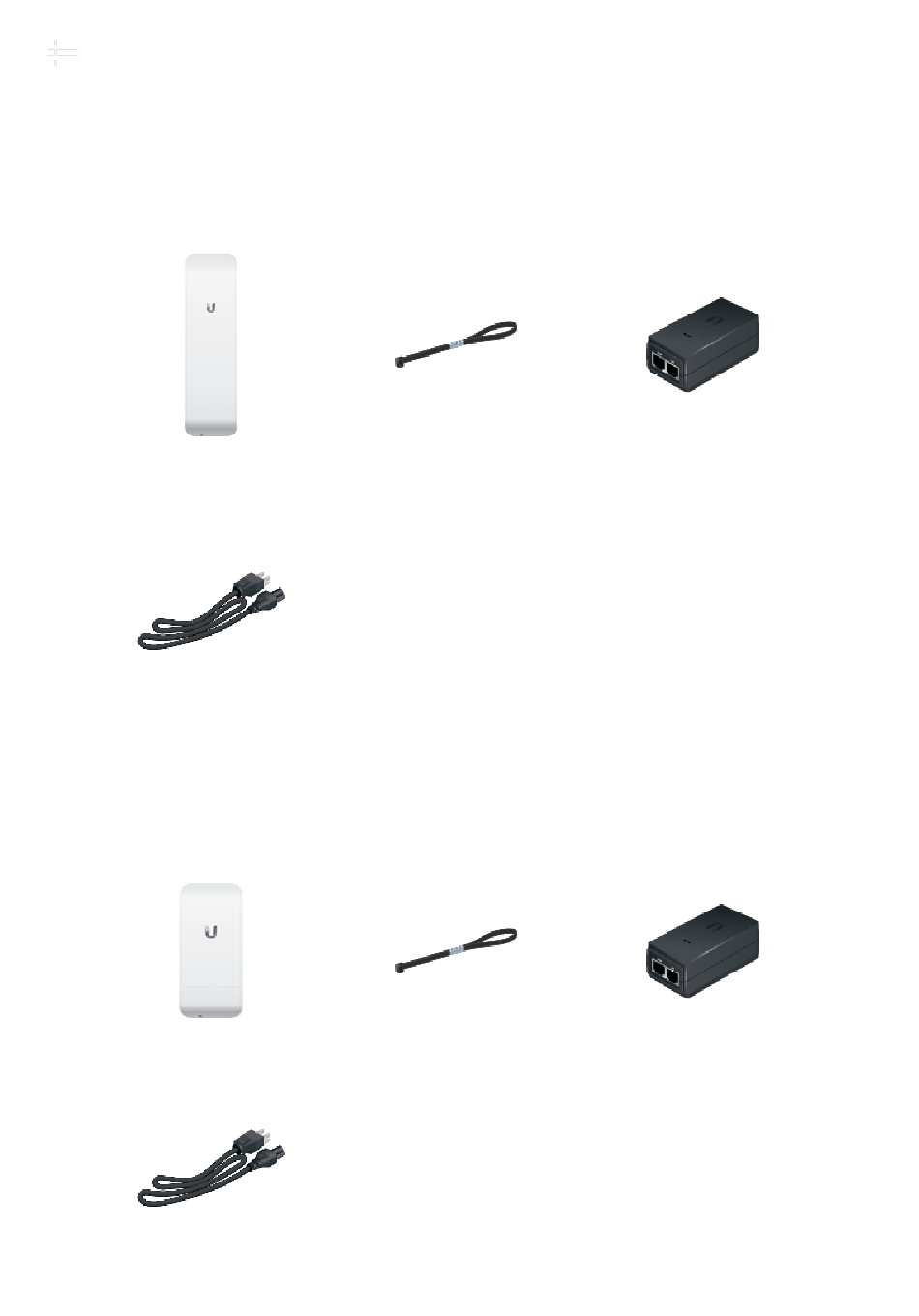

conteúdo do pacote

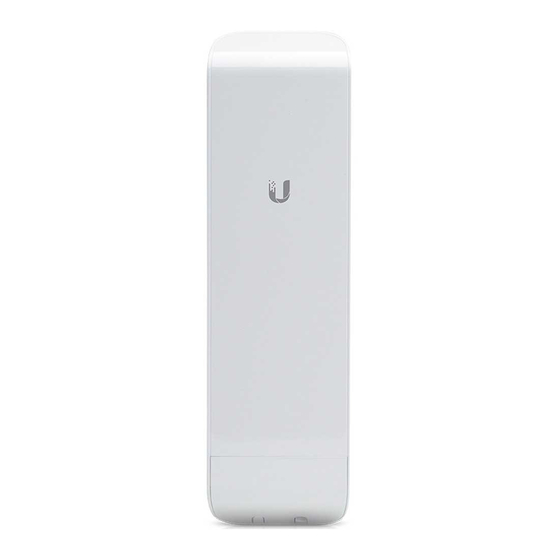

NSM2/NSM3/NSM365/NSM5
NanoStation
M2/M3/M365/M5
Cabo de alimentação
locoM2/locoM5
NanoStationloco M2/M5
https://dl.ui.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_EN.html
Guia de início rápido da série NanoStationM/locoM
NanoStationM/locoM Series Quick Start Guide
Gravata
Gravata
PoE (24V, 0,5A) com suporte
de montagem
PoE (24V, 0,5A) com suporte
de montagem
1/16
Advertisement
Table of Contents
Related Manuals for Ubiquiti NanoStationM Series
Summary of Contents for Ubiquiti NanoStationM Series
- Page 1 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM conteúdo do pacote NSM2/NSM3/NSM365/NSM5 NanoStation Gravata PoE (24V, 0,5A) com suporte M2/M3/M365/M5 de montagem Cabo de alimentação locoM2/locoM5 NanoStationloco M2/M5 Gravata PoE (24V, 0,5A) com suporte de montagem https://dl.ui.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_EN.html 1/16...
- Page 2 CA do PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation and the other at the entry point to the building.
-
Page 3: Hardware Overview
29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM Hardware Overview NSM2/NSM3/NSM365/NSM5/locoM2/locoM5 https://dl.ui.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_EN.html 3/16... - Page 4 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM Power LED The LED will light green when the device is connected to a power source. https://dl.ui.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_EN.html 4/16...
- Page 5 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide LAN1 LED Guia de início rápido da série NanoStationM/locoM The LED will light steady green when an active Ethernet connection is made to the Main/LAN port and flash when there is activity. LAN2 LED (NanoStation M2/M3/M5 only) The LED will light steady green when an active Ethernet connection is made to the Secondary port and flash when there is activity.
- Page 6 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM Power LED The LED will light green when the device is connected to a power source. LAN1 LED The LED will light steady green when an active Ethernet connection is made to the Main/LAN port and flash when there is activity.
-
Page 7: Installation
29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM RP-SMA Antenna Connector Reserved for future use. Main/LAN Port This 10/100 Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. - Page 8 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM https://dl.ui.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_EN.html 8/16...
- Page 9 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM https://dl.ui.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_EN.html 9/16...
-
Page 10: Connecting Power
29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Guia de início rápido da série NanoStationM/locoM Connecting Power WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. Optional Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. -
Page 11: Installer Compliance Responsibility
The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For details, refer to the User Guide available at ui.com/download/airmax You can also manage your device using the Ubiquiti® Network Management System. Setup using the UNMS™ app requires the U-Installer, sold separately. Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s... - Page 12 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide NSM2/NSM3/NSM365 Operating Frequency (MHz) NSM2/NSM3/NSM365 Operating Frequency (MHz) Guia de início rápido da série NanoStationM/locoM NSM2 2412 - 2462 NSM3 3400 - 3700 NSM365 3650 - 3675 NSM5 Operating Frequency (MHz) Worldwide 5150 - 5875 5150 - 5350, 5470 - 5725, 5725 - 5875 U-NII-1 5150 - 5250...
-
Page 13: Safety Notices
29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide locoM5 Operating Frequency (MHz) Guia de início rápido da série NanoStationM/locoM Worldwide 5150 - 5875 5150 - 5350, 5470 - 5725, 5725 - 5875 U-NII-1 5150 - 5250 U-NII-2A 5250 - 5350 U-NII-2C 5470 - 5725 U-NII-3 5725 - 5850... -
Page 14: Limited Warranty
29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Limited Warranty Guia de início rápido da série NanoStationM/locoM ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 15 29/01/22, 13:44 NanoStationM/locoM Series Quick Start Guide Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour Guia de início rápido da série NanoStationM/locoM une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. IMPORTANT NOTE Radiation Exposure Statement This equipment complies with radiation exposure limits set forth for an uncontrolled...
-
Page 16: Declaração De Conformidade
A operação na banda de frequência de 5,8 GHz é proibida nos estados membros da BFWA. Outros países listados podem usar a banda de frequência de 5,8 GHz. Declaração de Conformidade WEEE Declaração de conformidade Recursos online © 2022 Ubiquiti Inc. Todos os direitos reservados. https://dl.ui.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_EN.html 16/16...
