Ubiquiti NanoStation NSM2 Quick Start Manual

Ubiquiti NanoStation NSM2 Quick Start Manual

High-power 2x2 mimo airmax tdma station
Hide thumbs Also See for NanoStation NSM2:

Advertisement

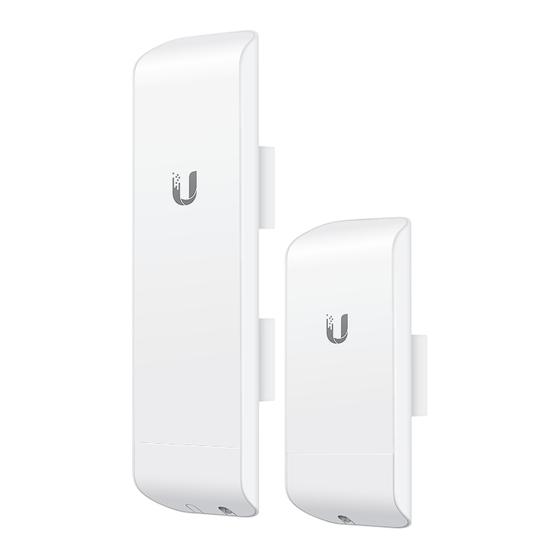

High-Power 2x2 MIMO
airMAX
TDMA Station
®
Models: NSM2/NSM3/NSM365/
NSM5/locoM2/locoM5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NanoStation NSM2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti NanoStation NSM2

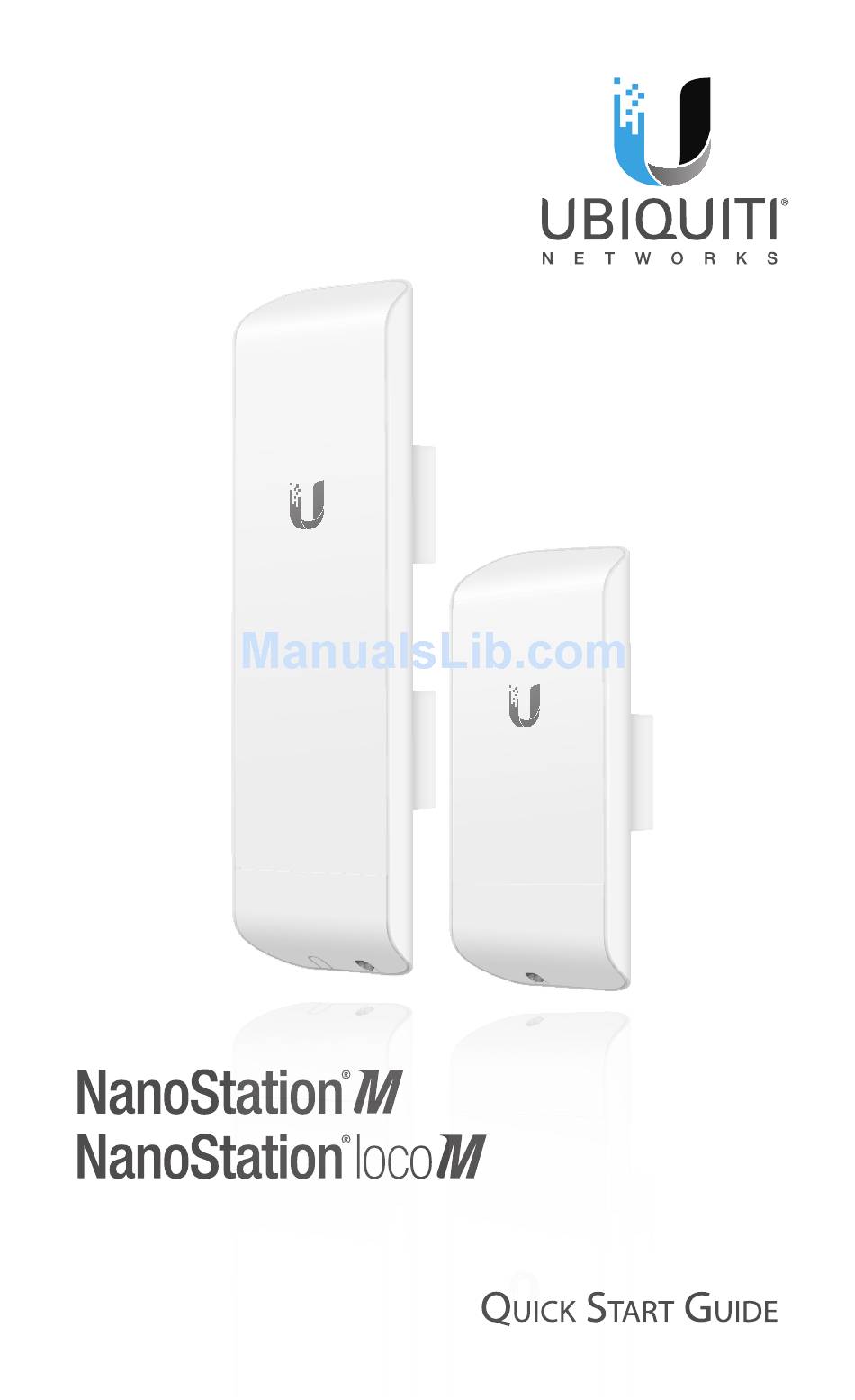

  • Page 1 High-Power 2x2 MIMO airMAX TDMA Station ® Models: NSM2/NSM3/NSM365/ NSM5/locoM2/locoM5...
  • Page 2: Package Contents

    ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™...
  • Page 3: Hardware Overview

    Hardware Overview Back View LED Panels LED Panels Mounting Brackets Port Cover Release Button NanoStationM2/M3/M5 NanoStationlocoM2/M5...
  • Page 4 LED Panel Power The Power LED will light green when the device is connected to a power source. LAN1 Main Ethernet The LED will light steady green when an active Ethernet connection is made to the Main/LAN port and flash when there is activity.
  • Page 5 Ports Secondary Main* Reset Port Port Button Main/LAN 10/100 Ethernet port used to connect the power and should be connected to the LAN and DHCP server. Secondary (NanoStationM2/M3/M5 only) 10/100 Ethernet port used for bridging and supports software‑configurable PoE passthrough. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the NanoStation...
  • Page 6: Hardware Installation

    Hardware Installation 1. Press the Port Cover Release Button located on the back of the NanoStation and slide the cover off. 2. Connect an Ethernet cable to the Main/LAN port. *640-00210-01* 640-00210-01...
  • Page 7 3. Replace the port cover. 4. Position the NanoStation at the desired location on a pole and insert a Cable Tie into the slot of the Mounting Bracket.
  • Page 8 5. Align the front of the NanoStation toward the other end of the wireless link. Then tighten the Cable Tie around the pole. Note: For the NanoStationM2/M3/M5, two Cable Ties are provided. Fasten the second Cable Tie to the other mounting bracket for added security.
  • Page 9: Connecting Power Over Ethernet

    Connecting Power over Ethernet 1. Connect the Ethernet cable from the NanoStation to the POE port of the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the PoE Adapter. 3. Connect the Power Cord to the adapter’s power port. Connect the other end of the Power Cord to a power outlet.
  • Page 10 Accessing airOS Connect to the airOS Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the NanoStation. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
  • Page 11: Installer Compliance Responsibility

    Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. The Antenna Gain and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements.
  • Page 12: Specifications

    Specifications NanoStationM2/M3/M365/M5 Dimensions 294 x 30 x 80 mm (11.57 x 1.18 x 3.15") Weight NSM2/NSM5 0.4 kg (14.11 oz) NSM3/NSM365 0.5 kg (17.64 oz) Operating Frequency NSM2 2412 ‑ 2462 MHz NSM3 3400 ‑ 3700 MHz NSM365 3650 ‑ 3675 MHz NSM5 Worldwide: 5170 ‑...
  • Page 13 NanoStationlocoM2/M5 Dimensions 163 x 31 x 80 mm (6.42 x 1.22 x 3.15") Weight 0.18 kg (6.35 oz) Operating Frequency locoM2 2412 ‑ 2462 MHz locoM5 Worldwide: 5170 ‑ 5875 MHz USA: 5725 ‑ 5850 MHz Gain locoM2 8 dBi locoM5 13 dBi Max.
  • Page 14: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 15: Limited Warranty

    Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 16: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 17 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
  • Page 18: Industry Canada

    Industry Canada CAN ICES‑3(A)/NMB‑3(A) This Class A digital apparatus complies with Canadian CAN ICES‑3(A). To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 19 Cet appareil a été conçu pour fonctionner avec les antennes énumérés ci‑dessous, et ayant un gain maximal de 25 dBi*. Antennes pas inclus dans cette liste ou ayant un gain supérieur à 25 dBi sont strictement interdite pour une utilisation avec cet appareil. L’impédance d’antenne requise est 50 ohms.
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 22: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.
  • Page 23: Online Resources

    [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 24 ©2011‑2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, and NanoStation are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
