Summary of Contents for Ubiquiti NSM2

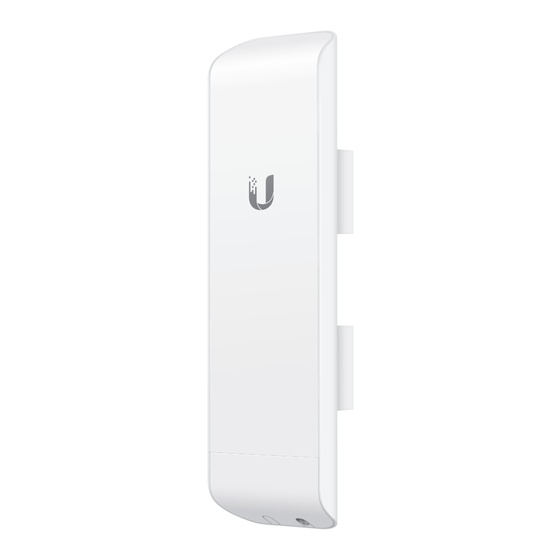

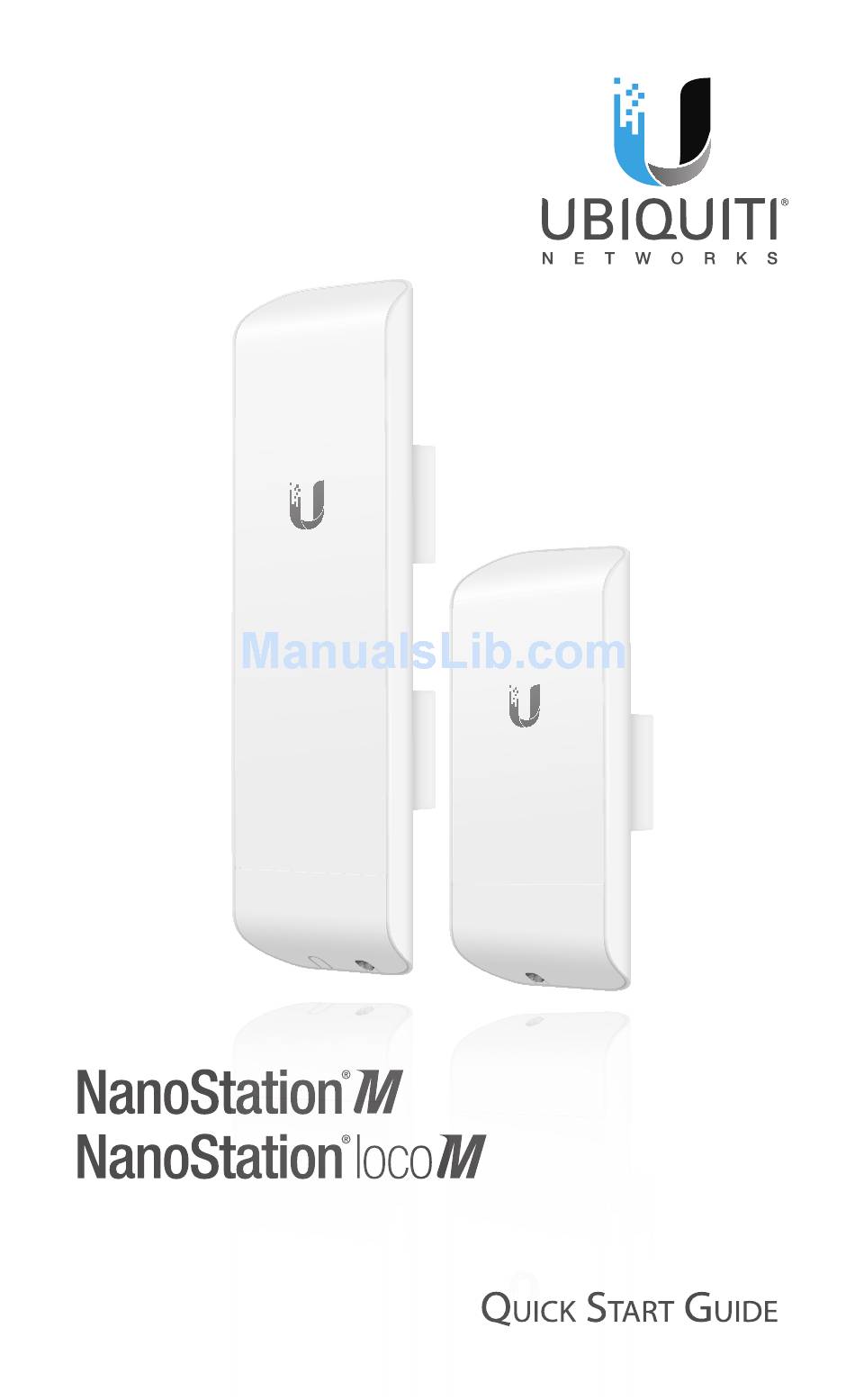

- Page 1 High-Power 2x2 MIMO airMAX TDMA Station ® Models: NSM2/NSM3/NSM365/ NSM5/locoM2/locoM5...
-
Page 2: Package Contents
PoE Adapter (24V, 0.5A) Guide with Mounting Bracket TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the professional installer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Installation Requirements
AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable • Surge protection should be used for all outdoor installations. -
Page 4: Back View
Back View LED Panels LED Panels Mounting Brackets Port Cover Release Button NanoStationM2/M3/M5 NanoStationlocoM2/M5... - Page 5 LED Panel Power The Power LED will light green when the device is connected to a power source. LAN1 Main Ethernet The LED will light steady green when an active Ethernet connection is made to the Main/LAN port and flash when there is activity.
- Page 6 Ports Secondary Main* Reset Port Port Button Main/LAN 10/100 Ethernet port used to connect the power and should be connected to the LAN and DHCP server. Secondary (NanoStationM2/M3/M5 only) 10/100 Ethernet port used for bridging and supports software‑configurable PoE passthrough. Note: In order to use PoE passthrough on the Secondary port, a 24V, 1A PoE adapter is required.
-
Page 7: Hardware Installation
Hardware Installation 1. Press the Port Cover Release Button located on the back of the NanoStation and slide the cover off. 2. Connect an Ethernet cable to the Main/LAN port. - Page 8 3. Replace the port cover. 4. Position the NanoStation at the desired location on a pole and insert a Cable Tie into the slot of the Mounting Bracket.
- Page 9 5. Align the front of the NanoStation toward the other end of the wireless link. Then tighten the Cable Tie around the pole. Note: For the NanoStationM2/M3/M5, two Cable Ties are provided. Fasten the second Cable Tie to the other mounting bracket for added security.
-
Page 10: Connecting Power
Connecting Power Connect the power using one of the following options: • Using the included Gigabit PoE Adapter: Go to Connecting to the PoE Adapter. • Using a separate PoE switch: Connect the Ethernet cable from the device’s Ethernet port to a PoE‑enabled Ethernet port on the switch. - Page 11 For additional details on the airOS Configuration Interface, refer to the User Guide available at www.ubnt.com/download/airmax You can also manage your device using the Ubiquiti Network Management System. Setup using the UNMS app requires ™...
-
Page 12: Installer Compliance Responsibility
Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. The Antenna Gain and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. -
Page 13: Specifications
Pole‑Mounting Kit Included Networking Interface (2) 10/100 Ethernet Ports Operating Temperature ‑30 to 75° C (‑22 to 167° F) Operating Humidity 5 to 95% Noncondensing NSM2/NSM3/NSM365 Operating Frequency (MHz) NSM2 2412 ‑ 2462 NSM3 3400 ‑ 3700 NSM365 3650 ‑ 3675... - Page 14 NanoStationlocoM2/M5 Dimensions 163 x 31 x 80 mm (6.42 x 1.22 x 3.15") Weight 0.18 kg (6.35 oz) Operating Frequency locoM2 2412 ‑ 2462 MHz locoM5 Worldwide: 5170 ‑ 5875 MHz USA: 5725 ‑ 5850 MHz Gain locoM2 8 dBi locoM5 13 dBi Max.
-
Page 15: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 16: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 17: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
- Page 19 ISED Canada CAN ICES‑3(A)/NMB‑3(A) This device complies with ISED Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This device has been designed to operate with the antennas listed below, and having a maximum gain of 25 dBi*.
-
Page 20: Australia And New Zealand
Le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5250‑5350 MHz et 5470‑5725 MHz doit se conformer à la limite de p.i.r.e.; le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725‑5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à... -
Page 21: Rohs/Weee Compliance Statement
The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 ‑ 5350 MHz frequency range within all member states. Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm. - Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 23: Declaration Of Conformity
Čeština [Czech] Tímto UBIQUITI NETWORKS prohlašuje, že typ rádiového zařízení NSM2/NSM3/NSM365/NSM5/locoM2/locoM5 je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: www.ubnt.com/compliance Dansk [Danish] Hermed erklærer UBIQUITI NETWORKS, at radioudstyrstypen NSM2/NSM3/NSM365/NSM5/locoM2/locoM5 er i overensstemmelse med direktiv 2014/53/EU. -
Page 24: Online Resources
New York, NY 10017 ©2011‑2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, and NanoStation are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
