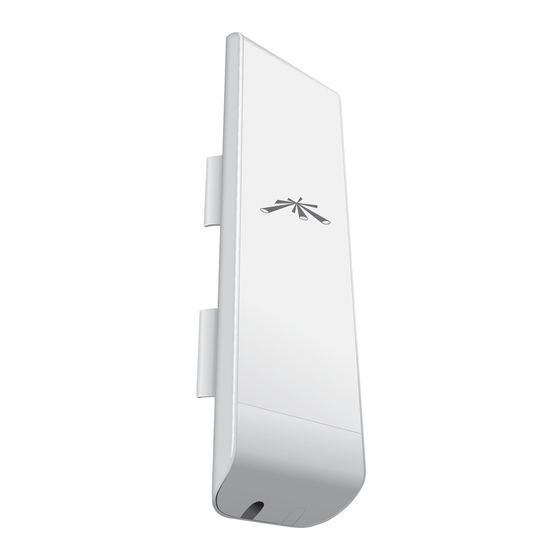

Ubiquiti NanoStation M2 Quick Start Manual
Nanostation m series; nanostation loco m series
Hide thumbs
Also See for NanoStation M2:
- Manual (2 pages) ,
- Quick start manual (25 pages) ,
- Quick start manual (19 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Ubiquiti NanoStation M2
Summary of Contents for Ubiquiti NanoStation M2
- Page 1 Models: NanoStation M2/M5 NanoStation Loco M2/M5/M900...
-
Page 3: Components View
Thank you for purchasing a Nanostation M series product. This is a point-to-point CPE wireless device. This Quick Start Guide is for use with the following models: Model Operating Frequency Ethernet Ports NanoStation M2 2403-2475 MHz NanoStation M5 5170-5875 MHz* NanoStation Loco M2 2402-2482 MHz... -
Page 4: Hardware Overview
Primary Ethernet Port and flash when there is activity. LAN2 LAN/Secondary Ethernet The LAN2 Ethernet LED (on NanoStation M2/M5 only) will light steady green when an active Ethernet connection is made to the Secondary Ethernet Port. Signal These LEDs display the signal strength. -
Page 5: Typical Deployment
Typical Deployment Typical Deployment Connect the Power Cord to the PoE Adapter and a power outlet LAN or Computer to Ethernet Port labeled LAN on PoE Adapter Ethernet Port on Ubiquiti Device to Ethernet Port labeled POE on PoE Adapter Shielded Category 5 (or above) cabling should be Note: used for all wired Ethernet connections and should be... -
Page 6: Accessing Airos
Accessing AirOS 1. Make sure that your host machine is connected via Ethernet to the Ubiquiti Networks device (as shown on previous page). 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (e.g. 192.168.1.100). -
Page 7: Ubiquiti Networks Wiki And Forum
Ubiquiti Networks Wiki and Forum Ubiquiti Networks Wiki and Forum Ubiquiti Networks has an online Wiki with Manuals, Guides, and Information. It is located at www.ubnt.com/wiki. Another great resource is the Ubiquiti Networks Forum. You can post and view comments, questions, and answers with other... -
Page 8: Installer Compliance Responsibility
Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. -
Page 9: Specifications
Specifications Specifications NanoStation M Enclosure Size 29.4 x 8 x 3 cm Weight 0.5 kg Max Power Consumption 8 Watts Power Supply 24V, 1A PoE Supply Included Power Method Passive PoE (Pairs 4, 5+; 7,8 return) Operating Temperature -30° to 75° C Operating Frequency 2403 MHz - 2475 MHz 5470 MHz - 5825 MHz... -
Page 10: Safety Notices
Quick Start Guide Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. Do not use this product in location that can be WARNING: submerged by water. Avoid using this product during an electrical WARNING: storm. -
Page 11: General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and warrants that the Products furnished hereunder shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS sole and exclusive obligation under the foregoing warranty shall be to repair or replace, at its option, any defective Product that fails during the warranty period. -
Page 12: Industry Canada
Compliance Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 13: Rf Exposure Warning
Compliance RF Exposure Warning The transceiver described here emits radio frequency energy. Although the power level is low, the concentrated energy from a directional antenna may pose a health hazard. Do not allow people to come closer than 55.53 cm to the antenna when the transmitter is operating. Additional information on RF exposure is available on the Internet at www. - Page 14 Pour en savoir plus, rendez-vous sur www.ubnt.com/toughcable Italiano Si consiglia di proteggere le reti dagli ambienti e dagli attacchi ESD più invasivi con il cavo Ethernet schermato-di tipo industriale di Ubiquiti Networks. Per ulteriori informazioni, visitare il sito Web www.ubnt.com/toughcable RR062111...
-
Page 16: Ubiquiti Networks Support
Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: www.ubnt.com/wiki Support Forum: www.ubnt.com/forum Knowledge Base: www.ubnt.com/kb Downloads: www.ubnt.com/support/downloads w w w . u b n t . c o m © 2011 Ubiquiti Networks, Inc. All rights reserved.
