- Page 1 Video Separator/Booster USER MANUAL VS-102...
- Page 2 Preventing Radio & TV Interference WARNING!!! This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
-
Page 3: Package Contents

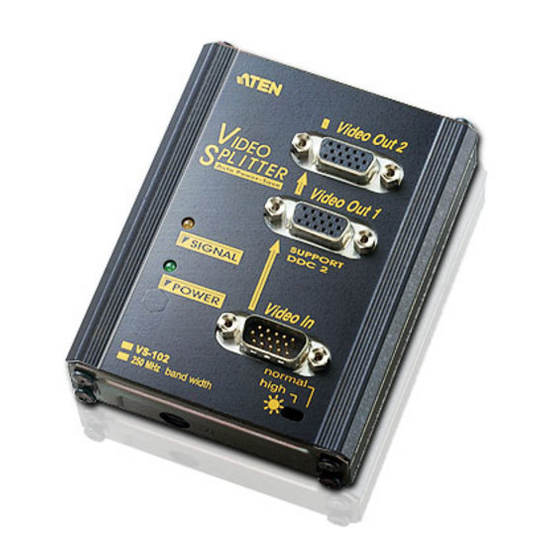

Copyright © 2006 ATEN International Co., Ltd. Manual Part No. PAPE-XXXX-XXXX Manual Date: 2008-06-10 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 3 -... - Page 4 Overview The VS-102 Video Separator duplicates and boosts the video signal from one source to two outputs, and is ideal for any monitor that uses analog signals. The VS-102 also extends the transmission distance up to 210 feet making it excellent for public broadcast systems.
- Page 5 VS-102 Diagram Note: 1. This product is not suitable for CGA, EGA, or Monochrome type monitors using a digital video signal. 2. A slide switch, near the VIDEO IN port, is for high or low video signal brightness control. - 5 -...
- Page 6 Installation 1. Connect the PC's video port to the VIDEO IN port of the Video Separator with a high density HD-15 cable. 2. Connect the VIDEO OUT ports of the Video Separator to the display monitors with high density HD-15 cables. 3.
-
Page 7: Specifications
Specifications Function Specification Conne Input 1 High Density HD-15 Male ctions Outout 2 High Density HD-15 Female Power Consumption DC 9V, 210mA (max.)* LEDs 1 Power 1 Signal Signal Type VGA, SVGA, Multisync Cable Distance 65M (210ft.) [max.] Housing Metal Weight 100 g Dimensions (L x W x H) 104 x 98 x 24 mm... -
Page 8: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
