ATEN VS162 Specifications

2 port dvi video splitter

Hide thumbs Also See for VS162:

Download this manual See also: User Manual

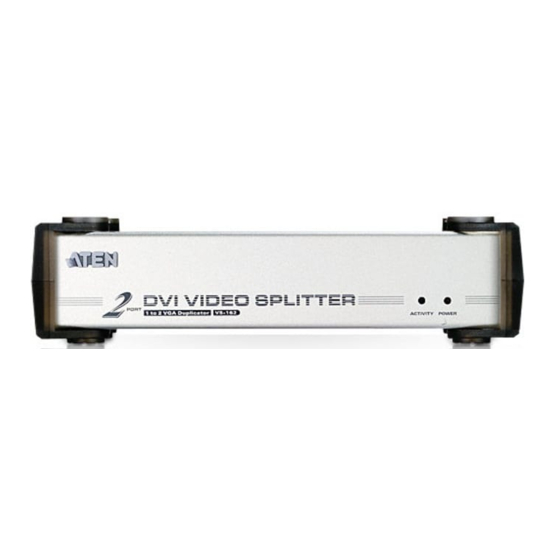

2 Port DVI Video Splitter VS162

T h e V S - 162 DVI Video Splitter duplicates and boosts the signals from a single DVI video and

audio sources to two DVI displays and audio outputs. They are ideal for any type of broadcasting

environment, classrooms, or by power computer users. The VS- 162 also features audio support and

is able to be daisy chained for additional viewing.

Distributor Part NO. :

Contact Aten for part number @ 949.428.1111

Features:

Connects computers with DVI graphics to multiple DVI compatible monitors or projectors

Fully compliant with DVI- Digital and DVI- Analog

Speaker enabled for audio enjoyment

Maximize your viewers - Cascadable

Maintains highest link video resolution (1600 x 1200)

Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors

Installs in minutes

Diagram :

Need help?

Do you have a question about the VS162 and is the answer not in the manual?

Page 1 2 Port DVI Video Splitter VS162 T h e V S - 162 DVI Video Splitter duplicates and boosts the signals from a single DVI video and audio sources to two DVI displays and audio outputs. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Page 2: Package Content
Package Content: 1 x DVI Video Splitter 1 x Power Adapter (DC 5.3V) 1 x User Manual Specification : Power Adaptor Part # USA # # 0AD8-0605-241G for UK region # 0AD4-3605-241G for German Region # 0AD6-1605-241G * Master Carton Width 12.0 in.
Page 3 Case Metal Weight Unit Pack Wt. 2.6 lbs. Master Carton Wt. 13.6 lb. (6.2 Kg) **** Unit Dimensions Height 2.2 in. (5.6 cm) Length 8.3 in. (21.0 cm) Width 3.5 in. (8.8 cm) Operating Temperature 32F~122F (0C~50C) Storage Temperature -4F~140F (-20C~60C) Power Consumption DC5.3V, 3.4W Connectors (Output)
