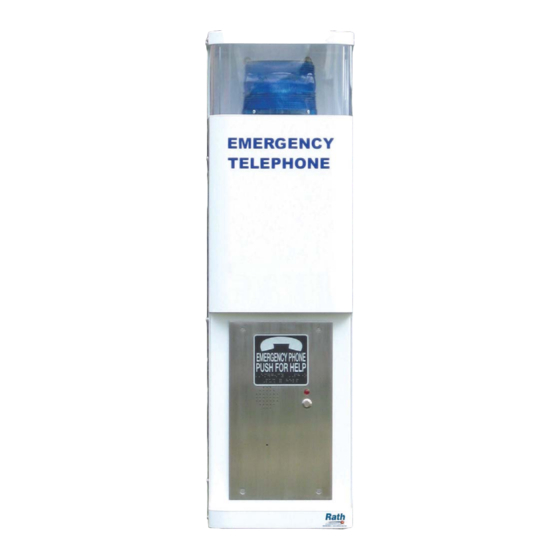

- Page 1 Installation & Operations Manual Emergency Call Station with 900 mHz 2100-CD9 Series N56 W24720 N. Corporate Circle Sussex, WI 53089 RP8500CD9 Ver. 1 800-451-1460 262-246-4828 (fax) 11/13 Made in the USA www.rathsecurity.com 2 Year Warranty...
- Page 2 Thank you for purchasing the Rath Emergency Call Station. We take great pride in our products, our service and support. Our #1 mission is customer satisfaction. When evaluating emergency communication systems, you can rely on Rath to continually provide Innovative Thinking, Design and Value.
- Page 3 The Rath Dusk2Dawn call station should only be installed by a qualified electrician. Rath recommends that the call station be mounted so that the push button is less than 48 inches above the ground to comply with the Americans with Disabilities (ADA) requirements. For ease of installation, two people should perform the install.
- Page 4 Connecting the Electric Connect 120V from power source to black and white wire coming from bottom on NEMA enclouse. Black will be your positive, and white your negative. Strobe FRONT COVER Strobe Constant Positive 120 VAC Negative Charging/Finishing/Ready Ground Dusk2Dawn Charging Station 900 mHz Phone line Remote...
- Page 5 Adjusting the Photocell Photocell 1. Slide the cover to the proper position on the photocell in order Cover for the blue light to be lit at the proper time (see drawing on right). The cell may need to be partially covered if the tower is mounted near a light source Photocell Turn on the Electric...
- Page 6 Programming the Phone: 1. You can program the phone on-site or program remotely. 2. If programming on-site, open up the access panel. Use the #10 spanner bit provided to remove the security screws. 3. Remove the cover of the NEMA 4 enclosure by loosening the 4 corner screws. ONSITE PROGRAMMING: Step 1.
- Page 7 Called Party Hang-up Instructions Depending on the Phone System, it may take some time for the Rath emergency phone to hang-up. To force the Rath phone to hang-up immediately, the called party should press * then # before hanging up.
- Page 8 Troubleshooting Problem Possible Cause & Fixes No dial tone when the • Check to make sure the phone line connected between 900mHz and phone board button is pushed: • Verify dial tone on phone line going into Base Station and line comming out of remote station.
