- Page 1 36” Emergency Call Station Emergency Tower Phone • 2100-TLL Landline 12v Tower • 2100-TLC Cellular 12v Tower • 2100-TL9 900 MHz 12v Tower • 2100-TLT 2-Way Radio 12v Tower • 2100-TLV VoIP 12v Tower • 2100-TLW Wi-Fi VoIP 12v Tower N56W24720 N.
-
Page 2: Table Of Contents
Thank you for purchasing RATH’s 12v Tower Phone. We are the largest Emergency Communication Manufacturer in North America and have been in business for over 35 years. We take great pride in our products, service, and support. Our Emergency Products are of the highest quality. -
Page 3: Description

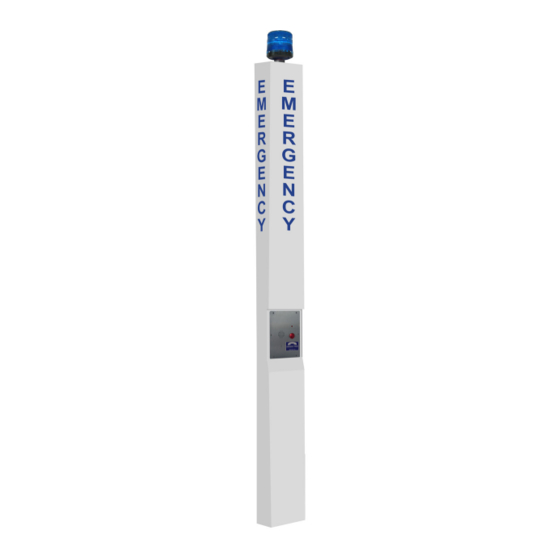

Description Figure 1: Front & Back View Features: • ADA compliant (hands free operation) • LED call status indicator Panel 1 • Powder coated steel construction inside and out • Aluminum access panels powder coated inside and out • Weather and vandal resistant •... -
Page 4: Items Needed
Items Needed for Installation • Concrete for 16” deep, 2’ diameter • 1/4” spanner adapter (provided to remove access panels) • RATH® Kit 7476* or 7477** • Adjustable wrench • Analog phone line (if using 900 MHz or a Landline) •... - Page 5 4. When the “PWR”, “RDY”, and “NW” lights on the front of the unit are illuminated, unit is ready. 5. Verify SmartPhone is plugged into the FXS port on Cellular Module. Note: If the SIM card is not provided to RATH® at time of purchase, an active SIM Card will need to be installed into SIM Card slot.
-
Page 6: Phone Programming
Phone Programming 1. You can program the phone on-site or remotely. Note: Cellular and 900 MHz applications cannot be remotely programmed. 2. If programming on-site, remove the face plate. Use the #10 spanner bit provided to remove the 6 security screws. 3. -
Page 7: Phone Testing
If you answer NO to any question, proceed to the Troubleshooting Section. *RATH® recommends the Tower be tested on a regular basis to ensure proper operation. *RATH® recommends the 7.2 volt battery be replaced every 3 years (Part #: RP7300110). -
Page 8: Troubleshooting
Troubleshooting Problem Possible Cause & Solutions No dial tone when the • Check to make sure the phone line is connected to SmartPhone board. button is pushed: • Verify dial tone and voltage on phone line going into unit. Audio is low from the speaker: •... -
Page 9: Wiring
Wiring Strobe Strobe Constant Enter Record Play / Pause Stop Wago Connector to front plate Phone line Page 8...
