Summary of Contents for Rath 2100-EPV2 VoIP

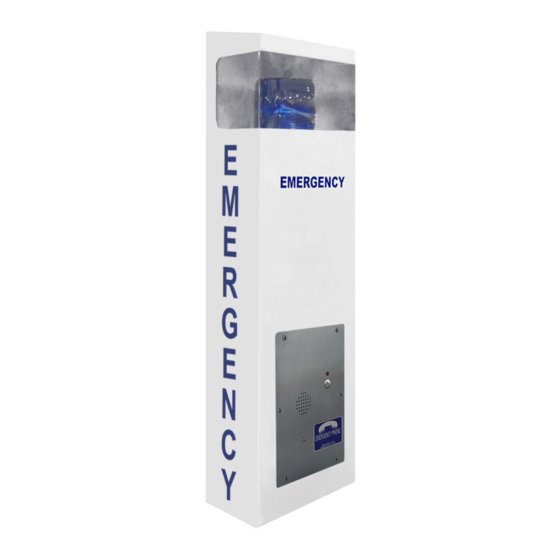

- Page 1 Installation & Operations Manual 30” Eco Light Weight Call Station • 2100-EPL2 Landline 120v Call Station • 2100-EPV2 VoIP 120v Call Station N56W24720 N. Corporate Circle Sussex, WI 53089 RP8500SCS Made in the USA Ver. 3 800-451-1460 www.RATHCommunications.com 2 Year Warranty...
-
Page 2: Table Of Contents
Thank you for purchasing RATH’s Eco Call Station. We are the largest Emergency Communication Manufacturer in North America and have been in business for over 35 years. We take great pride in our products, service, and support. Our Emergency Products are of the highest quality. -
Page 3: Description
Description Features: Figure 1: Front & Back View • ADA compliant (hands free operation) • LED call status indicator 7-1/2” 10” • Powder coated aluminum construction • NEMA 4 enclosure for electronics • Conduit holes for easy installation 8” • Security torx screws for internal access •... -
Page 4: Items Needed
If Mounting to Wall Pole Mount Bracket (Part # RP7700098AE) If Mounting to Pole #1 Phillips Screwdriver Voltage Meter Security Torx Bit Provided by RATH® Adjustable Wrench 120v Power Source Analog Phone Line If Using Landline Phone Cable If Using Landline Installation 1. -
Page 5: Phone Programming
Phone Programming 1. You can program the phone on-site or remotely. 2. If programming on-site, pull front assembly away from unit. 3. Remove the cover of the NEMA 4 enclosure by loosening the 4 corner screws. On-Site Programming: Step 1: To Begin Program Mode A. -
Page 6: Phone Testing
If you have answered YES to all questions, you have successfully installed and tested the phone. If you answer NO to any question, proceed to the Troubleshooting Section. *RATH® recommends the Call Station be tested on a regular basis to ensure proper operation. Adjusting the Volume If the volume is too low or high, adjust it by referring to the diagram and instructions below. -
Page 7: Troubleshooting
Troubleshooting Problem Possible Cause & Solutions No dial tone when the button is • Check to make sure the phone line is connected to SmartPhone board. pushed: • Verify dial tone and voltage on phone line going into unit. Audio is low from the speaker: •... -
Page 8: Wiring
Wiring Strobe FRONT COVER Strobe Constant Communication Phone line Source Enter Note: If using landline, phone cable Record will just run out of the bottom of the Play / Pause NEMA 4 enclousre Stop LN G Wago Connector 120v Page 8...
