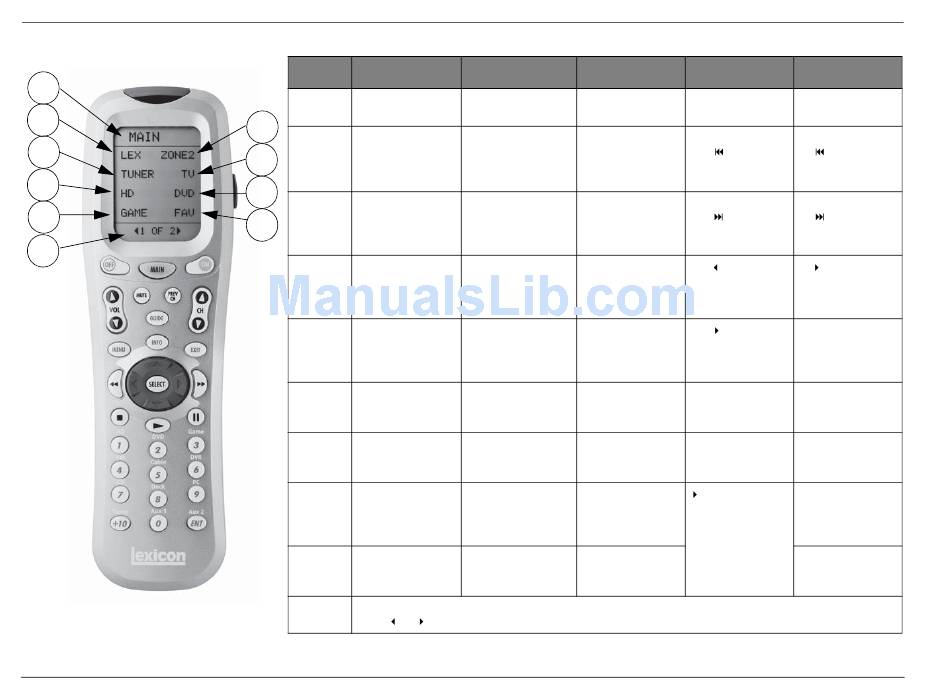

Lexicon MV-5 User Manual page 22

Basic Operation
1
2
4
6
8
10
Note: The number call-outs on the figure above
correlate with the numbers in the adjoining table.
2-12
MAIN
1
Menu Name -
MAIN*
3
2 LEX
Enters the Lexicon
5
MV-5 menu layer
7
3
ZONE2
Enters the Lexicon
9
MV-5 Zone 2 menu
layer
4 TUNER
(Does not affect the
MV-5)
5
TV
(Does not affect the
MV-5)
6 HD
(Does not affect the
MV-5)
7 DVD
Enters the Lexicon
RT-10/RT-20 menu
8
GAME
(Does not affect the
MV-5)
9 FAV
(Does not affect the
MV-5)
10 MENU PAGE - <ACTIVE PAGE> OF <TOTAL PAGES>
Touch or to scrolll between the menu pages
*The Menu Name is not a functional command. It is simply a label identifying which menu or sub-menu the touch screen currently
displays.
LEX PAGE1 LEX PAGE2
Menu Name - LEX Menu Name - LEX
L7 EQ
Selects the Logic 7 Toggles the Auto EQ
listening mode family parameter between
ON & OFF.
STER PRE1
Selects the Stereo Sets the MV-5 to the
listening mode family Autocal Preset 1
saved values
DOLBY PRE2
Selects the Dolby Sets the MV-5 to the
listening mode family Autocal Preset 2
saved values
DTS PRE3
Selects the DTS Sets the MV-5 to the
listening mode family Autocal Preset 3
saved values
DSP TREB-
Selects the DSP Lowers the Treble
listening mode family parameter
AUDIN TREB+
Selects either Digital Raises the Treble
or Analog Audio. parameter
TONE BASS-
Toggles the Tone Lowers the Bass
Control parameter parameter
between ON & OFF.
ZOOM BASS+
(unused) Raises the Bass
parameter
Lexicon
LEX PAGE3 LEX PAGE4
Menu Name - LEX Menu Name - LEX
(iPod controls) (PC controls)
IPOD- PC-
iPod PC
IPOD+ PC+
iPod PC
CLIK PC II
iPod wheel click, PC Play/Pause
counterclockwise
CLIK (unused)
iPod wheel click,
clockwise
MENU (unused)
iPod MENU button
SEL (unused)
iPod SELECT button
II (unused)
iPod Play/Pause
button
(unused)
