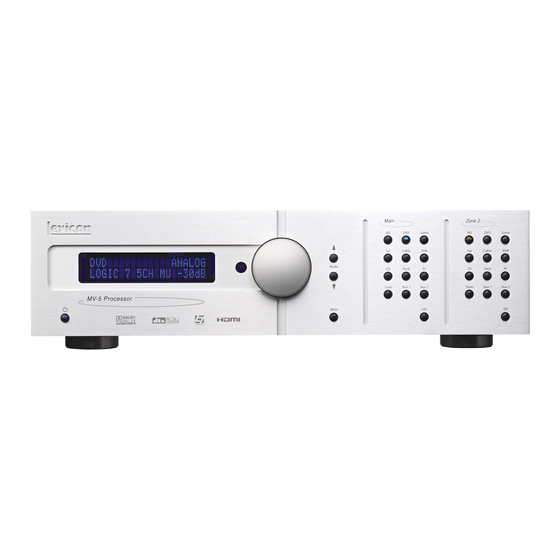

Lexicon MV-5 Supplementary Manual

Partner: Lexicon
Model: MV-5 Receiver
Device Type: Receiver/Processor
GENERAL INFORMATION
SIMPLWINDOWS NAME:
CATEGORY:
VERSION:
SUMMARY:
GENERAL NOTES:
CRESTRON HARDWARE REQUIRED:
SETUP OF CRESTRON HARDWARE:
VENDOR FIRMWARE:
VENDOR SETUP:
CABLE DIAGRAM:
Lexicon MV-5 Receiver V1.0
Receiver/Processor
1.0
Controls all standard functions on Lexicon MV-5 Receiver. Provides true feedback.
This module will control a Lexicon MV-5 Receiver.
Pulse one of the *_Direct_Setting_Enable radio group to enable commands such as
Main Volume, Zone 2 Volume, Bass, Treble, HQ Shelf, Surround Trims, etc.
Note: At least 1 of these signals must be enabled for any direct commands to work.
Auto status feedback is enabled by selecting Auto_Feedback_On. You may also
switch Auto Feedback off by using Auto_Feedback_Off.
You may also hold Poll_Enable high to poll for device status every ½ second. This is
typically done on demand (when visiting control pages for this device).
Note that all inputs to this module should be momentary, as if coming from a button
on a touch panel.
CNXCOM, ST-COM, C2COM
RS232
Baud: 38,400
Parity: N
Data Bits: 8
Stop Bits: 1
Software Version: MV-5 V3.08
N/A
CNSP-121
