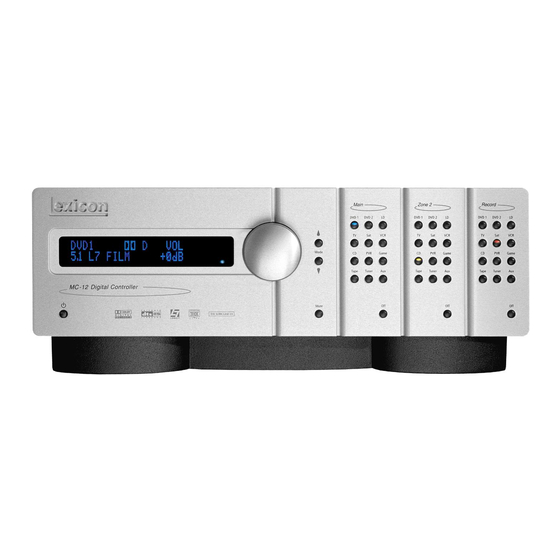

Lexicon MC-12 V3.0 - SERIAL COMMUNICATIONS PROTOCOL DEFINITION REV 1-5 Manual

Serial communications protocol definition software version 3.0
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Lexicon, Inc.
MC-12 Serial Communications Protocol
Serial Communications Protocol Definition
Lexicon, Inc.
3 Oak Park
Bedford, MA 01730-1413
(781) 280-0300
© 2003 Lexicon, Inc. All rights reserved.
Project: MC-12/MC-12B
Updated: June 10, 2003
Software Version 3.0
Protocol Version:
Major rev 1
Minor rev 5
Printed on: 08/18/03
1 of 94

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-12 V3.0 - SERIAL COMMUNICATIONS PROTOCOL DEFINITION REV 1-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Lexicon MC-12 V3.0 - SERIAL COMMUNICATIONS PROTOCOL DEFINITION REV 1-5

Summary of Contents for Lexicon MC-12 V3.0 - SERIAL COMMUNICATIONS PROTOCOL DEFINITION REV 1-5

  • Page 1 Serial Communications Protocol Definition Project: MC-12/MC-12B Updated: June 10, 2003 Software Version 3.0 Protocol Version: Major rev 1 Minor rev 5 Lexicon, Inc. 3 Oak Park Bedford, MA 01730-1413 (781) 280-0300 © 2003 Lexicon, Inc. All rights reserved. 1 of 94...

  • Page 2: Customer Support

    International Company. © 2003 Lexicon, Inc. All rights reserved. This document should not be construed as a commitment on the part of Lexicon, Inc. The information it contains is subject to change without notice. Lexicon, Inc. assumes no responsibility for errors that may appear within this document.

  • Page 3: Table Of Contents

    Set System Volume (MC-12, MC-1) 7.3.19 Set Main Balance (MC-12, MC-1) 7.3.20 Set Front/Back Balance (MC-12, MC-1) 7.3.21 Set Active Effect by Id (MC-12, MC-1) 7.3.22 Set Record Input (MC-12, MC-1) © 2003 Lexicon, Inc. All rights reserved. 3 of 94...
  • Page 4 Appendix E MC-1 Input Id’s Appendix F MC-12 Input Ids Appendix G Protocol Constants Appendix H MC-12 to MC-1 Effect Map Appendix I MC-1 to MC-12 Effect ID Map Appendix J MC-12 Mode Ids © 2003 Lexicon, Inc. All rights reserved. 4 of 94...
  • Page 5 MC-12: Simple System Control & System Status: Examples: 1.5.1 MC-12 Get Unit Configuration 1.5.2 Send MC-1 IR Command Example 1.5.3 Send MC-12 IR Command Example MC12 V2.00 Parameter ID List © 2003 Lexicon, Inc. All rights reserved. 5 of 94...

  • Page 6: Documents

    The device initiating or receiving the serial communication packets to/from the MC-12. MC-12 ,MC-1,DC-2: The Lexicon product receiving or transmitting the serial communication packets to/from the HOST. Nonvolatile RAM: The area of memory in an MC-12 that stores users adjustable parameters. The Nonvolatile RAM is battery backed, to maintain values during MC-12 power down.

  • Page 7: General Description

    In addition, some the internal structure of the MC-12 has forced the protocol to be unable to support some MC-1 commands. These commands have been totally replaced with new commands that provide more control over the MC-12 than was capable in the MC-1. (Parameter Set/Get commands) © 2003 Lexicon, Inc. All rights reserved. 7 of 94...

  • Page 8: Physical Layer

    MC-12 labeled “RS232”. The wraparound plug shorts pins 2 to 3, allowing for the MC-12 to receive the signal it is transmitting. Once installed, power cycle the MC-12 and verify the following message is displayed on the FPD: © 2003 Lexicon, Inc. All rights reserved. 8 of 94...

  • Page 9: Data Link Layer

    NAK packet with an error code DC_ERR_INVALID_PACKET. The MC-12 then continues to look for a SOP byte and will not process the erroneous application packet. The HOST can use this as an indicator to retransmit the corrupted packet. © 2003 Lexicon, Inc. All rights reserved. 9 of 94...

  • Page 10: Application Layer

    The MC-12 front panel display is 2 X 20 ASCII character display. The HOST can enable transmission of this notification message by sending Host Wakeup (7.3.29). To disable transmission the HOST can send Host Sleep (7.3.30). Transmission of the display buffer is asynchronous to other host/MC-12 © 2003 Lexicon, Inc. All rights reserved. 10 of 94...

  • Page 11: Mc-1 Parameter Change (Mc-12, Mc-1)

    The MC-12 with s/w V3.0 will disable this notification by default. This notifications can be enabled and disabled by using the commands described in 7.3.31 Get Communication Configuration (MC-12, MC-1) and 7.3.32 Set Communication Configuration (MC-12, MC-1). © 2003 Lexicon, Inc. All rights reserved. 11 of 94...
  • Page 12 Balance and Zone 2 Mute only apply to the MC-12 Zone-2. For Input Parameter Change Notifications the Input Value is a MC-12 to MC-1 input mapping, as shown in Appendix F MC-12 Input Id's. © 2003 Lexicon, Inc. All rights reserved. 12 of 94...

  • Page 13: Mc-12 Parameter Notification By Id (Mc-12)

    Same as Paragraph 7.3.37.2 7.1.5.3 HOST Response The MC-12 does not expect any response from the HOST. 7.1.5.4 Defaults The following Parameters Notifications are Enabled in the MC-12 default state: © 2003 Lexicon, Inc. All rights reserved. 13 of 94...

  • Page 14: Acknowledgment Packets

    7.2.1.1 Packet Description Application Header: Command DC_ACK 0xE0 Data Count 10x01 Application Data: Data[0] Command 7.2.1.2 Data Description Command: DataType: Valid MC-12 command as defined in Appendix A Command Codes. © 2003 Lexicon, Inc. All rights reserved. 14 of 94...

  • Page 15: No Acknowledge (Mc-12, Mc-1)

    7.3.2 Restore (MC-12, MC-1) Commands the MC-12 to restore the system and effect parameters to the factory defaults. 7.3.2.1 Command Packet Description Application Header: Command DC_CMD_RESTORE_DEFAULTS 0x13 Data Count 0 0x00 Application Data: © 2003 Lexicon, Inc. All rights reserved. 15 of 94...

  • Page 16: Mc-1 Send Ir Command (Mc-12, Mc-1)

    HOST should use this information to determine if any information saved by the HOST is current. 7.3.4.1 Command Packet Description Application Header: Command DC_CMD_GET_CONFIG 0x15 Data Count 0x00 Application Data: © 2003 Lexicon, Inc. All rights reserved. 16 of 94...
  • Page 17 TimeStamp[14] Data[24] TimeStamp[15] 0x00 7.3.4.3 Data Description ProductId: This unsigned 8 bit value describes the product. Product ID Lexicon DC-2 Lexicon MC-1 JBL Synthesis SDP-3 Lexicon MC-12 JBL Synthesis SDP-40 © 2003 Lexicon, Inc. All rights reserved. 17 of 94...
  • Page 18 The Format of this text string is: “yy/mm/dd(sp)hh:mm” yy- is the last two digits of the year (i.e. year 1999 = 99, year 2000 = 00) mm - is the month © 2003 Lexicon, Inc. All rights reserved. 18 of 94...

  • Page 19: Get System Status (Mc-12, Mc-1)

    0 = -80 dB 92 = +12 dB Current Input: Data Type: Unsigned 8 bit integer Definition/Conversion: Appendix F MC-12 Input Ids Current Effect Id: Data Type: Unsigned 8 bit integer © 2003 Lexicon, Inc. All rights reserved. 19 of 94...
  • Page 20 32 = Back Video Synch: Data Type: Boolean. TRUE: MC-12 has detected Video Sync for current video input FALSE: MC-12 can not detect Video Sync for the current video input © 2003 Lexicon, Inc. All rights reserved. 20 of 94...

  • Page 21: Get Zone 2 Status (Mc-12, Mc-1)

    TRUE: Zone2 Outputs are active. FALSE: Zone 2 Outputs are not active. Record Active: Data Type: Boolean. TRUE: Record Zone Output is active FALSE: Record Zone Output is not Active. © 2003 Lexicon, Inc. All rights reserved. 21 of 94...

  • Page 22: Get System Parameter Definition (Mc-1)

    Number of Characters in Data Count CustomName + 1 Application Data: Data[0]- Data[DataCount-1] CustomName ch ch ch … 0x00 7.3.12.4 Data Description CustomName: Data Type: Null (0x00) terminated ASCII character string. © 2003 Lexicon, Inc. All rights reserved. 22 of 94...

  • Page 23: Get Input Name By Id (Mc-12, Mc-1)

    Data Type: Null (0x00) terminated ASCII character string. Max Length: INPUT_NAME_LENGTH defined in Appendix G Protocol Constants. 7.3.14 Get FPD Control Registers (MC-1) This command is not supported by the MC-12. © 2003 Lexicon, Inc. All rights reserved. 23 of 94...

  • Page 24: Set System Parameter Values (Mc-1)

    This command has been maintained for backward compatibility with MC-1. In order to maintain backward compatibility, the MC-12 Parameters have been mapped to the MC-1 parameters as described in each Data Description. MC-12 users should be using the command described in 7.3.48 (MC12_Set_Main_Balance). © 2003 Lexicon, Inc. All rights reserved. 24 of 94...

  • Page 25: Set Front/Back Balance (Mc-12, Mc-1)

    Data Count 1 0x01 Application Data: Data[0] Value 7.3.20.2 Data Description Value: Data Type: Unsigned 8 bit integer. Max: Conversion: 0 = Front 16 = Center 32 = Back 7.3.20.3 MC-12 Response © 2003 Lexicon, Inc. All rights reserved. 25 of 94...

  • Page 26: Set Active Effect By Id (Mc-12, Mc-1)

    MC-12 Parameters have been mapped to the MC-1 parameters as described in each Data Description. MC-12 users should be using the command described in 7.3.51 (MC12_Set_Record_Input). 7.3.22.1 Command Packet Description © 2003 Lexicon, Inc. All rights reserved. 26 of 94...

  • Page 27: Clear Record Input (Mc-12, Mc-1)

    This command has been maintained for backward compatibility with MC-1. In order to maintain backward compatibility, the MC-12 Parameters have been mapped to the MC-1 parameters as described in each Data Description. MC-12 users should be using the command described in 7.3.52 (MC12_Set_Zone2_Volume). © 2003 Lexicon, Inc. All rights reserved. 27 of 94...

  • Page 28: Set Zone2 Left/Right Balance (Mc-12, Mc-1)

    Data Type: Unsigned 8 bit integer Max: Conversion: 0 = Left 32 = Right 7.3.25.3 MC-12 Response The MC-12 will assign the value from the packet to the Zone 2 balance. © 2003 Lexicon, Inc. All rights reserved. 28 of 94...

  • Page 29: Set Custom Name (Mc-12, Mc-1)

    This command has been maintained for backward compatibility with MC-1. In order to maintain backward compatibility, the MC-12 Parameters have been mapped to the MC-1 parameters as described in each Data Description. MC-12 users should be using the command described in 7.3.55 (MC12_Set_Input_Name_By_Id). © 2003 Lexicon, Inc. All rights reserved. 29 of 94...

  • Page 30: Set Fpd Control Registers (Mc-1)

    7.3.29.1 Command Packet Description Application Header: Command HOST_WAKEUP 0x11 Data Count 0x00 Application Data: 7.3.29.2 Data Description 7.3.29.3 MC-12 Response The MC-12 will respond to this command with an ACK. © 2003 Lexicon, Inc. All rights reserved. 30 of 94...

  • Page 31: Host Sleep (Mc-12, Mc-1)

    The MC-12 will always transmit NAK error notification messages. Parameter Change Enable: TRUE Indicates the MC-12 will transmit any parameter change Notification as specified in the Parameter Change Notification Message. © 2003 Lexicon, Inc. All rights reserved. 31 of 94...

  • Page 32: Set Communication Configuration (Mc-12, Mc-1)

    The Set Mute Command message allows the RS232 users to set/clear the MC-12 mute state directly. 7.3.33.1 Command Packet Description Application Header: Command DC_CMD_SET_MUTE 0x31 Data Count 0x01 Application Data: Data[0] Mute State 7.3.33.2 Data Description © 2003 Lexicon, Inc. All rights reserved. 32 of 94...

  • Page 33: Set Output Level Adjustments (Mc-1)

    FPD only: If set TRUE, the display string will only be sent to the FPD device for display. Undefined. Undefined. Undefined. Undefined. Undefined. Undefined. Undefined. Display String: Data Type: Null (0x00) terminated ASCII character string. © 2003 Lexicon, Inc. All rights reserved. 33 of 94...

  • Page 34: Mc-12 Get Parameter Definition By Id (Mc-12)

    Max Parameter Count as reported by the MC-12 Unit Configuration Response Packet in 7.3.39.2 7.3.36.3 Data Validation: If the ParamId is not a valid Id the MC-12 will respond with a NAK packet and error code DC_ INVALID_PARAM_ID. © 2003 Lexicon, Inc. All rights reserved. 34 of 94...
  • Page 35 Boolean( 0 to 1) PARAM_TYPE_INT8 Signed 8 bit integer (-127 to 128) PARAM_TYPE_BRANCH Parameter Branch PARAM_TYPE_INT16 Signed 16 bit integer (-32,767 to 32,768) PARAM_TYPE_CSTR20 Zero terminated string of 20 ascii characters Data: © 2003 Lexicon, Inc. All rights reserved. 35 of 94...

  • Page 36: Mc-12 Set Parameter Value By Id (Mc-12)

    7.3.37.1 Command Packet Description Application Header: Command MC_CMD_SET_SYS_PARAM_VALUE_BY_ID 0x36 Data Count 24 0x18 Application Data: Data[0] ParamId(LSB) Data[1] ParamId(MSB) Data[2] ParamType Data[3-23] Value[0 -20] nn nn nn… © 2003 Lexicon, Inc. All rights reserved. 36 of 94...
  • Page 37 ParamType for the Parameter being transmitted, as per the Parameter Definition as transmitted by the MC_SYS_PARAM_DEF_PKT . If the types do not match The MC-12 will transmit a © 2003 Lexicon, Inc. All rights reserved. 37 of 94...

  • Page 38: Mc-12 Set Parameter Value By Id, No Run (Mc-12)

    The HOST should use this information to determine if any information saved by the HOST is current. 7.3.39.1 Command Packet Description Application Header: Command MC_CMD_GET_CONFIG 0x38 Data Count 0x00 Application Data: © 2003 Lexicon, Inc. All rights reserved. 38 of 94...
  • Page 39 Lexicon MC-12 JBL Synthesis SDP-40 Software Type: An unsigned 8 bit value indicating the current configuration of the unit’s software. The following table shows the values assigned to the available types: © 2003 Lexicon, Inc. All rights reserved. 39 of 94...
  • Page 40 The 16 bit value is packed LSB followed by the MSB. Total Number of Effects: An unsigned 8 bit integer value indicating the maximum number of effects available for this version of software. © 2003 Lexicon, Inc. All rights reserved. 40 of 94...

  • Page 41: Mc-12 Send Ir Command (Mc-12)

    Request to MC-12 for the current value of a given parameter. The MC-12 will respond with a “Parameter Value Packet”. 7.3.41.1 Command Packet Description Application Header: Command MC_CMD_GET_PARAM_VALUE_BY_ID 0x3A Data Count 0x02 Application Data: Data[0] ParamId (LSB) Data[1] ParamId (MSB) 7.3.41.2 Data Description © 2003 Lexicon, Inc. All rights reserved. 41 of 94...

  • Page 42: Mc-12 Set Parameter Notification By Id (Mc-12)

    Max Parameter Count as reported by the MC-12 Unit Configuration Response Packet in 7.3.39.2 Enable/Disable: Data Type: Boolean TRUE: Enable transmission of parameter notification FALSE: Disable transmission of parameter notification 7.3.42.3 Data Validation © 2003 Lexicon, Inc. All rights reserved. 42 of 94...

  • Page 43: Mc-12 Parameter Get Value String By Id (Mc-12)

    Command MC_RESP_VALUE_STRING 0x93 Number of Characters in Value Data Count String + 1 Application Data: ch ch ch Data[0] - Data[20] Value String … 0x00 7.3.43.5 Data Description Value String: © 2003 Lexicon, Inc. All rights reserved. 43 of 94...

  • Page 44: Mc-12 Clear All Parameter Notifications (Mc-12)

    Data[3] Current Input Sample Rate nn Data[4] Current Input Format Data[5] Mute Active Data[6] Effect Bypass Data[7] Left/Right Balance Data[8] Front/Back Balance Data[9] Video Sync 7.3.45.3 Data Description System Volume: © 2003 Lexicon, Inc. All rights reserved. 44 of 94...
  • Page 45 Signed 8 bit integer (2’s compliment) Max: 16 (0x10) (Full Right) Min: -16 (0xF0) (Full Left) Front/Back Balance: Data Type: Signed 8 bit integer (2’s compliment) Max: 16 (0x10) (Full Front) © 2003 Lexicon, Inc. All rights reserved. 45 of 94...

  • Page 46: Mc-12 Get Record Status (Mc-12)

    Data Type: Unsigned 8 bit integer. Definition/Conversion: Appendix F MC-12 Input Ids Zone2 Mute Active: Data Type: Boolean. TRUE: Zone2 Outputs are active. FALSE: Zone 2 Outputs are not active. © 2003 Lexicon, Inc. All rights reserved. 46 of 94...

  • Page 47: Mc-12 Set System Volume (Mc-12)

    Commands MC-12 to set the system balance to the value in this packet. 7.3.48.1 Command Packet Description Application Header: Command DC_CMD_SET_SYS_BALANCE 0x41 Data Count 1 0x01 Application Data: Data[0] Value © 2003 Lexicon, Inc. All rights reserved. 47 of 94...

  • Page 48: Mc-12 Set Front/Back Balance (Mc-12)

    NAK command with an error code DC_INVALID_DATA. 7.3.50 MC-12 Set Active Effect by Id (MC-12) This command requests the MC-12 to set the active effect to the value in this packet. © 2003 Lexicon, Inc. All rights reserved. 48 of 94...

  • Page 49: Mc-12 Set Record Input (Mc-12)

    The InputId must be a valid Input Id. If it is not the MC-12 will respond with a NAK packet and error code DC_INVALID_INPUT. If the input is assigned the MC-12 will respond with an ACK Packet. © 2003 Lexicon, Inc. All rights reserved. 49 of 94...

  • Page 50: Mc-12 Set Zone2 Volume (Mc-12)

    Max: +16 (0x10) (Full Right) Min: -16 (0xF0) (Full Left) 7.3.53.3 MC-12 Response The MC-12 will assign the value from the packet to the Zone 2 balance. 7.3.53.4 Data Validation © 2003 Lexicon, Inc. All rights reserved. 50 of 94...

  • Page 51: Mc-12 Get Input Name By Id (Mc-12)

    Data Type: Unsigned 8 bit Integer Definition/Conversion: Appendix F MC-12 Input Ids InputName: Data Type: Null (0x00) terminated ASCII character string. Max Length: INPUT_NAME_LENGTH defined in Appendix G Protocol Constants. © 2003 Lexicon, Inc. All rights reserved. 51 of 94...

  • Page 52: Mc-12 Set Input Name By Id (Mc-12)

    The InputId must be a valid Input Id. If it is not the MC-12 will respond with a NAK packet and error code DC_INVALID_INPUT. If the InputName string exceeds the INPUT_NAME_LENGTH, the MC-12 will truncate the string to the INPUT_NAME_LENGTH. © 2003 Lexicon, Inc. All rights reserved. 52 of 94...

  • Page 53: Appendix A Command Codes

    Lexicon, Inc. MC-12 Serial Communications Protocol Printed on: 08/18/03 Appendix A Command Codes Notifications: DC_NO_CMD 0x00 DC_WAKEUP 0x01 DC_SLEEP 0x02 DC_FPD 0x03 DC_PARAM_CHG_MSG 0x04 © 2003 Lexicon, Inc. All rights reserved. 53 of 94...
  • Page 54 DC_CMD_SET_FPD_CTRL 0x2A DC_CMD_GET_CUST_NAME 0x2B DC_CMD_SET_CUST_NAME 0x2C DC_CMD_GET_INPUT_NAME 0x2D DC_CMD_SET_INPUT_NAME 0x2E DC_CMD_GET_COM_CONFIG 0x2F DC_CMD_SET_COM_CONFIG 0x30 DC_CMD_SET_MUTE 0x31 DC_CMD_SET_OUTPUT_ADJ 0x32 DC_CMD_SEND_DISPLAY_STR 0x33 MC_CMD_GET_SYS_PARAM_BY_ID 0x35 MC_CMD_SET_SYS_PARAM_VALUE_BY_ID 0x36 MC_CMD_SET_SYS_PARAM_VALUE_BY_ID_NO_RUN 0x37 MC_CMD_GET_CONFIG 0x38 MC_CMD_IR 0x39 © 2003 Lexicon, Inc. All rights reserved. 54 of 94...

  • Page 55: Appendix B Error Codes

    DC_ERR_PARITY 0x02 DC_ERR_FRAMING 0x03 DC_ERR_OVERRUN 0x04 DC_ERR_INVALID_PACKET 0x05 DC_ERR_TIME_OUT 0x06 DC_ERR_BUFFER_FULL 0x07 DC_INVALID_COUNT 0x10 DC_INVALID_CMD 0x11 DC_INVALID_DATA 0x12 DC_INVALID_ADDRESS 0x13 DC_INVALID_EFFECT_ID 0x14 DC_INVALID_PARAM_ID 0x15 DC_INVALID_NAME 0x16 DC_INVALID_INPUT 0x17 DC_ERR_READ_ONLY 0x18 © 2003 Lexicon, Inc. All rights reserved. 55 of 94...

  • Page 57: Appendix C Dc-2, Mc-1 Ir-Codes

    SPARE 2B SPARE AB SPARE SPARE 2C SPARE AC SPARE SPARE 2D SPARE AD SPARE SPARE 2E SPARE AE SPARE SPARE 2F SPARE AF SPARE Null 30 null B0 null © 2003 Lexicon, Inc. All rights reserved. 57 of 94...

  • Page 58: Appendix D Mc-12 Ir Codes

    0x4E Reserved 0xCE MONO_LOGIC 0x8E DTS_LOGO 0x0F Reserved 0x4F Reserved 0xCF DTS_ES_TOGGLE 0x8F MUSIC 0x10 Reserved 0x50 Reserved 0xD0 MUSIC_SURROUND 0x90 44-55 Deleted None Deleted None Deleted None Deleted None © 2003 Lexicon, Inc. All rights reserved. 58 of 94...

  • Page 59: Appendix E Mc-1 Input Id's

    DVD1 DVD2 V-Disc GAME TAPE TAPE TUNER TUNER Appendix G Protocol Constants Constant Value (Dec) Units FPD_LINE_LENGTH 20Chars PARAM_NAME_LENGTH 13Chars CUSTOM_NAME_LENGTH 20Chars INPUT_NAME_LENGTH 8Chars PARAM_PATH_LENGTH 80Chars INTER_PACKET_TIME 200mSec 0xF1 0xF2 © 2003 Lexicon, Inc. All rights reserved. 59 of 94...

  • Page 60: Appendix H Mc-12 To Mc-1 Effect Map

    5.1a L7 Music 5.1 Music 5.1a 2-Channel 5.1 2-Channel 5.1a Standard Dolby Digital 5.1a THX THX 5.1 Nightclub Nightclub Concert Hall Concert Hall Church Church Cathedral Cathedral L7 Music Surround Music Surround © 2003 Lexicon, Inc. All rights reserved. 60 of 94...

  • Page 61: Appendix I Mc-1 To Mc-12 Effect Id Map

    5.1 2-Channel dts Film dts THX 5.1 dts THX dts Logic 7 dts L7 Film dts Music dts L7 Music dts 2-Channel dts 2-Chan dts 2-Channel none none none none none © 2003 Lexicon, Inc. All rights reserved. 61 of 94...

  • Page 62: Appendix J Mc-12 Mode Ids

    External Noise PLII External Noise Dolby Digital External Noise dts 5.1a L7 Film 5.1a L7 Music 5.1a 2-Channel 5.1a Standard 5.1a THX NightClub Concert Hall Church Cathedral L7 Music Surround © 2003 Lexicon, Inc. All rights reserved. 62 of 94...

  • Page 63: Application Notes And Examples

    Because of some limitations in the IR codes the HOST also has direct control over the system volume, balance, fader, effect selection, zone 2 volume, balance and input selection through dedicated commands. © 2003 Lexicon, Inc. All rights reserved. 63 of 94...

  • Page 65: Examples

    Stamp (sp) DATA26 DATA27 DATA28 DATA29 Serial Serial Number Serial Serial Number (LSB) Number Number (MSB) From the response packet we can see that the MC-12 is configured as a © 2003 Lexicon, Inc. All rights reserved. 65 of 94...

  • Page 66: Send Mc-1 Ir Command Example

    “Volume Up”(17 hex). To transmit other IR Key Codes the user would replace this byte with other IR key codes as found in Appendix C MC-12 IR-Codes. Byte 5: End of Packet (F2 hex) © 2003 Lexicon, Inc. All rights reserved. 66 of 94...

  • Page 67: Send Mc-12 Ir Command Example

    13 0x000D PARAM.INPUTS.OFF.RSRCMODE 14 0x000E PARAM.INPUTS.OFF.ZSRCMODE 15 0x000F PARAM.INPUTS.OFF.RECTRIM 16 0x0010 PARAM.INPUTS.OFF.SPDIF 17 0x0011 PARAM.INPUTS.OFF.ANLGBYPASS 18 0x0012 PARAM.INPUTS.OFF.DIGBYPASS 19 0x0013 PARAM.INPUTS.OFF.TRIGGER1 20 0x0014 PARAM.INPUTS.OFF.TRIGGER2 21 0x0015 PARAM.INPUTS.OFF.COMPONENTIN 22 0x0016 PARAM.INPUTS.OFF.SVID_16_9 © 2003 Lexicon, Inc. All rights reserved. 67 of 94...
  • Page 68 65 0x0041 PARAM.INPUTS.DVD2.RECTRIM 66 0x0042 PARAM.INPUTS.DVD2.SPDIF 67 0x0043 PARAM.INPUTS.DVD2.ANLGBYPASS 68 0x0044 PARAM.INPUTS.DVD2.DIGBYPASS 69 0x0045 PARAM.INPUTS.DVD2.TRIGGER1 70 0x0046 PARAM.INPUTS.DVD2.TRIGGER2 71 0x0047 PARAM.INPUTS.DVD2.COMPONENTIN 72 0x0048 PARAM.INPUTS.DVD2.SVID_16_9 73 0x0049 PARAM.INPUTS.DVD2.RECBLOCK 74 0x004A PARAM.INPUTS.DVD2.SVIDOSD_4_3 © 2003 Lexicon, Inc. All rights reserved. 68 of 94...
  • Page 69 117 0x0075 PARAM.INPUTS.CD.ANLGBYPASS 118 0x0076 PARAM.INPUTS.CD.DIGBYPASS 119 0x0077 PARAM.INPUTS.CD.TRIGGER1 120 0x0078 PARAM.INPUTS.CD.TRIGGER2 121 0x0079 PARAM.INPUTS.CD.COMPONENTIN 122 0x007A PARAM.INPUTS.CD.SVID_16_9 123 0x007B PARAM.INPUTS.CD.RECBLOCK 124 0x007C PARAM.INPUTS.CD.SVIDOSD_4_3 125 0x007D PARAM.INPUTS.CD.COMPNTOSD 126 0x007E PARAM.INPUTS.CD._51_AD_EFFECT © 2003 Lexicon, Inc. All rights reserved. 69 of 94...
  • Page 70 169 0x00A9 PARAM.INPUTS.TUNER.TRIGGER1 170 0x00AA PARAM.INPUTS.TUNER.TRIGGER2 171 0x00AB PARAM.INPUTS.TUNER.COMPONENTIN 172 0x00AC PARAM.INPUTS.TUNER.SVID_16_9 173 0x00AD PARAM.INPUTS.TUNER.RECBLOCK 174 0x00AE PARAM.INPUTS.TUNER.SVIDOSD_4_3 175 0x00AF PARAM.INPUTS.TUNER.COMPNTOSD 176 0x00B0 PARAM.INPUTS.TUNER._51_AD_EFFECT 177 0x00B1 PARAM.INPUTS.TV 178 0x00B2 PARAM.INPUTS.TV.INPNAME © 2003 Lexicon, Inc. All rights reserved. 70 of 94...
  • Page 71 221 0x00DD PARAM.INPUTS.VCR.COMPONENTIN 222 0x00DE PARAM.INPUTS.VCR.SVID_16_9 223 0x00DF PARAM.INPUTS.VCR.RECBLOCK 224 0x00E0 PARAM.INPUTS.VCR.SVIDOSD_4_3 225 0x00E1 PARAM.INPUTS.VCR.COMPNTOSD 226 0x00E2 PARAM.INPUTS.VCR._51_AD_EFFECT 227 0x00E3 PARAM.INPUTS.PVR 228 0x00E4 PARAM.INPUTS.PVR.INPNAME 229 0x00E5 PARAM.INPUTS.PVR.DIGIN 230 0x00E6 PARAM.INPUTS.PVR.ANLGIN © 2003 Lexicon, Inc. All rights reserved. 71 of 94...
  • Page 72 273 0x0111 PARAM.INPUTS.SAT.RECBLOCK 274 0x0112 PARAM.INPUTS.SAT.SVIDOSD_4_3 275 0x0113 PARAM.INPUTS.SAT.COMPNTOSD 276 0x0114 PARAM.INPUTS.SAT._51_AD_EFFECT 277 0x0115 PARAM.INPUTS.GAME 278 0x0116 PARAM.INPUTS.GAME.INPNAME 279 0x0117 PARAM.INPUTS.GAME.DIGIN 280 0x0118 PARAM.INPUTS.GAME.ANLGIN 281 0x0119 PARAM.INPUTS.GAME.ANLGTRIM 282 0x011A PARAM.INPUTS.GAME.TRIMMODE © 2003 Lexicon, Inc. All rights reserved. 72 of 94...
  • Page 73 325 0x0145 PARAM.INPUTS.AUX.COMPNTOSD 326 0x0146 PARAM.INPUTS.AUX._51_AD_EFFECT 327 0x0147 PARAM.INPUTS.ANLGCONFIG 328 0x0148 PARAM.INPUTS.LEVELS 329 0x0149 PARAM.INPUTS.LEVELS.INLEFT 330 0x014A PARAM.INPUTS.LEVELS.INRIGHT 331 0x014B PARAM.INPUTS.LEVELS.INCENTER 332 0x014C PARAM.INPUTS.LEVELS.INLFE 333 0x014D PARAM.INPUTS.LEVELS.SIDELEFT 334 0x014E PARAM.INPUTS.LEVELS.SIDERIGHT © 2003 Lexicon, Inc. All rights reserved. 73 of 94...
  • Page 74 377 0x0179 PARAM.MAIN.OUTPUTS.CENTER.DISTANCE 378 0x017A PARAM.MAIN.OUTPUTS.CENTER.OUTLEVEL 379 0x017B PARAM.MAIN.OUTPUTS.SIDE 380 0x017C PARAM.MAIN.OUTPUTS.SIDE.HP_XOVER 381 0x017D PARAM.MAIN.OUTPUTS.SIDE.LEFT 382 0x017E PARAM.MAIN.OUTPUTS.SIDE.LEFT.DISTANCE 383 0x017F PARAM.MAIN.OUTPUTS.SIDE.LEFT.OUTLEVEL 384 0x0180 PARAM.MAIN.OUTPUTS.SIDE.RIGHT 385 0x0181 PARAM.MAIN.OUTPUTS.SIDE.RIGHT.DISTANCE 386 0x0182 PARAM.MAIN.OUTPUTS.SIDE.RIGHT.OUTLEVEL © 2003 Lexicon, Inc. All rights reserved. 74 of 94...
  • Page 75 429 0x01AD PARAM.MAIN.BASS 430 0x01AE PARAM.MAIN.TREBLE 431 0x01AF PARAM.MAIN.TILT 432 0x01B0 PARAM.MAIN.MUTE 433 0x01B1 PARAM.MAIN.MODE 434 0x01B2 PARAM.MAIN.LOUDNESS 435 0x01B3 PARAM.MAIN.DOLBYDATA 436 0x01B4 PARAM.MAIN.DOLBYDATA.DD_CHAN 437 0x01B5 PARAM.MAIN.DOLBYDATA.ENCODING 438 0x01B6 PARAM.MAIN.DOLBYDATA.REF_OFFSET © 2003 Lexicon, Inc. All rights reserved. 75 of 94...
  • Page 76 481 0x01E1 PARAM.EFFECTS.INT_NOISE.OUTPUTLEVELS.REAROUTLEVEL 482 0x01E2 PARAM.EFFECTS.INT_NOISE.OUTPUTLEVELS.SUBOUTLEVEL 483 0x01E3 PARAM.EFFECTS.INT_NOISE.OUTPUTLEVELS.LFEOUTLEVEL 484 0x01E4 PARAM.EFFECTS.INT_NOISE.TRIGGER1 485 0x01E5 PARAM.EFFECTS.INT_NOISE.TRIGGER2 486 0x01E6 PARAM.EFFECTS.INT_NOISE.FRONTOUTLEVEL 487 0x01E7 PARAM.EFFECTS.LOGIC7 488 0x01E8 PARAM.EFFECTS.LOGIC7.NAME 489 0x01E9 PARAM.EFFECTS.LOGIC7.OUTPUTLEVELS 490 0x01EA PARAM.EFFECTS.LOGIC7.OUTPUTLEVELS.CNTROUTLEVEL © 2003 Lexicon, Inc. All rights reserved. 76 of 94...
  • Page 77 533 0x0215 PARAM.EFFECTS.TV_LOGIC.TRIGGER1 534 0x0216 PARAM.EFFECTS.TV_LOGIC.TRIGGER2 535 0x0217 PARAM.EFFECTS.TV_LOGIC.HIFRONT_REARROLLOFF 536 0x0218 PARAM.EFFECTS.TV_LOGIC.AUTOBALON 537 0x0219 PARAM.EFFECTS.MUSIC_LOGIC 538 0x021A PARAM.EFFECTS.MUSIC_LOGIC.NAME 539 0x021B PARAM.EFFECTS.MUSIC_LOGIC.OUTPUTLEVELS 540 0x021C PARAM.EFFECTS.MUSIC_LOGIC.OUTPUTLEVELS.CNTROUTLEVEL 541 0x021D PARAM.EFFECTS.MUSIC_LOGIC.OUTPUTLEVELS.SIDEOUTLEVEL 542 0x021E PARAM.EFFECTS.MUSIC_LOGIC.OUTPUTLEVELS.REAROUTLEVEL © 2003 Lexicon, Inc. All rights reserved. 77 of 94...
  • Page 78 585 0x0249 PARAM.EFFECTS.PROLOGIC.OUTPUTLEVELS 586 0x024A PARAM.EFFECTS.PROLOGIC.OUTPUTLEVELS.CNTROUTLEVEL 587 0x024B PARAM.EFFECTS.PROLOGIC.OUTPUTLEVELS.SIDEOUTLEVEL 588 0x024C PARAM.EFFECTS.PROLOGIC.OUTPUTLEVELS.REAROUTLEVEL 589 0x024D PARAM.EFFECTS.PROLOGIC.OUTPUTLEVELS.SUBOUTLEVEL 590 0x024E PARAM.EFFECTS.PROLOGIC.OUTPUTLEVELS.LFEOUTLEVEL 591 0x024F PARAM.EFFECTS.PROLOGIC.TWO_CH_MUX 592 0x0250 PARAM.EFFECTS.PROLOGIC.TWOCHCNTRMIX 593 0x0251 PARAM.EFFECTS.PROLOGIC.CENTERDELAY 594 0x0252 PARAM.EFFECTS.PROLOGIC.MONOREARON © 2003 Lexicon, Inc. All rights reserved. 78 of 94...
  • Page 79 637 0x027D PARAM.EFFECTS.PL2MUSIC.DIMENSION 638 0x027E PARAM.EFFECTS.PL2MUSIC.TRIGGER1 639 0x027F PARAM.EFFECTS.PL2MUSIC.TRIGGER2 640 0x0280 PARAM.EFFECTS.PARTY 641 0x0281 PARAM.EFFECTS.PARTY.NAME 642 0x0282 PARAM.EFFECTS.PARTY.OUTPUTLEVELS 643 0x0283 PARAM.EFFECTS.PARTY.OUTPUTLEVELS.CNTROUTLEVEL 644 0x0284 PARAM.EFFECTS.PARTY.OUTPUTLEVELS.SIDEOUTLEVEL 645 0x0285 PARAM.EFFECTS.PARTY.OUTPUTLEVELS.REAROUTLEVEL 646 0x0286 PARAM.EFFECTS.PARTY.OUTPUTLEVELS.SUBOUTLEVEL © 2003 Lexicon, Inc. All rights reserved. 79 of 94...
  • Page 80 689 0x02B1 PARAM.EFFECTS.MONO.OUTPUTLEVELS.CNTROUTLEVEL 690 0x02B2 PARAM.EFFECTS.MONO.OUTPUTLEVELS.SIDEOUTLEVEL 691 0x02B3 PARAM.EFFECTS.MONO.OUTPUTLEVELS.REAROUTLEVEL 692 0x02B4 PARAM.EFFECTS.MONO.OUTPUTLEVELS.SUBOUTLEVEL 693 0x02B5 PARAM.EFFECTS.MONO.OUTPUTLEVELS.LFEOUTLEVEL 694 0x02B6 PARAM.EFFECTS.MONO.USEREVERB 695 0x02B7 PARAM.EFFECTS.MONO.FRONTOUTLEVEL 696 0x02B8 PARAM.EFFECTS.MONO.TRIGGER1 697 0x02B9 PARAM.EFFECTS.MONO.TRIGGER2 698 0x02BA PARAM.EFFECTS.MONO_SURROUND © 2003 Lexicon, Inc. All rights reserved. 80 of 94...
  • Page 81 737 0x02E1 PARAM.EFFECTS._51_MUSIC.OUTPUTLEVELS.CNTROUTLEVEL 738 0x02E2 PARAM.EFFECTS._51_MUSIC.OUTPUTLEVELS.SIDEOUTLEVEL 739 0x02E3 PARAM.EFFECTS._51_MUSIC.OUTPUTLEVELS.REAROUTLEVEL 740 0x02E4 PARAM.EFFECTS._51_MUSIC.OUTPUTLEVELS.SUBOUTLEVEL 741 0x02E5 PARAM.EFFECTS._51_MUSIC.OUTPUTLEVELS.LFEOUTLEVEL 742 0x02E6 PARAM.EFFECTS._51_MUSIC.VOCALENH 743 0x02E7 PARAM.EFFECTS._51_MUSIC.FIVESPKRENH 744 0x02E8 PARAM.EFFECTS._51_MUSIC.BASSENH 745 0x02E9 PARAM.EFFECTS._51_MUSIC.REEQ 746 0x02EA PARAM.EFFECTS._51_MUSIC.REARDLYOFF © 2003 Lexicon, Inc. All rights reserved. 81 of 94...
  • Page 82 789 0x0315 PARAM.EFFECTS._51_THX.OUTPUTLEVELS.REAROUTLEVEL 790 0x0316 PARAM.EFFECTS._51_THX.OUTPUTLEVELS.SUBOUTLEVEL 791 0x0317 PARAM.EFFECTS._51_THX.OUTPUTLEVELS.LFEOUTLEVEL 792 0x0318 PARAM.EFFECTS._51_THX.COMPRESSION 793 0x0319 PARAM.EFFECTS._51_THX.LFEMIX 794 0x031A PARAM.EFFECTS._51_THX.TWO_CH_MUX 795 0x031B PARAM.EFFECTS._51_THX.TWOCHCNTRMIX 796 0x031C PARAM.EFFECTS._51_THX.CENTERDELAY 797 0x031D PARAM.EFFECTS._51_THX.MONOREARON 798 0x031E PARAM.EFFECTS._51_THX.DECORRELATE © 2003 Lexicon, Inc. All rights reserved. 82 of 94...
  • Page 83 841 0x0349 PARAM.EFFECTS._51_2CHANNEL.VOCALENH 842 0x034A PARAM.EFFECTS._51_2CHANNEL.REEQ 843 0x034B PARAM.EFFECTS._51_2CHANNEL.SURRMIX 844 0x034C PARAM.EFFECTS._51_2CHANNEL.MASTERLEVEL 845 0x034D PARAM.EFFECTS._51_2CHANNEL.TRIGGER1 846 0x034E PARAM.EFFECTS._51_2CHANNEL.TRIGGER2 847 0x034F PARAM.EFFECTS._51_2CHANNEL.MONOREARON 848 0x0350 PARAM.EFFECTS._51_MONO_SURROUND 849 0x0351 PARAM.EFFECTS._51_MONO_SURROUND.NAME 850 0x0352 PARAM.EFFECTS._51_MONO_SURROUND.OUTPUTLEVELS © 2003 Lexicon, Inc. All rights reserved. 83 of 94...
  • Page 84 886 0x0376 PARAM.EFFECTS._51_AD_FILM.LFEMIX 887 0x0377 PARAM.EFFECTS._51_AD_FILM.TWO_CH_MUX 888 0x0378 PARAM.EFFECTS._51_AD_FILM.TWOCHCNTRMIX 889 0x0379 PARAM.EFFECTS._51_AD_FILM.CENTERDELAY 890 0x037A PARAM.EFFECTS._51_AD_FILM.SOUNDSTAGE 891 0x037B PARAM.EFFECTS._51_AD_FILM.FRONTSTEER 892 0x037C PARAM.EFFECTS._51_AD_FILM.SURREX 893 0x037D PARAM.EFFECTS._51_AD_FILM.SEVENCHANNEL 894 0x037E PARAM.EFFECTS._51_AD_FILM.TRIGGER1 895 0x037F PARAM.EFFECTS._51_AD_FILM.TRIGGER2 © 2003 Lexicon, Inc. All rights reserved. 84 of 94...
  • Page 85 929 0x03A1 PARAM.EFFECTS.DTS 930 0x03A2 PARAM.EFFECTS.DTS.NAME 931 0x03A3 PARAM.EFFECTS.DTS.OUTPUTLEVELS 932 0x03A4 PARAM.EFFECTS.DTS.OUTPUTLEVELS.CNTROUTLEVEL 933 0x03A5 PARAM.EFFECTS.DTS.OUTPUTLEVELS.SIDEOUTLEVEL 934 0x03A6 PARAM.EFFECTS.DTS.OUTPUTLEVELS.REAROUTLEVEL 935 0x03A7 PARAM.EFFECTS.DTS.OUTPUTLEVELS.SUBOUTLEVEL 936 0x03A8 PARAM.EFFECTS.DTS.OUTPUTLEVELS.LFEOUTLEVEL 937 0x03A9 PARAM.EFFECTS.DTS.LFEMIX 938 0x03AA PARAM.EFFECTS.DTS.TWO_CH_MUX © 2003 Lexicon, Inc. All rights reserved. 85 of 94...
  • Page 86 981 0x03D5 PARAM.EFFECTS.DTS_THX.LFEMIX 982 0x03D6 PARAM.EFFECTS.DTS_THX.TWO_CH_MUX 983 0x03D7 PARAM.EFFECTS.DTS_THX.TWOCHCNTRMIX 984 0x03D8 PARAM.EFFECTS.DTS_THX.CENTERDELAY 985 0x03D9 PARAM.EFFECTS.DTS_THX.MONOREARON 986 0x03DA PARAM.EFFECTS.DTS_THX.DECORRELATE 987 0x03DB PARAM.EFFECTS.DTS_THX.VOCALENH 988 0x03DC PARAM.EFFECTS.DTS_THX.REEQ 989 0x03DD PARAM.EFFECTS.DTS_THX.TIMBRE 990 0x03DE PARAM.EFFECTS.DTS_THX.SURREX © 2003 Lexicon, Inc. All rights reserved. 86 of 94...
  • Page 87 1033 0x0409 PARAM.EFFECTS.DTS_2CHANNEL.MONOREARON 1034 0x040A PARAM.EFFECTS.DTS_2CHANNEL.DECORRELATE 1035 0x040B PARAM.EFFECTS.DTS_2CHANNEL.VOCALENH 1036 0x040C PARAM.EFFECTS.DTS_2CHANNEL.REEQ 1037 0x040D PARAM.EFFECTS.DTS_2CHANNEL.SURRMIX 1038 0x040E PARAM.EFFECTS.DTS_2CHANNEL.MASTERLEVEL 1039 0x040F PARAM.EFFECTS.DTS_2CHANNEL.TRIGGER1 1040 0x0410 PARAM.EFFECTS.DTS_2CHANNEL.TRIGGER2 1041 0x0411 PARAM.EFFECTS.DTS_2CHANNEL.DTS_ES_DETECT 1042 0x0412 PARAM.EFFECTS.DTS_NEO_MUSIC © 2003 Lexicon, Inc. All rights reserved. 87 of 94...
  • Page 88 1083 0x043B PARAM.EFFECTS._51_AD_MUSIC.SOUNDSTAGE 1084 0x043C PARAM.EFFECTS._51_AD_MUSIC.FRONTSTEER 1085 0x043D PARAM.EFFECTS._51_AD_MUSIC.SURREX 1086 0x043E PARAM.EFFECTS._51_AD_MUSIC.SEVENCHANNEL 1087 0x043F PARAM.EFFECTS._51_AD_MUSIC.TRIGGER1 1088 0x0440 PARAM.EFFECTS._51_AD_MUSIC.TRIGGER2 1089 0x0441 PARAM.EFFECTS._51_AD_MUSIC.MONOREARON 1090 0x0442 PARAM.EFFECTS._51_AD_2CHANNEL 1091 0x0443 PARAM.EFFECTS._51_AD_2CHANNEL.NAME 1092 0x0444 PARAM.EFFECTS._51_AD_2CHANNEL.OUTPUTLEVELS © 2003 Lexicon, Inc. All rights reserved. 88 of 94...
  • Page 89 1131 0x046B PARAM.EFFECTS._51_AD_THX.TWO_CH_MUX 1132 0x046C PARAM.EFFECTS._51_AD_THX.TWOCHCNTRMIX 1133 0x046D PARAM.EFFECTS._51_AD_THX.CENTERDELAY 1134 0x046E PARAM.EFFECTS._51_AD_THX.MONOREARON 1135 0x046F PARAM.EFFECTS._51_AD_THX.DECORRELATE 1136 0x0470 PARAM.EFFECTS._51_AD_THX.VOCALENH 1137 0x0471 PARAM.EFFECTS._51_AD_THX.REEQ 1138 0x0472 PARAM.EFFECTS._51_AD_THX.TIMBRE 1139 0x0473 PARAM.EFFECTS._51_AD_THX.SURREXA 1140 0x0474 PARAM.EFFECTS._51_AD_THX.THXMODEON © 2003 Lexicon, Inc. All rights reserved. 89 of 94...
  • Page 90 1179 0x049B PARAM.EFFECTS._51_THX_MUSIC.MONOREARON 1180 0x049C PARAM.EFFECTS._51_THX_MUSIC.DECORRELATE 1181 0x049D PARAM.EFFECTS._51_THX_MUSIC.VOCALENH 1182 0x049E PARAM.EFFECTS._51_THX_MUSIC.REEQ 1183 0x049F PARAM.EFFECTS._51_THX_MUSIC.TIMBRE 1184 0x04A0 PARAM.EFFECTS._51_THX_MUSIC.SURREX 1185 0x04A1 PARAM.EFFECTS._51_THX_MUSIC.THXMODEON 1186 0x04A2 PARAM.EFFECTS._51_THX_MUSIC.TRIGGER1 1187 0x04A3 PARAM.EFFECTS._51_THX_MUSIC.TRIGGER2 1188 0x04A4 PARAM.EFFECTS._51_THX_MUSIC.REARTIMBRE © 2003 Lexicon, Inc. All rights reserved. 90 of 94...
  • Page 91 1231 0x04CF PARAM.EFFECTS.NIGHTCLUB.TRIGGER2 1232 0x04D0 PARAM.EFFECTS.NIGHTCLUB.EFFECTLEVEL 1233 0x04D1 PARAM.EFFECTS.NIGHTCLUB.SURRROLLOFF 1234 0x04D2 PARAM.EFFECTS.NIGHTCLUB.SIZE 1235 0x04D3 PARAM.EFFECTS.NIGHTCLUB.PREDELAY 1236 0x04D4 PARAM.EFFECTS.NIGHTCLUB.MIDRT 1237 0x04D5 PARAM.EFFECTS.NIGHTCLUB.SPEECHDETECT 1238 0x04D6 PARAM.EFFECTS.NIGHTCLUB.CENTERDRYLEVEL 1239 0x04D7 PARAM.EFFECTS.CONCERT_HALL 1240 0x04D8 PARAM.EFFECTS.CONCERT_HALL.NAME © 2003 Lexicon, Inc. All rights reserved. 91 of 94...
  • Page 92 1283 0x0503 PARAM.EFFECTS.CATHEDRAL.OUTPUTLEVELS.LFEOUTLEVEL 1284 0x0504 PARAM.EFFECTS.CATHEDRAL.TRIGGER1 1285 0x0505 PARAM.EFFECTS.CATHEDRAL.TRIGGER2 1286 0x0506 PARAM.EFFECTS.CATHEDRAL.EFFECTLEVEL 1287 0x0507 PARAM.EFFECTS.CATHEDRAL.SURRROLLOFF 1288 0x0508 PARAM.EFFECTS.CATHEDRAL.SIZE2 1289 0x0509 PARAM.EFFECTS.CATHEDRAL.PREDELAY 1290 0x050A PARAM.EFFECTS.CATHEDRAL.MIDRT 1291 0x050B PARAM.EFFECTS.CATHEDRAL.SPEECHDETECT 1292 0x050C PARAM.EFFECTS.CATHEDRAL.MONOLOGICFRONTEND © 2003 Lexicon, Inc. All rights reserved. 92 of 94...
  • Page 93 1335 0x0537 PARAM.EFFECTS.PANORAMA.REARDLYOFF 1336 0x0538 PARAM.EFFECTS.PANORAMA.BASSCONTENT 1337 0x0539 PARAM.EFFECTS.PANORAMA.SPEAKERANGLE 1338 0x053A PARAM.EFFECTS.PANORAMA.FINETIMEALIGN 1339 0x053B PARAM.EFFECTS.PANORAMA.CALSOURCE 1340 0x053C PARAM.EFFECTS.PANORAMA.CALIBRATEACTIVE 1341 0x053D PARAM.OSD 1342 0x053E PARAM.OSD.STATUS 1343 0x053F PARAM.OSD.POSITION 1344 0x0540 PARAM.OSD.FORMAT © 2003 Lexicon, Inc. All rights reserved. 93 of 94...
  • Page 94 1360 0x0550 PARAM.TRIGGER1MODE 1361 0x0551 PARAM.TRIGGER2MODE 1362 0x0552 PARAM.USERMESSAGE 1363 0x0553 PARAM.COM 1364 0x0554 PARAM.COM.CONFIGREG0 1365 0x0555 PARAM.TMPKEY 1366 0x0556 PARAM.ERRORS 1367 0x0557 PARAM.ERRORS.ERROR1 1368 0x0558 PARAM.ERRORS.ERROR2 1369 0x0559 PARAM.LANGUAGE © 2003 Lexicon, Inc. All rights reserved. 94 of 94...
