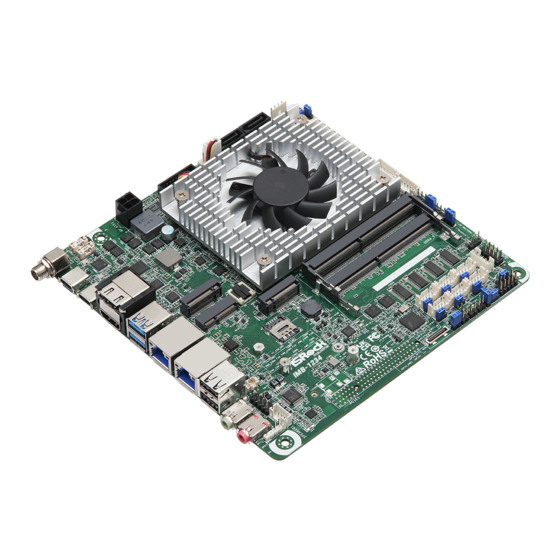

1 : M.2 Key-E Socket (M2_E1)
PIN SIGNAL SIGNAL PIN
1 GND +3.3V 2
3 USB_D+ +3.3V 4
5 USB_D- NA 6
7 GND NA 8
9 NA NA 10
11 NA NA 12
13 NA NA 14
15 NA NA 16
17 NA GND 18
19 NA NA 20
21 NA NA 22
23 NA
33 GND NA 32
35 PETp NA 34
37 PETn NA
36
39 GND NA 38
41 PERp NA 40
43 PERn NA 42
45 GND NA 44
47 PEFCLKp NA 46
49 PEFCLKn NA 48
51 GND NA 50
53 CLKREQ# PERST0# 52
55 WAKE# NA 54
57 GND NA 56
59 NA SMB_DATA 58
61 NA SMB_CLK 60
63 GND NA 62
65 NA NA 64
67 NA NA 66
69 GND NA 68
71 NA NA 70
73 NA +3.3V 72
75 GND +3.3V 74
2 : M.2 Key-M Socket (M2_M1)
PIN SIGNAL SIGNAL PIN
1 GND +3.3V 2
3 GND +3.3V 4
5 NA NA 6
7 NA NA 8
9 GND SATA_LED 10
11 NA +3.3V 12
13 NA +3.3V 14
15 GND +3.3V 16
17 NA +3.3V 18
19 NA NA 20
21 GND NA 22
23 NA NA 24
25 NA NA 26
27 GND NA 28
29 PERn1 NA 30
31 PERp1 NA 32
33 GND NA 34
35 PETn1 NA 36
37 PETp1 NA 38
39 GND NA 40
41 PERn0/SATA-B+ NA 42
43 PERp0/SATA-B- NA 44
45 GND NA 46
47 PETn0/SATA-A- NA 48
49 PETp0/SATA-A+ PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
3 : 4-pin ATX PWR Connector
1-2: GND
3-4: DC Input

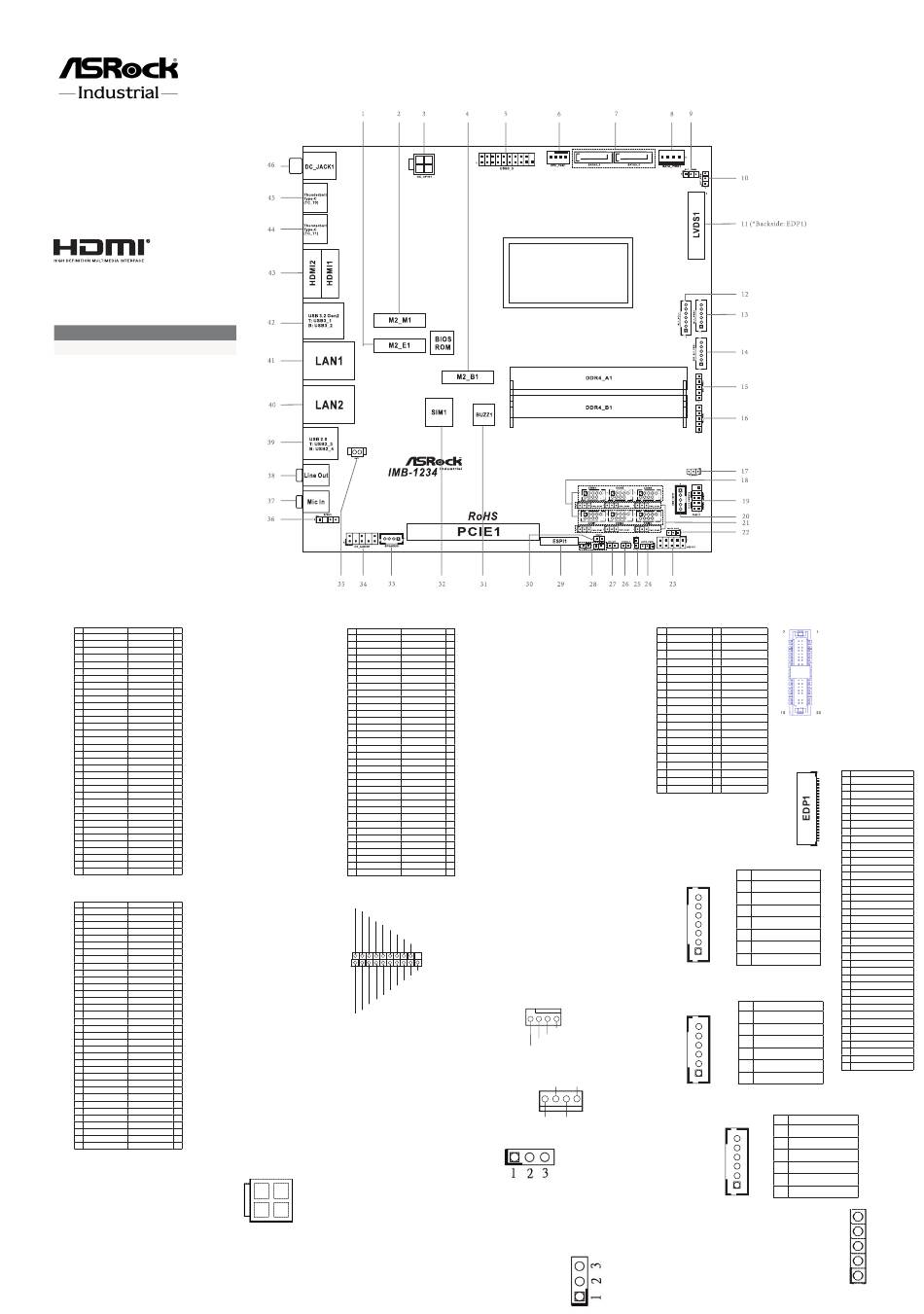

Jumpers and Headers Setting Guide

4 : M.2 Key-B Socket (M2_B1)
PIN SIGNAL
1 NA
3 GND
5 GND FuLL_Card_Power_off
7 USB_D+
9 USB_D-
11 GND
21 GND
23 NA
25 NA
27 GND
29 USB3_RX-
31 USB3_RX+
33 GND
35
USB3_TX-
37 USB3_TX+
39 GND
41 PERn0
43 PERP0
45 GND
47 PETn0
49 PETP0
51 GND
53 PEFCLKn
55 PEFCLKp
57 GND
59 NA
61 NA
63 NA
65 NA
67 NA
69 PEDET
71 GND
73 GND
75 NA
5 : USB3.2 Gen1 Header (USB3_3)
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
1
IntA_P_SSRX-
IntA_P_SSRX+
GND
IntA_P_SSTX-
IntA_P_SSTX+
GND
IntA_P_D-
IntA_P_D+
ID
6 : CPU FAN Connector (+12V)
7 : SATA3 Connectors (SATA3_0, SATA3_1)
8 : SATA Power Output Connector
9 : Brightness Control Mode (BLT_PWM2)
1-2: +3V (eDP)
2-3: +5V (LVDS)
3
1
10 : Brightness Control Mode (BLT_PWM1)
1-2: From eDP PWM to CON_LBKLT_CTL
2-3: From LVDS PWM to CON_LBKLT_CTL
4 2
* Please set to 1-2 when adjusting brightness by Brightness
Control bar under OS.
* Please set to 2-3 when adjusting brightness by
BLT_VOL1.
SIGNAL PIN
+3.3V 2
+3.3V 4
6
W_DISABLE1# 8
WWAN_LED# 10
NA 20
NA 22
NA 24
W_DISABLE2# 26
NA 28
UIM_RESET 30
UIM_CLK 32
34
UIM_DATA
UIM_PWR 36
NA 38
NA 40
NA 42
NA 44
NA 46
NA 48
PERST# 50
CLKREQ# 52
WAKE# 54
NA 56
NA 58
NA 60
NA 62
NA 64
NA 66
NA 68
+3.3V 70
+3.3V 72
+3.3V 74
Vbus
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
GND +5V
+12V GND
11* : LVDS Panel Connector
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 N/A 3 +3.3V
6 LVDS_A_DATA0# 5 N/A
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
* eDP Connector
(on the Backside of PCB)
12 : Backlight Volume Control
(BLT_VOL1)
PIN
7
6
5
4
3
2
1
1
13 : Inverter Power Control Wafer
(BLT_PWR1)
PIN
6
5
4
3 CON_LBKLT_CTL
2
1
1
14 : eDP Inverter Power Control Wafer
1
(EDP_BLT_PWR1)
1
15 : Backlight Power Select
(LCD_BLT_VCC) (BKT_PWR1)
1-2: LCD_BLT_VCC: +5V
2-3: LCD_BLT_VCC: +12V
4-5: LCD_BLT_VCC: DC_IN
* PD (Panel Detection): Connect this
pin to LVDS Panel's Ground pin to
detect Panel detection.
PIN Signal Name
1 40
40 NA
39 LCD_BLT_VCC
38 LCD_BLT_VCC
37 LCD_BLT_VCC
36 LCD_BLT_VCC
35 SMB_CLK_MAIN
34 SMB_DATA_MAIN
33 eDP_BKLTCTL_R
32 eDP_BKLTEN
4 0
1
31 GND
30 GND
29 GND
28 GND
Signal Name
27 eDP_HPD_CON
26 GND
GND
25 GND
GND
24 GND
23 GND
BLT_DW
22 NA
21 LCD_VCC
BLT_UP
20 LCD_VCC
PWRDN
19 LCD_VCC
18 LCD_VCC
GPIO_VOL_DW
17 GND
16 eDP_AUX#_CON
GPIO_VOL_UP
15 eDP_AUX_CON
14 GND
13 eDP_TX0_CON
12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
Signal Name
9 eDP_TX#1_CON
8 GND
LCD_BLT_VCC
7 eDP_TX2_CON
LCD_BLT_VCC
6 eDP_TX#2_CON
5 GND
CON_LBKLT_EN
4 eDP_TX3_CON
3 eDP_TX#3_CON
2 GND
GND
1 NA
GND
PIN Signal Name
6 LCD_BLT_VCC
5 LCD_BLT_VCC
4 CON_LBKLT_EN
3 CON_LBKLT_CTL
2 GND
1 GND
1
