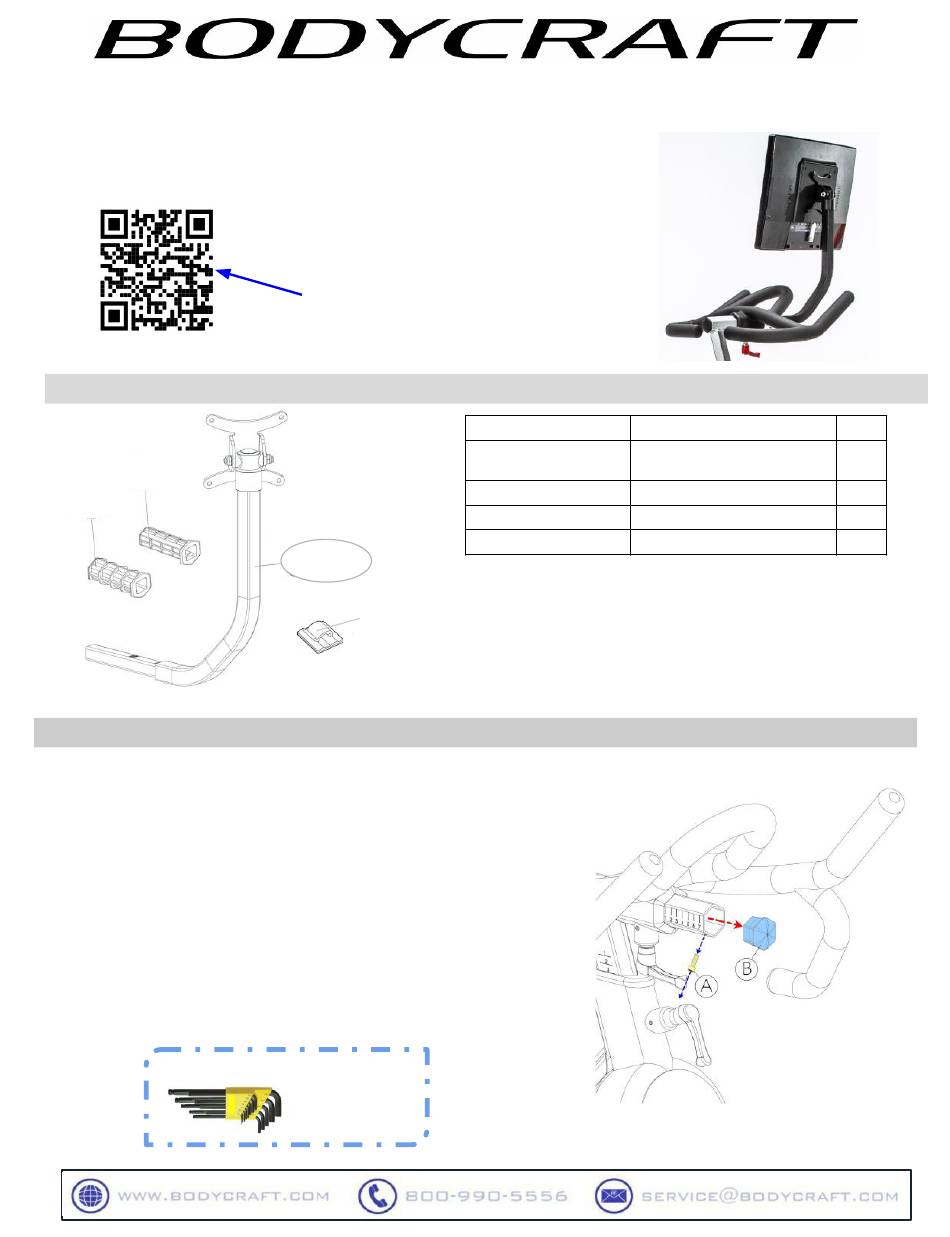

Assembled Parts List - SP Bracket
10b
10a
Product Assembly
STEP 1: Remove Cap
a.
Remove the existing Cap Screw (M5 x P1.0 x 10mm L ) (A) below the
handlebar tube, on the right or left side, using a 4mm Allen Wrench. Set
aside for reinstallation during STEP 3.
b.
Then continue by pulling out the existing Plastic Hex Cap (B) from
the handlebar tube.
NOTE: This Plastic Hex Cap (B) will no longer be needed, but you might
want to keep for future use if the SP-Bracket is taken off.
Recommended Tool:
SP-Bracket
for Indoor Training Cycles
Owner's Manual
To see in
FULL COLOR
& additional information,
scan this QR code.
001-ASM
14
ALLEN WRENCH
4mm METRIC
Part #
SP-Bracket-001-ASM
SP-Bracket-010a
SP-Bracket-010b
SP-Bracket-014
NOTE:
●
SPX or SPX-Mag use part #10a (larger Hexagon Sleeve)
●
SPR or SPT-Mag use part #10b (smaller Hexagon Sleeve)
1
Assembly Parts List
Bracket Frame Assembly
Hexagon Sleeve - Large
Hexagon Sleeve - Small
Cable Clip Mount
SP-Bracket v1.5
QTY
1
1
1
5
Advertisement
Table of Contents
Related Manuals for BodyCraft SP-Bracket-001-ASM
Summary of Contents for BodyCraft SP-Bracket-001-ASM
- Page 1 To see in FULL COLOR & additional information, scan this QR code. Assembled Parts List - SP Bracket Part # Assembly Parts List SP-Bracket-001-ASM Bracket Frame Assembly SP-Bracket-010a Hexagon Sleeve - Large SP-Bracket-010b Hexagon Sleeve - Small SP-Bracket-014 Cable Clip Mount...
- Page 2 Product Assembly STEP 2: Install Hexagon Sleeve Insert the correct Hexagon Sleeve into the handlebar tube, aligning the hole to match the side of the Cap Screw during STEP 3a. ● SPX or SPX-Mag use part #10a (larger Hexagon Sleeve) ●...
- Page 3 Product Assembly - Connect-22 Cable Routing per Machine CAUTION: It is highly suggested to follow the steps below to secure the cable away from moving parts. Do not let the cable dangle straight down to the floor. STEP 5: How to Install Cable Clip Mounts Clean surface with mild spray soap or a window cleaner and dry with a 100% cotton rag.
- Page 4 Detailed Parts List & Parts Exploded View Part # Detailed Parts List SP-Bracket-001 Bracket Frame SP-Bracket-002 Universal Joint SP-Bracket-003 Flat Washer, CP 8 x D18 x 1.5t SP-Bracket-004 Nut, UCP M8 SP-Bracket-005 Top Cap SP-Bracket-006 Axle - Black SP-Bracket-007 Vesa 100 Bracket SP-Bracket-008 Washer, SS φ8 x φ22 x 2t SP-Bracket-009...
