1.14.2
RS232 Serial Port
Board Type:
RS232 Port Count:
Communication Distance:
Data Bits:
Stop Bits:
Parity:
Baudrate:

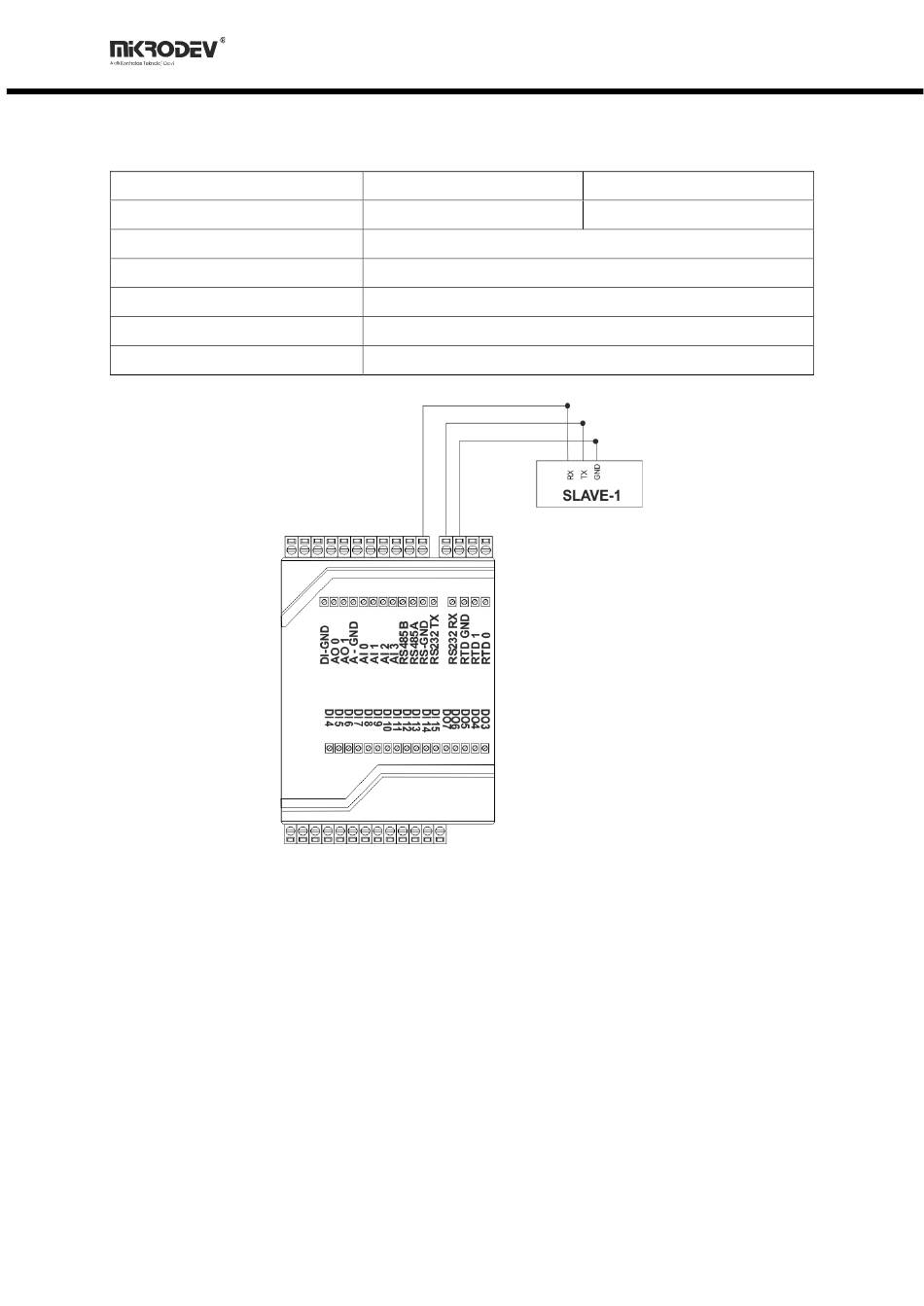

Figure 16 RTU300 RS232 Serial Port Connection Diagra
21
GA1, GA5, GA6
1 Port
10 m
7-8
1-2
None-Even-Odd
300 bps to 200 kbps
GA2
1 Port (with flow control)
RTU300 SERIES – HARDWARE MANUAL
