1.10 Digital Outputs

Board Type:
Module Output:
Module Output Type:
Voltage Range:
Max. Output Current:
Isolation:

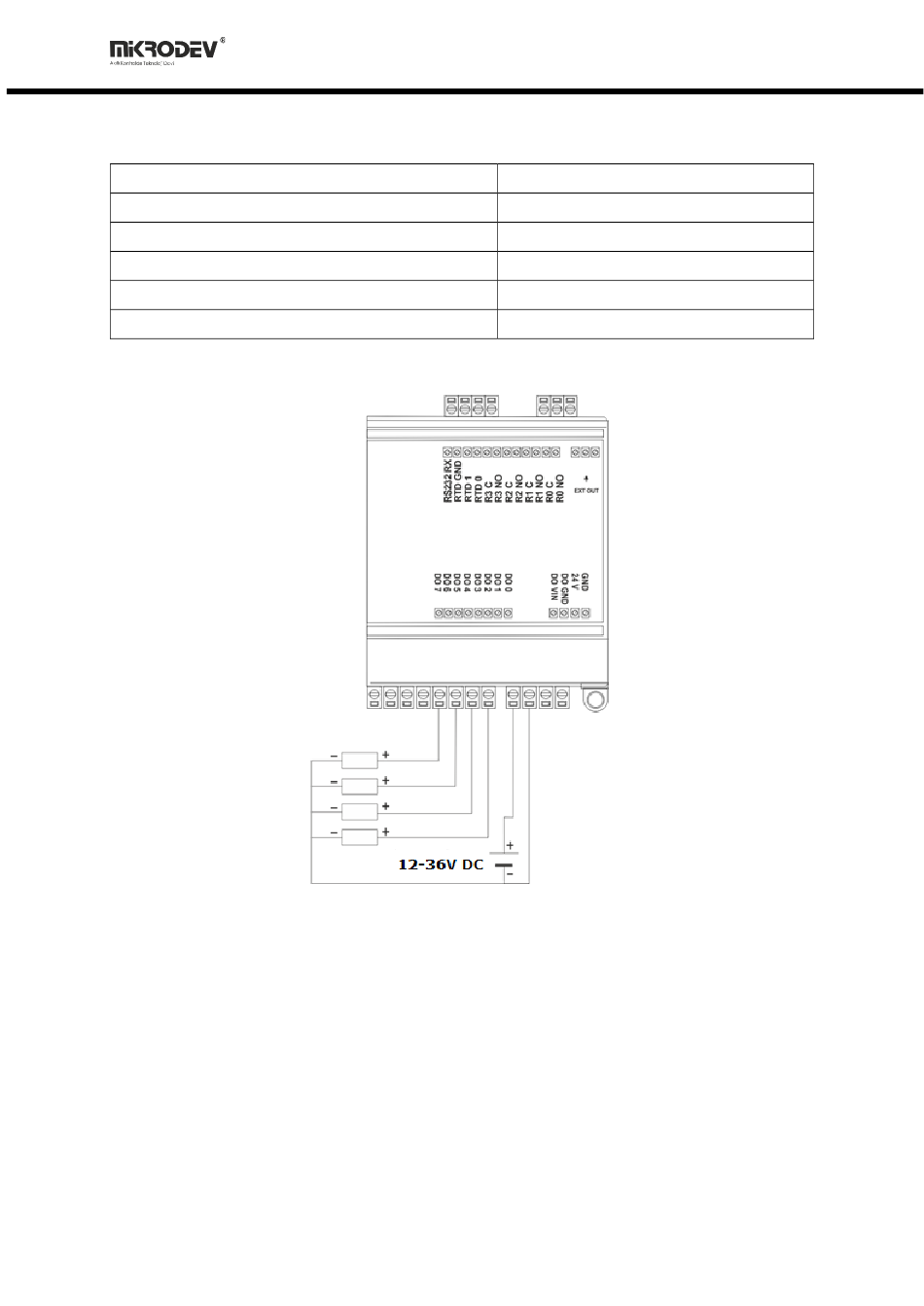

Figure 11 RTU300 Digital Output Connection Diagram
16
GA1, GA2, GA4, GA5, GA6, GA7
8 Channel, Mosfet Output
PNP Transistor
12-36V DC
2A @ 30V DC
Optical
RTU300 SERIES – HARDWARE MANUAL
