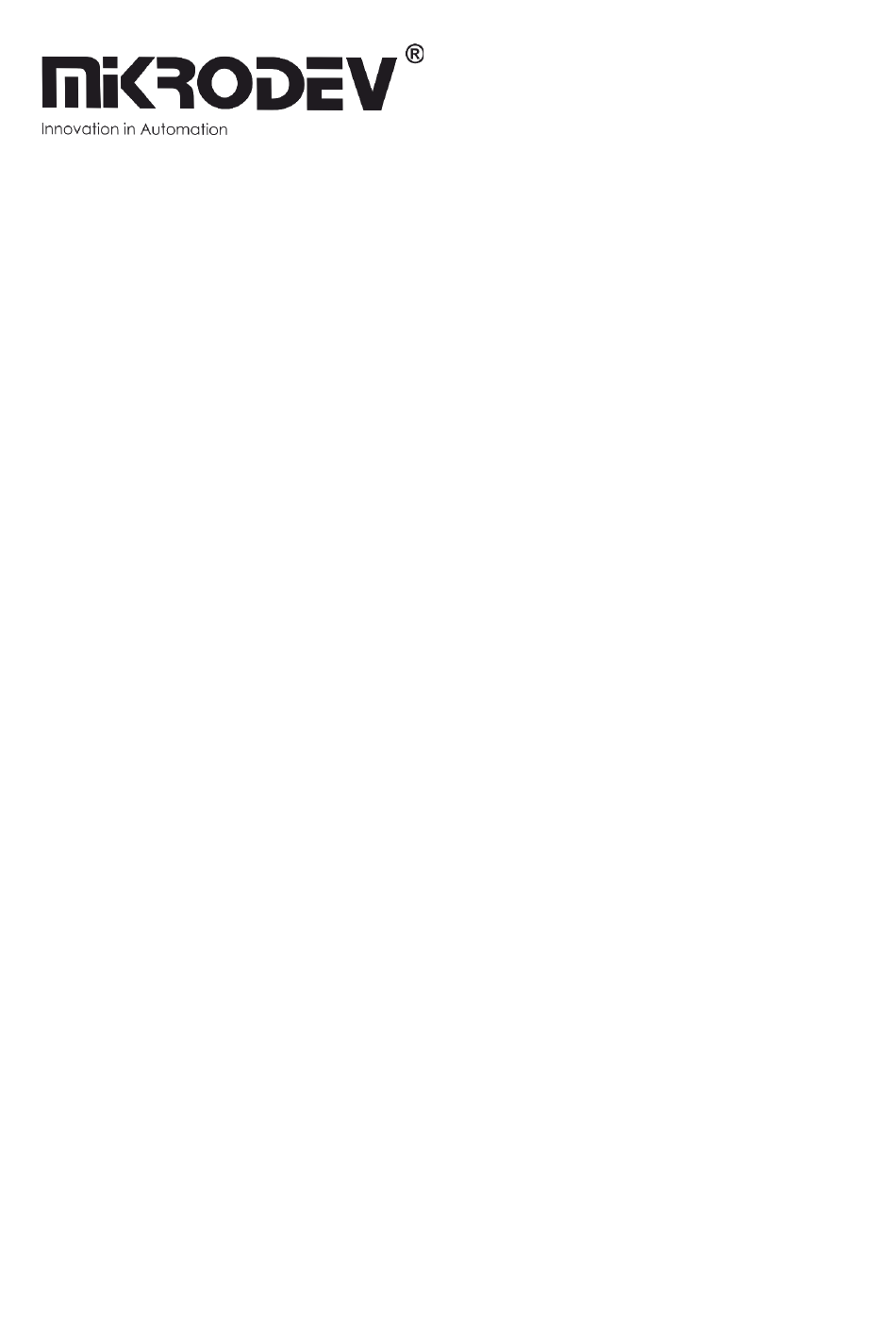

DM100
HARDWARE MANUAL
• DM100
RTU Series
04 / 2022
MIKRODEV_HM_DM100_EN
v1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTU Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MIKRODEV RTU Series

  • Page 1 DM100 HARDWARE MANUAL • DM100 RTU Series 04 / 2022 MIKRODEV_HM_DM100_EN v1.4...
  • Page 2: Table Of Contents

    CONTENTS FIGURES LIST ..........................2 Preface ............................3 About Mikrodev ..........................4 WARNING! ............................5 DM100 GENERAL INFORMATION................ 6 GC0 Board Type Physical Interfaces ............. 6 GC3 Board Type Physical Interfaces ............. 7 General Device Specifications ..............8 INSTALLATION INFORMATION................9 Rail Installation ..................
  • Page 3: Figures List

    FIGURES LIST Figure 1 GC0 Board Type Connector and Physical Interface ......... 6 Figure 2 GC3 Board Type Connector and Physical Interface ......... 7 Figure 3 Mounting ....................9 Figure 4 Expansion Installation ................10 Figure 5 Power Connection Diagram ................11 Figure 6 RS485 Serial Port Connection Diagram ............12 Figure 7 RS232 Serial Port Connection Diagram ............13 DM100 SERIES –...
  • Page 4: Preface

    Preface Mikrodev DM100 RTU series are programmable control devices that are used in a wide range of applications from process automation to building automation, from machine automation to telemetry applications. In this document, you can find information about the hardware specifications of Mikrodev DM100 series RTUs.
  • Page 5: About Mikrodev

    MIKRODEV is one of the few companies in the world that has its own designed IEC 61131-3 compliant library for its programmable logic control devices. In addition, the open, flexible, programmable SCADA solution developed by MIKRODEV is also available to customers.
  • Page 6: Warning

    ✓ Make sure that the environment in which your device is being used is free of moisture, electric shock, vibration and dust. ✓ Pay attention to the supply voltage and the connections of the product. Mikrodev is not responsible for any issues due to power failure since there is no auxiliary supply (UPS) on the device.
  • Page 7: Dm100 General Information

    DM100 GENERAL INFORMATION 1.1 GC0 Board Type Physical Interfaces Figure 1 GC0 Board Type Connector and Physical Interface Ethernet Port RS485 Port 1 Connections USB Port SD Card Slot System Power LED Serial Port GND Connections System Running LED RS485 Port 2 Connections System Error LED Serial Port GND Connections System Connection Status LED...
  • Page 8: Gc3 Board Type Physical Interfaces

    1.2 GC3 Board Type Physical Interfaces Figure 2 GC3 Board Type Connector and Physical Interface Ethernet Ports SD Card Slot USB Port RS485 Port 1 Connections System Power LED RS485 Port 1 GND Connections System Running LED RS485 Port 2 Connections System Error LED RS485 Port 2 GND Connections System Connection Status LED...
  • Page 9: General Device Specifications

    1.3 General Device Specifications SPECIFICATION ITEM DESCRIPTION Processor Architecture ARM Cortex A7 Processor Adressing Architecture Little Endian Addressing Supply 24 VDC (12-48 VDC) Electrical Power <10W @ 24V DC Real Time Clock Integrated Operating Temperature -25…+75 C Enviromental Storage Temperature -30…+80 C Conditions Humidity...
  • Page 10: Installation Information

    INSTALLATION INFORMATION 2.1 Rail Installation DIN Rail Mountage First, the upper part of the device is mounted on the DIN rail. Then, with the help of the springs behind the device, when a lightly force is applied to the lower part, the device locates into the DIN rail easily and the montage is completed.
  • Page 11: Expansion Installation

    2.2 Expansion Installation The DM100 product and its extensions are mounted by sliding over the rail in such a way that the connectors correponds. Figure 4 Expansion Installation DM100 SERIES – HARDWARE MANUAL...
  • Page 12: Connection Diagrams

    CONNECTION DIAGRAMS 3.1 Supply Connection Board Type: GC0,GC3 Supply: 12-48 VDC, Protected Power: < 13 W Figure 5 Power Connection Diagram DM100 SERIES – HARDWARE MANUAL...
  • Page 13: Rs485 Serial Port

    3.2 RS485 Serial Port Board Type: GC0, GC3 RS485 Port Count: 2 Port Maximum Slave Counts: Limited to Hardware Isolation: ESD Protection, 8 kV Direct, 25 kV Air Discharge Communication Distance: 1000 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 6 RS485 Serial Port Connection Diagram DM100 SERIES –...
  • Page 14: Rs232 Serial Port

    3.3 RS232 Serial Port Board Type: RS485 Port Count: 1 Port Communication Distance: 10 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 7 RS232 Serial Port Connection Diagram DM100 SERIES – HARDWARE MANUAL...
