1.9 Digital Inputs
Board Type:
Module Input:
Voltage Range:
ON Voltage Level:
OFF Voltage Level:
Input Impedance:
Isolation:
OFF to ON Response:
ON to OFF Response:

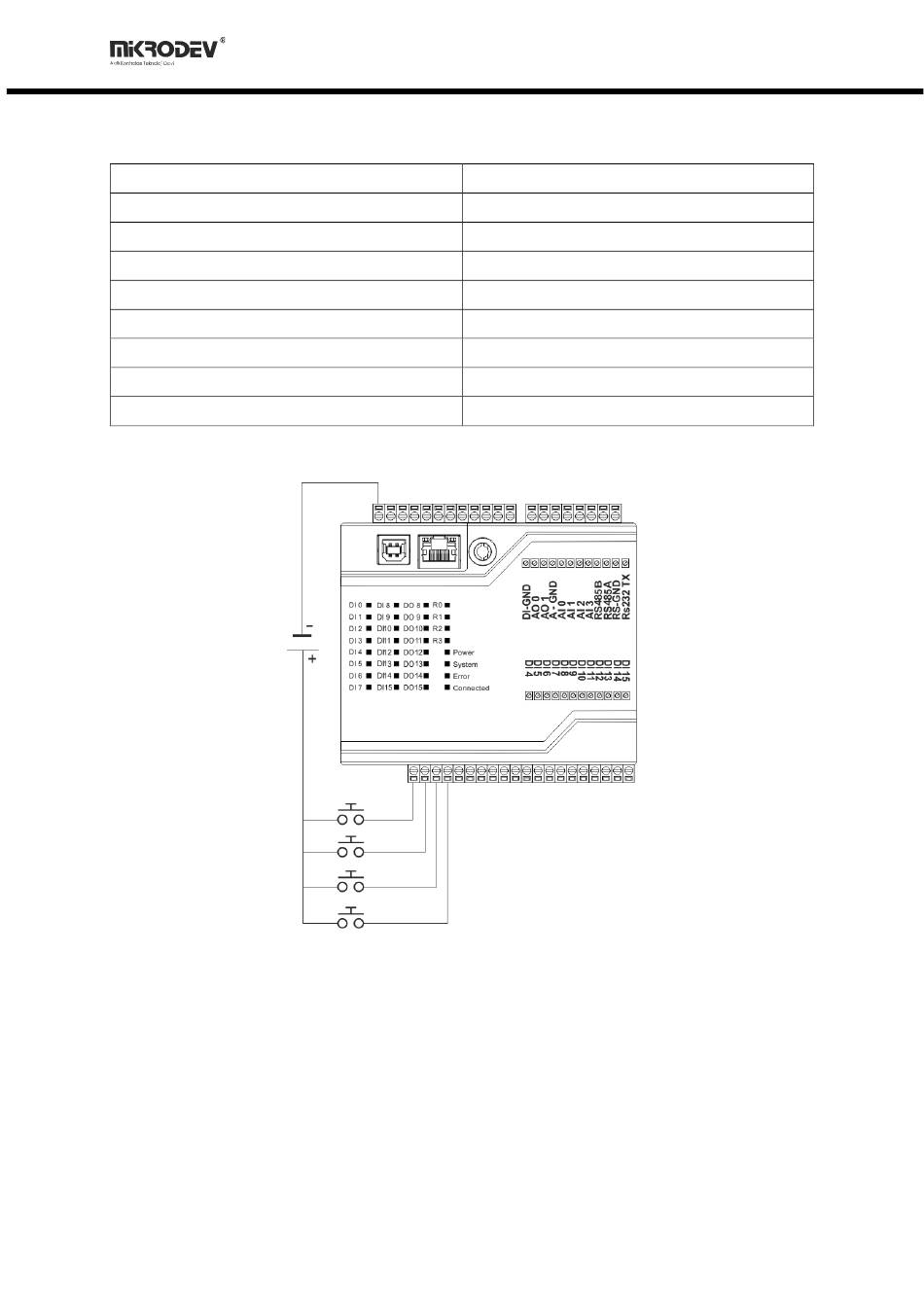

Figure 10 RTU300 Digital Input Connection Diagram
15
GA1, GA2, GA4, GA5, GA6, GA7
16 Channel, PNP
0-36V DC
12-36V DC
0-10V DC
>2M
Optical
20 us
90 us
RTU300 SERIES – HARDWARE MANUAL
