1.13 Analog Outputs

Board Type:
Module Output:
Analog Output Type:
Analog Output Resolution:
Current Output Precision:
Common Output GND:

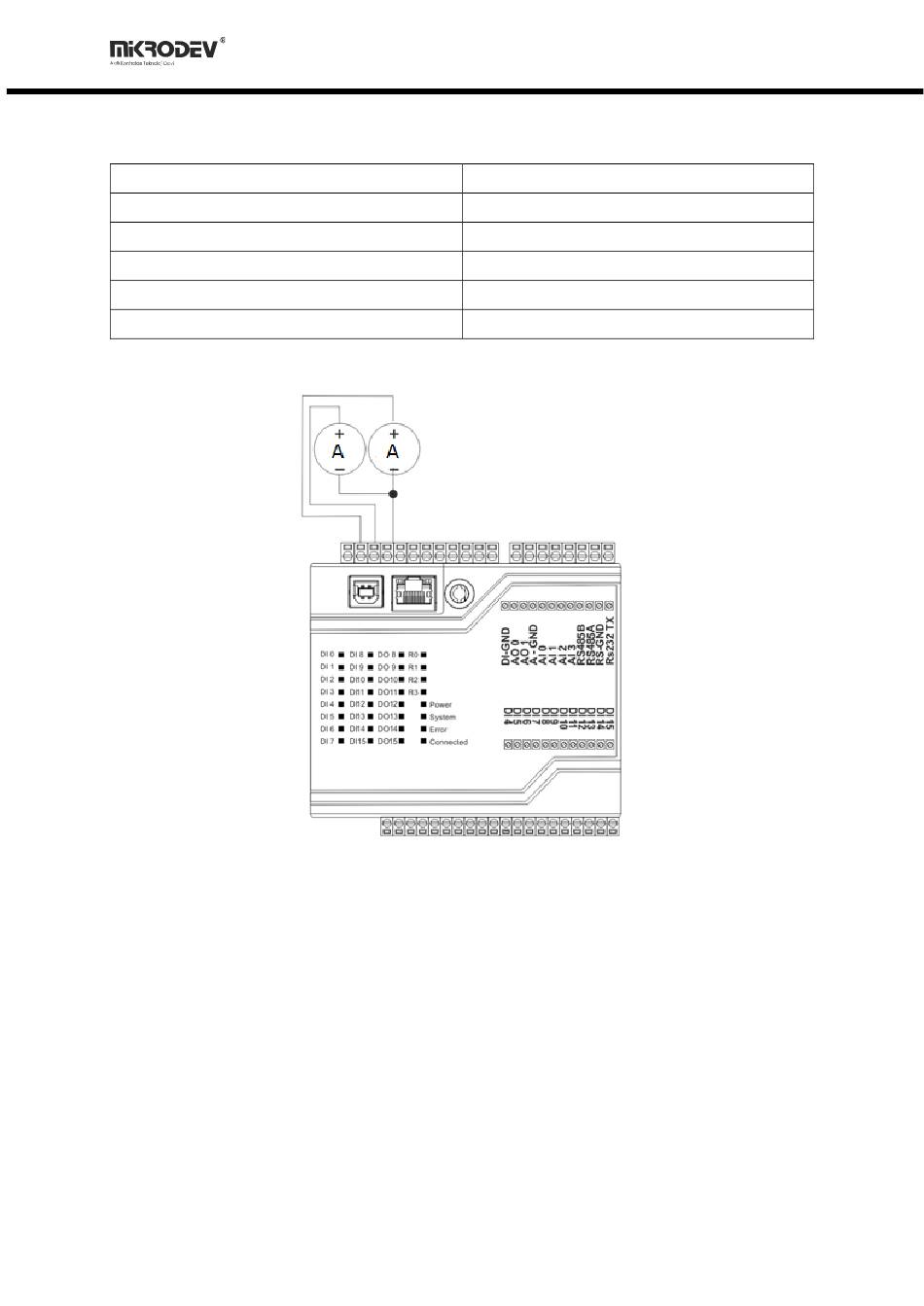

Figure 14 RTU300 Analog Output Connection Diagram
19
GA1, GA4
2 Channel
0-20 mA, 4-20 mA
12 Bit
%1 Precision
1 GND (2 Point / Common)
RTU300 SERIES – HARDWARE MANUAL
