POWER VISION 3
Installation Guide for: PV3-15-03
Model Coverage:
2021-2022 Harley Davidson Touring Models
2021-2022 Harley Davidson Pan America
2021-2022 Harley Davidson Sportster S
PARTS LIST
1

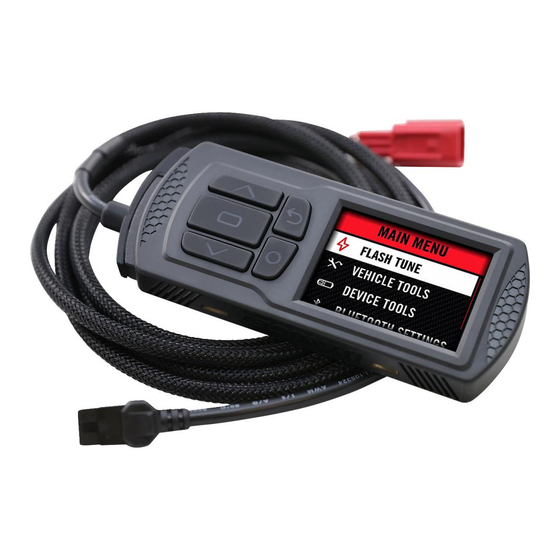

POWER VISION 3
1
REFLASH HARNESS
1
USB CABLE
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
2
VELCRO
2
DYNOJET DECAL
98200147.01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynojet PV3-15-03
Summary of Contents for Dynojet PV3-15-03
- Page 1 POWER VISION 3 Installation Guide for: PV3-15-03 Model Coverage: 2021-2022 Harley Davidson Touring Models 2021-2022 Harley Davidson Pan America 2021-2022 Harley Davidson Sportster S PARTS LIST POWER VISION 3 VELCRO REFLASH HARNESS DYNOJET DECAL USB CABLE PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION...
- Page 2 INTRODUCTION Thank you for purchasing the Power Vision from Dynojet RETURN Research. At Dynojet, our mission is to make every ride the ultimate ride. The Power Vision allows you to tune SCROLL your stock ECU to achieve optimal performance from ENTER your vehicle.
- Page 3 Route the Power Vision cable away from any moving or DIAGNOSTIC PORT hot parts. Dynojet recommends using zip ties to secure the cable to existing non-moving components. Secure the Power Vision to the vehicle using the supplied Velcro or mounting hardware.
-
Page 4: Getting Started
From the Main Menu, select Flash Tune. Select the tune fi le (.djt) and press Enter to view the Tune Info. Note: The Dynojet tune fi le (.djt) is a tune fi le which is different (better than stock performance or the necessary fi... - Page 5 VIEWING THE VEHICLE INFORMATION This menu allows you to view the device status (paired/not paired), VIN #, Model ID, ECU serial number, tune compat, and checksum compat. Select Vehicle Tools>Vehicle Information. VIEWING THE DIAGNOSTIC CODES This menu allows you to read and clear diagnostic trouble codes.
-
Page 6: Viewing The Device Information
LOGGING DATA The Power Vision is a powerful logging tool to diagnose running issues. Use the Power Vision to log all vehicle operating data and review the data in the Power Core software. Troubleshoot an issue such as knock, speed/RPM limitation, throttle blade closure and more by keeping the Power Vision mounted to view and record channels. -
Page 7: Updating The Device
Click Update to load the current fi rmware. If the Update button is grayed out, your Power Vision already has the latest fi rmware. Click Restore to reload all original Dynojet tune and stock fi les. Click Get Tunes to open the Dynojet Tune Finder. Follow the instructions to Upload your PV_Info.txt fi... - Page 8 2191 MENDENHALL DRIVE, NORTH LAS VEGAS, NV 89081 - 800-992-4993 - DYNOJET.COM © 2019-2022 DYNOJET RESEARCH ALL RIGHTS RESERVED...
