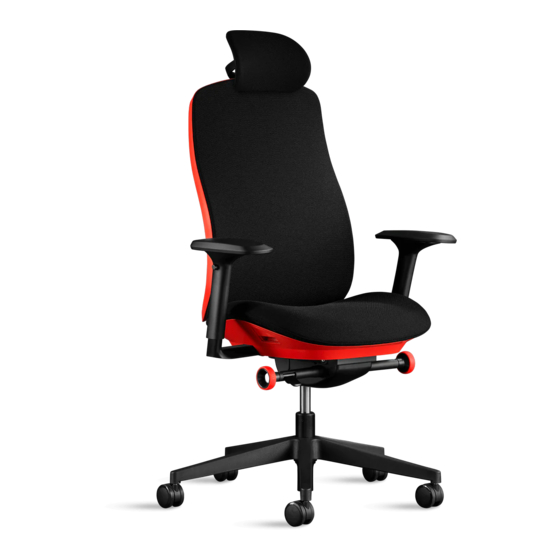

HermanMiller Vantum Disassembly Instructions

Table of Contents

Download this manual

HermanMiller

Vantum chair disassembly Instructions

How to disassemble Vantum chair

Tools Required

Power driver

Ratchet

Nylon cap

#2 Mallet

Step 2:

2.1 Remove thoracic by sliding the mount upwards.

HermanMiller

13mm & 10mm

Hex Socket Bits

Allen Wrench

Cylinder Iift

T-45

Flat Head

Torx Bit

Screw Driver

off Tool

Step 1:

1.1 Lift headrest to its highest position.

1.2 Insert allen wrench into hole and press.

1.3 While pressing, remove headrest by pulling out.

Step 3:

3.1 Remove Lumbar by tilting the part.

1BVRRX rev A

Assembly Instructions

Table of Contents

Do you have a question about the Vantum and is the answer not in the manual?

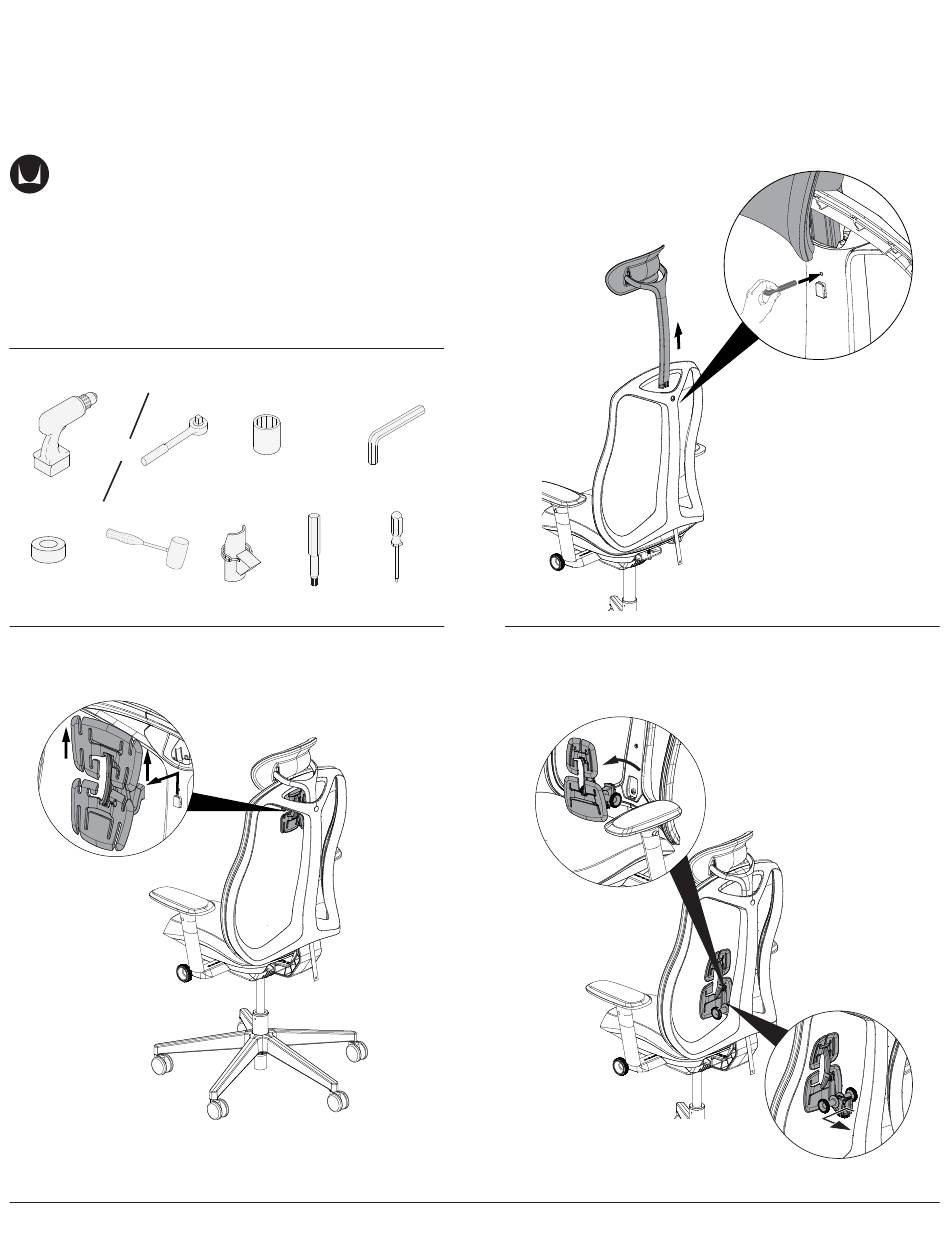

Page 1 1.1 Lift headrest to its highest position. Vantum chair disassembly Instructions 1.2 Insert allen wrench into hole and press. 1.3 While pressing, remove headrest by pulling out. How to disassemble Vantum chair Tools Required 13mm & 10mm Power driver Ratchet...
Page 2 7.1 While Releasing the seat handle push seat forward and depress 6.2 Remove Arms. two tabs at back of seat with flat head screw driver. 7.2 Alternate back and forth depressing left and then right hand tabs until seat slides off the tilt control. HermanMiller 1BVRRX rev A Assembly Instructions...
Page 3 8.1 Takeout the seat from the tilt assembly. 9.1 Turn lever counterclock wise to activate the cylinder. Step 10: Step 11: 10.1 Place the lift-off tool on the top edge of the cylinder. 11.1 Hit the lift-off tool with mallet. HermanMiller 1BVRRX rev A Assembly Instructions...
Page 4 Non marked components should be treated as mixed plastic. Ferrous metals can be identified using a small magnet for recycling. Non-ferrous metals should be separated and recycled separately. To disassemble product, reverse the above installation steps. HermanMiller 1BVRRX rev A Assembly Instructions...
